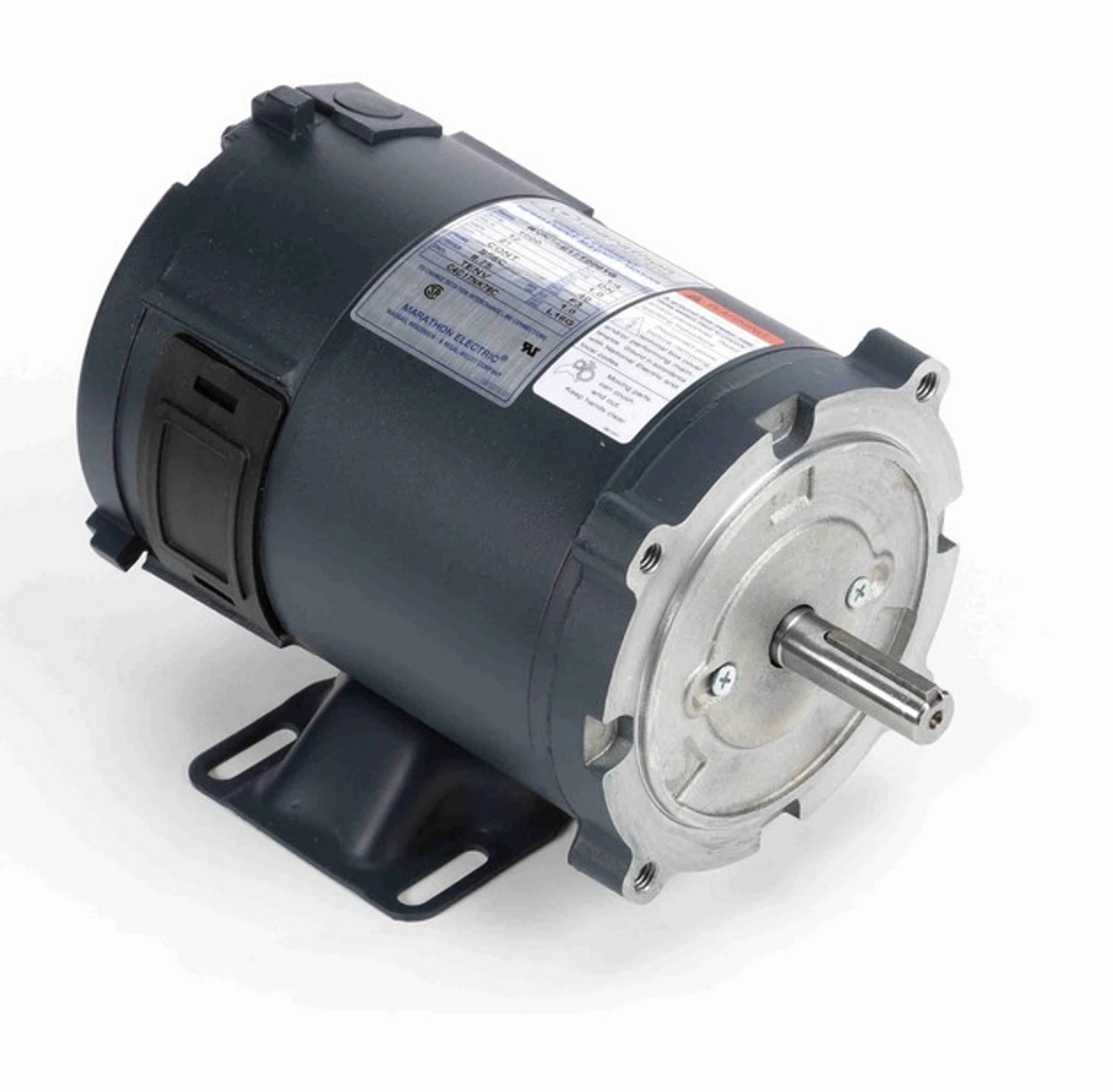

Z660 Marathon 1/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TENV (rigid Base)

• 1/4 hp 1750 RPM, 21 amps 12 Volts DC current.
• NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.0, Overload protection = None
• Rigid Base, Reversible rotation, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Battery voltage DC electric motor with a C-face mount. Shaft has keyway. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056E17T2001
