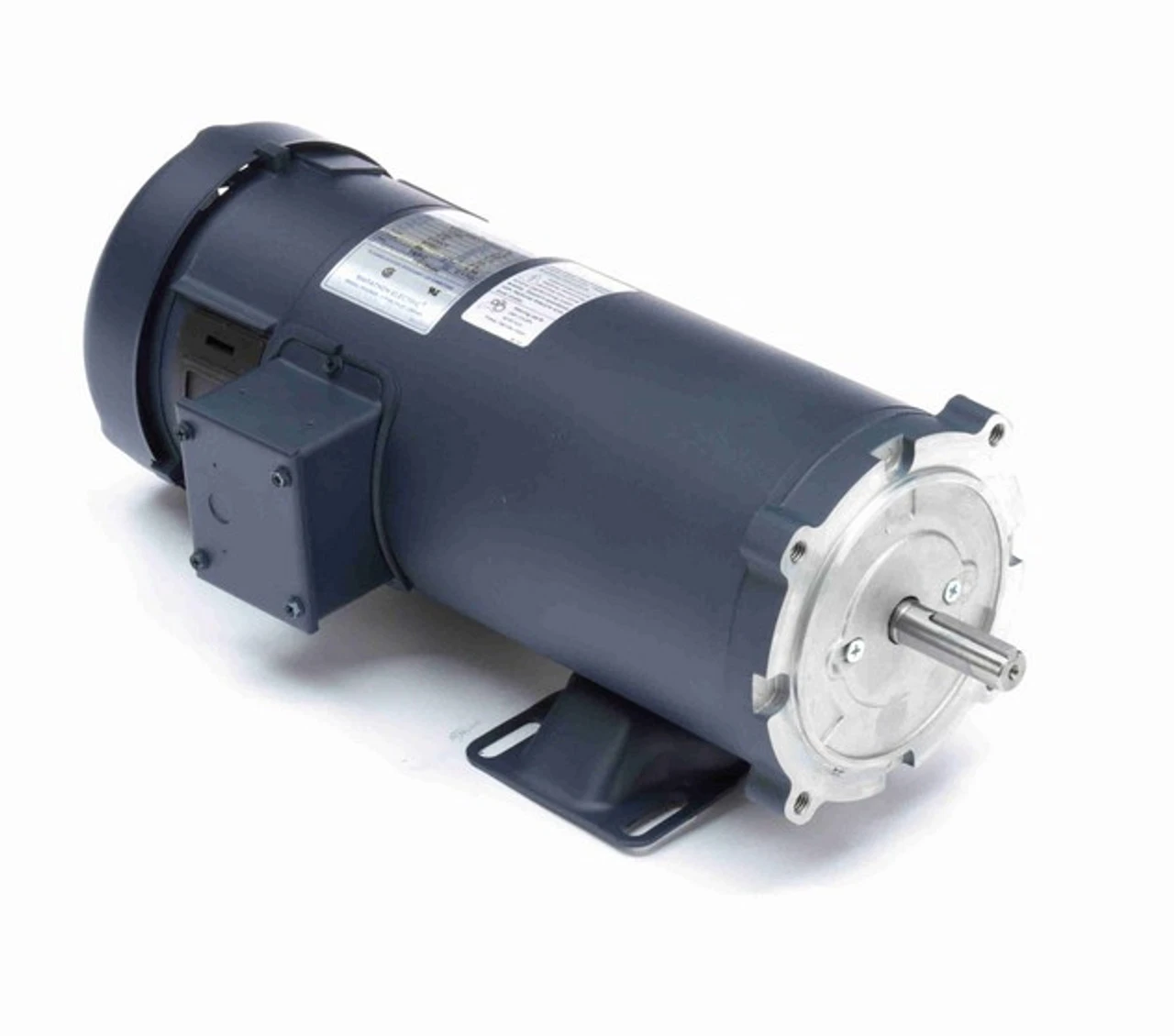

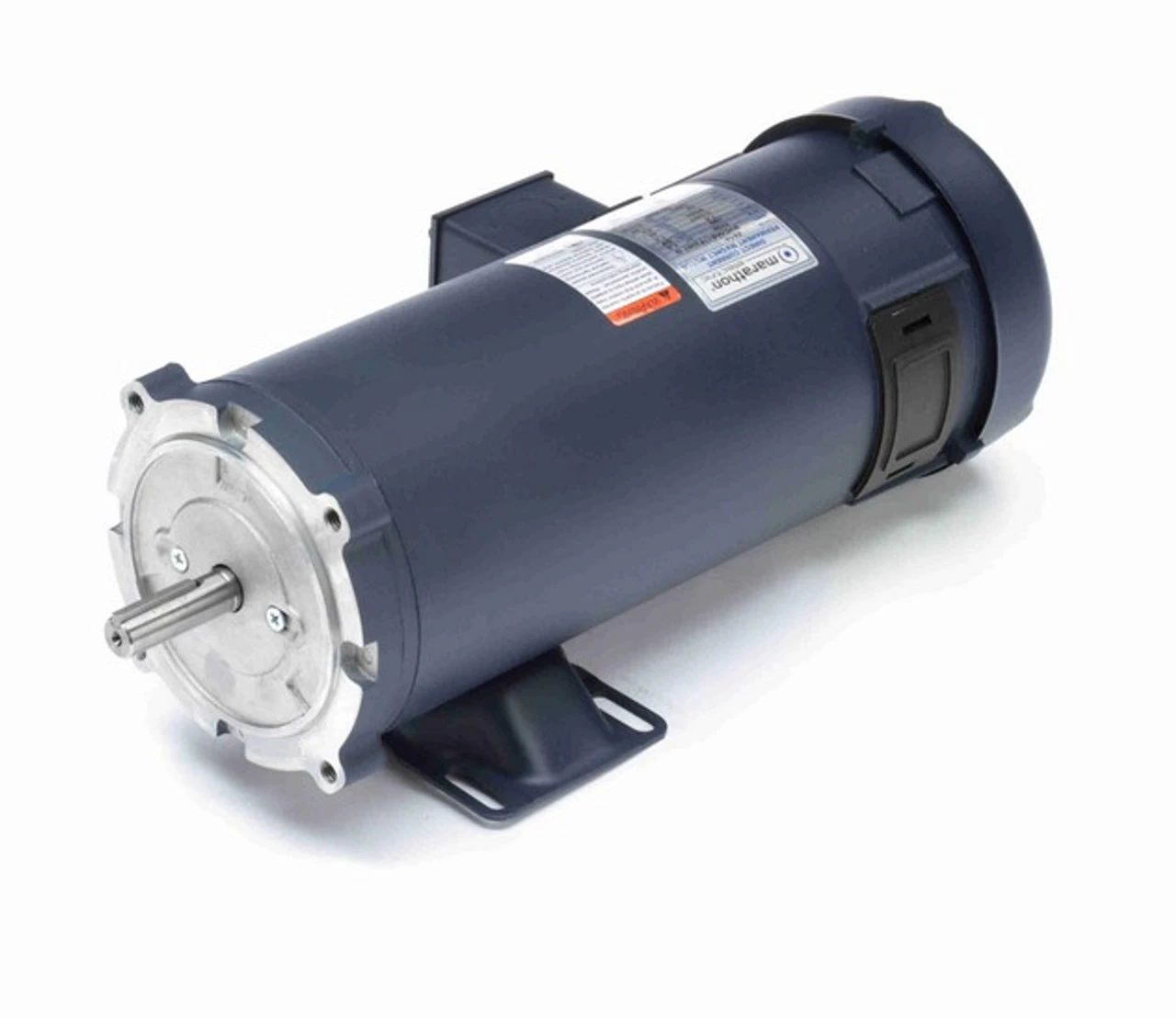

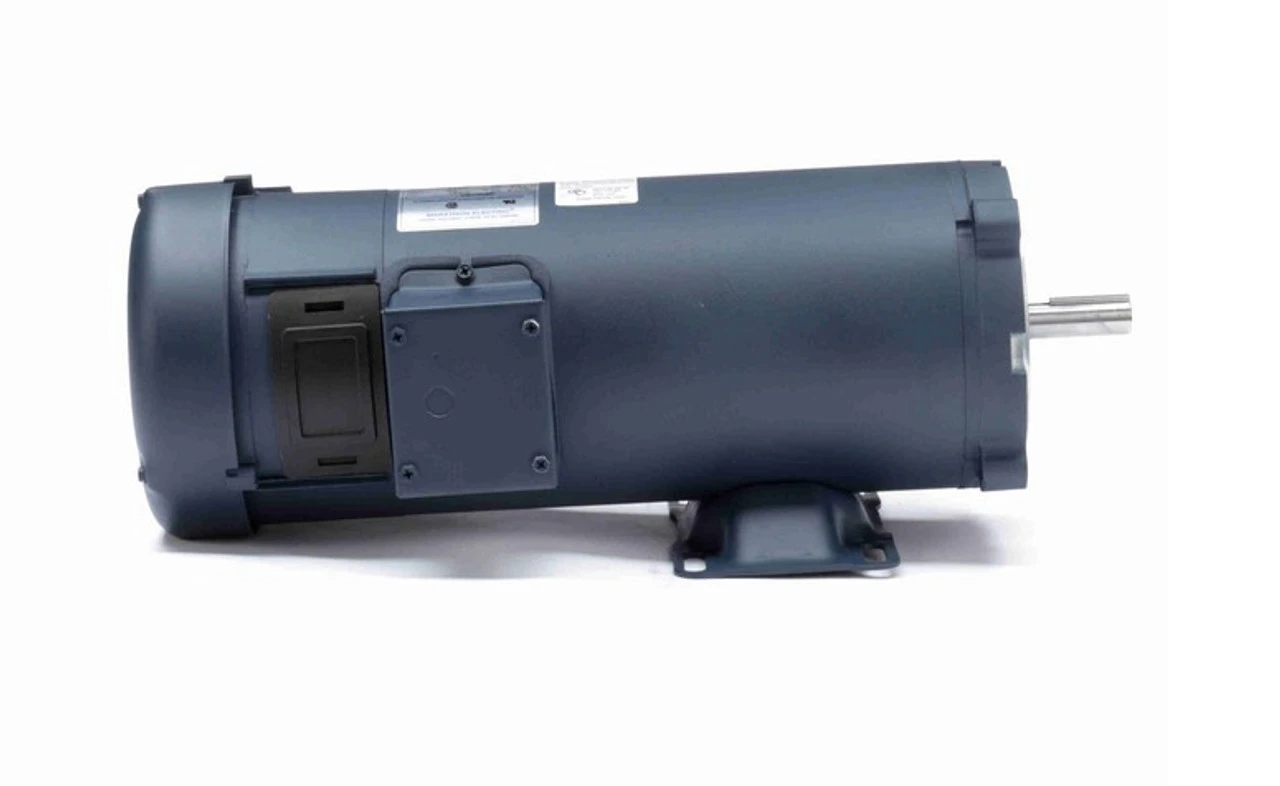

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

• 1 1/2 hp 1750 RPM, 7.6 amps 180 Volts DC current.
• NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.0, Overload protection = None
• Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056E17F2007
