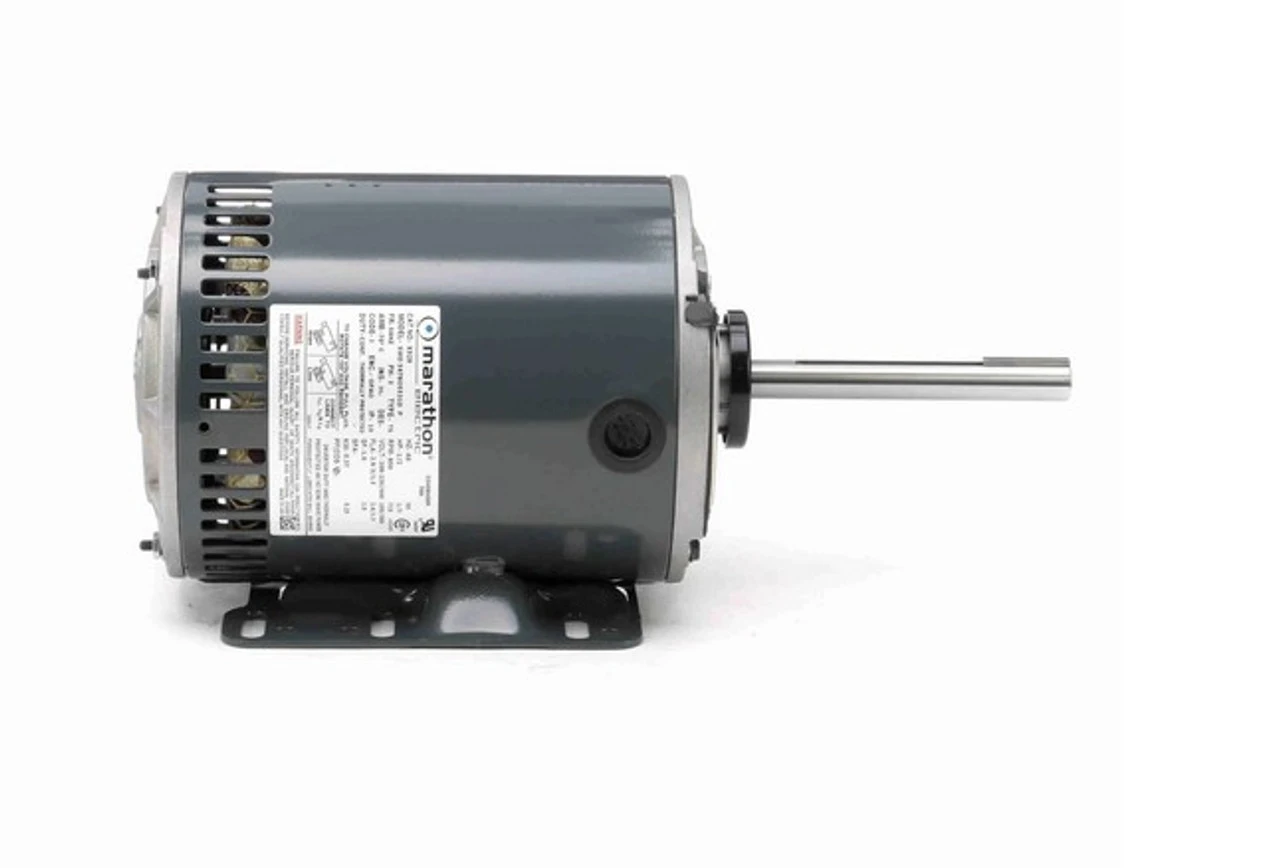

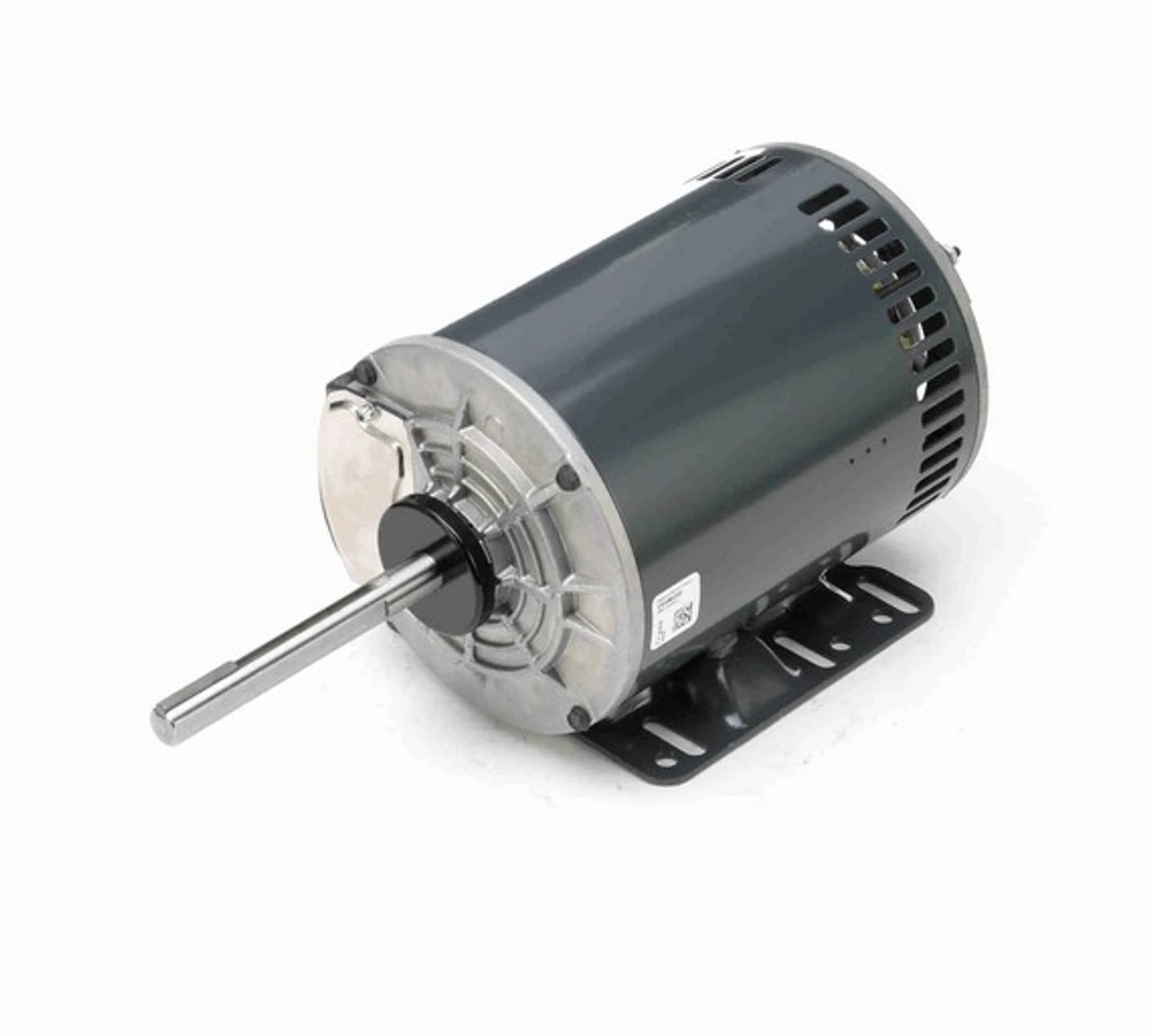

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor

• 1/2 hp 825 RPM, 2.9-3.0/1.5 amps, 208-230/460 Volts 60 Hz, 3-Phase

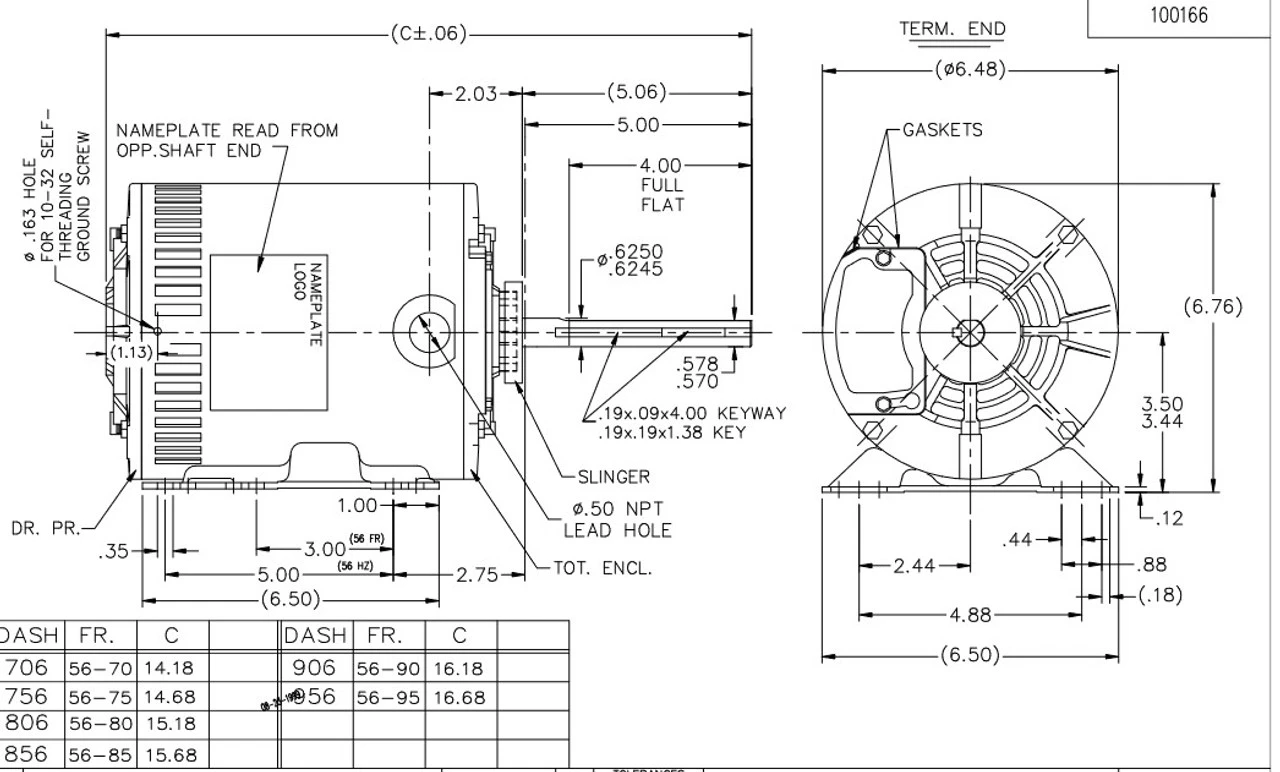

• NEMA 56HZ Frame Keyed Shaft 5/8″ Diameter x 5″
• Service Factor = 1.0, Thermal Protection = Automatic
• Rigid Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T8O5531
