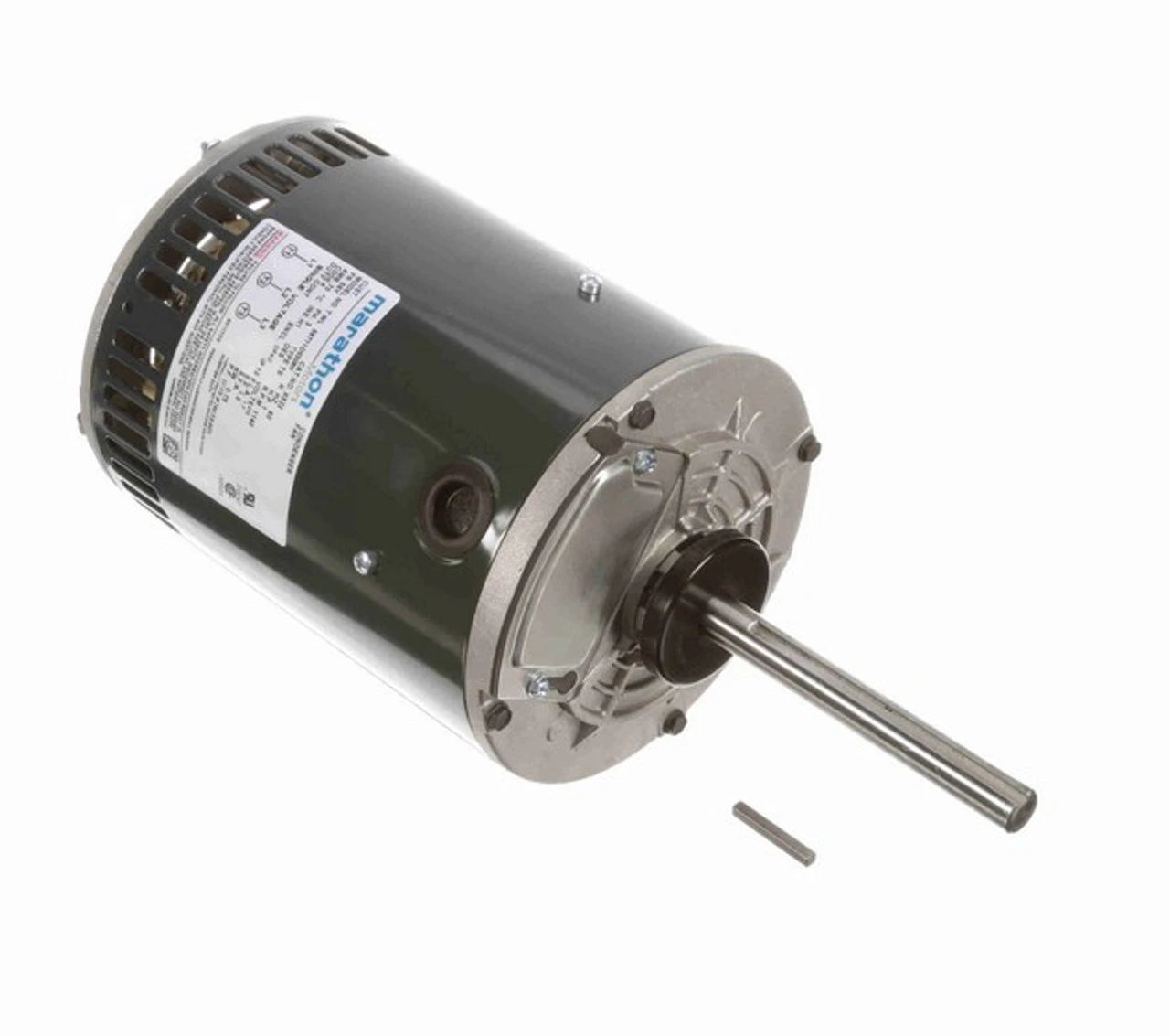

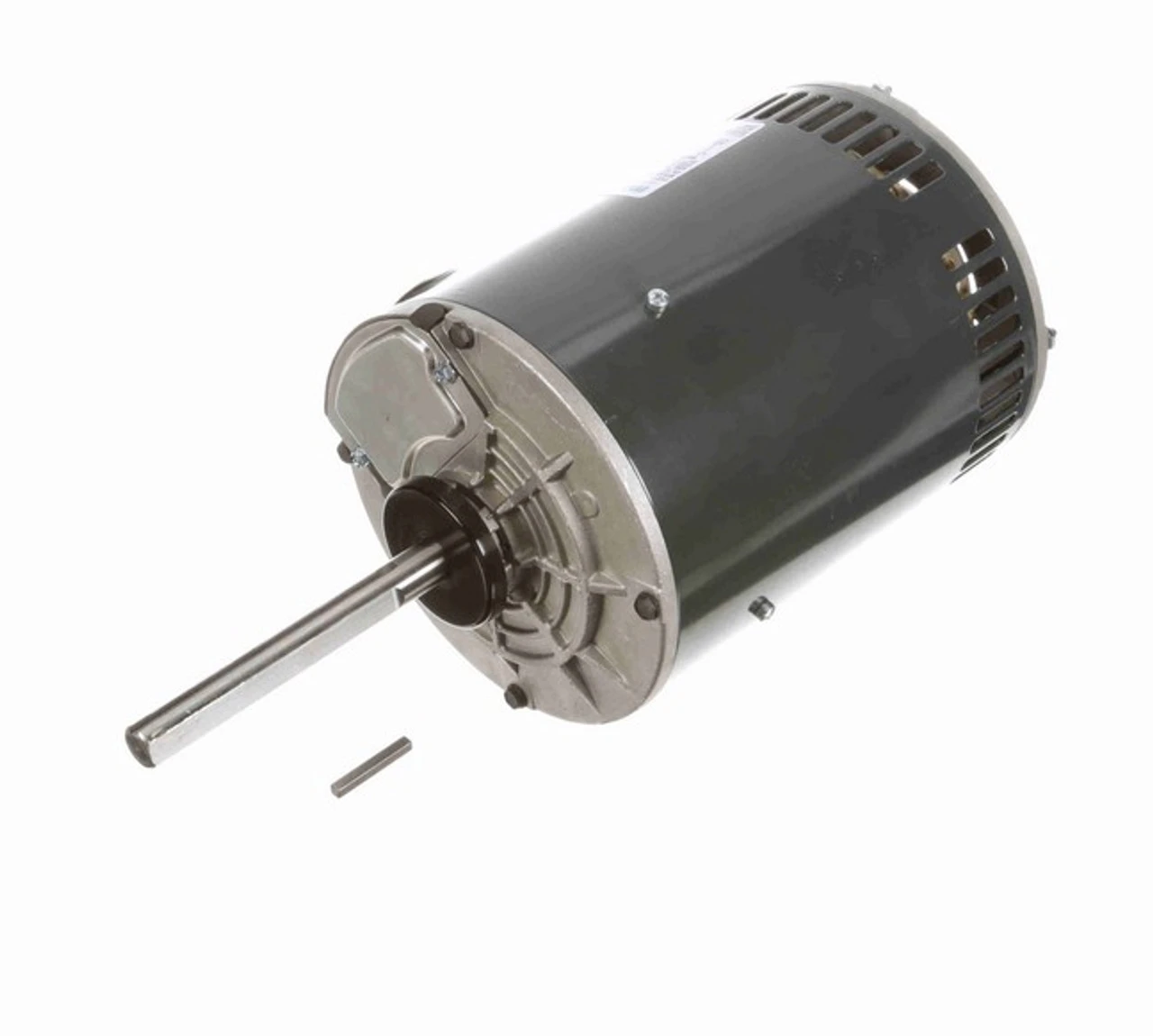

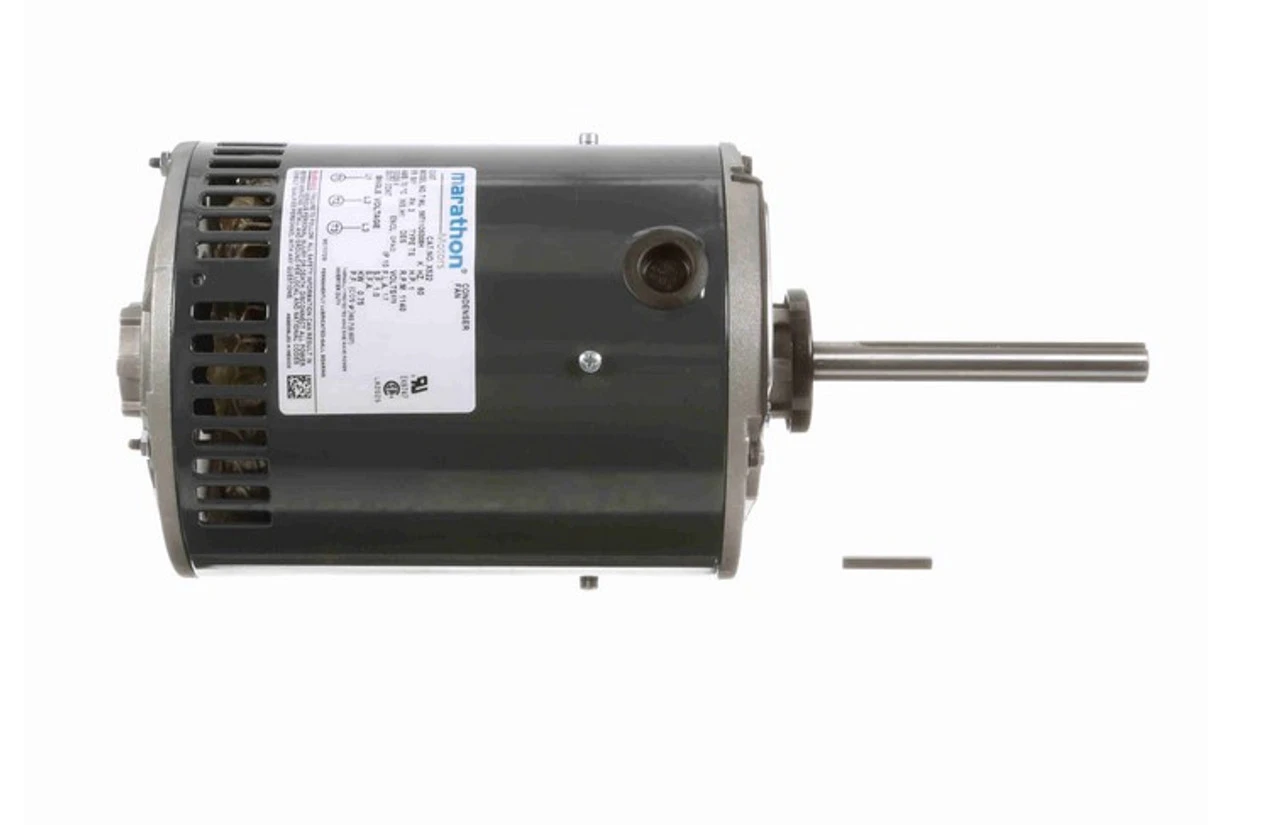

X522 Marathon 1 Hp 3-phase 575V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

• 1 hp 1075 RPM, 1.7 amps, 575 Volts 60 Hz, 3-Phase
• NEMA 56Y Frame Keyed Shaft 5/8″ Diameter x 5″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class H insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O5308
