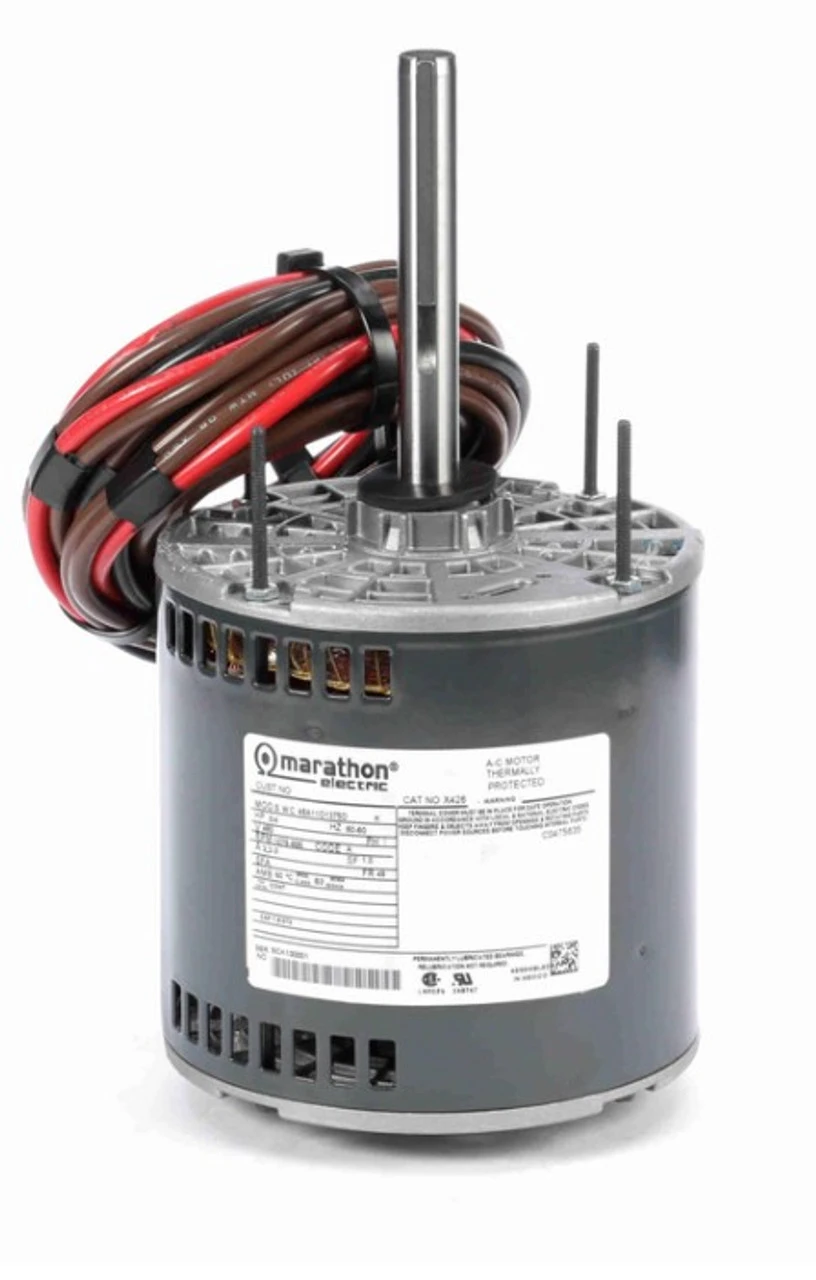

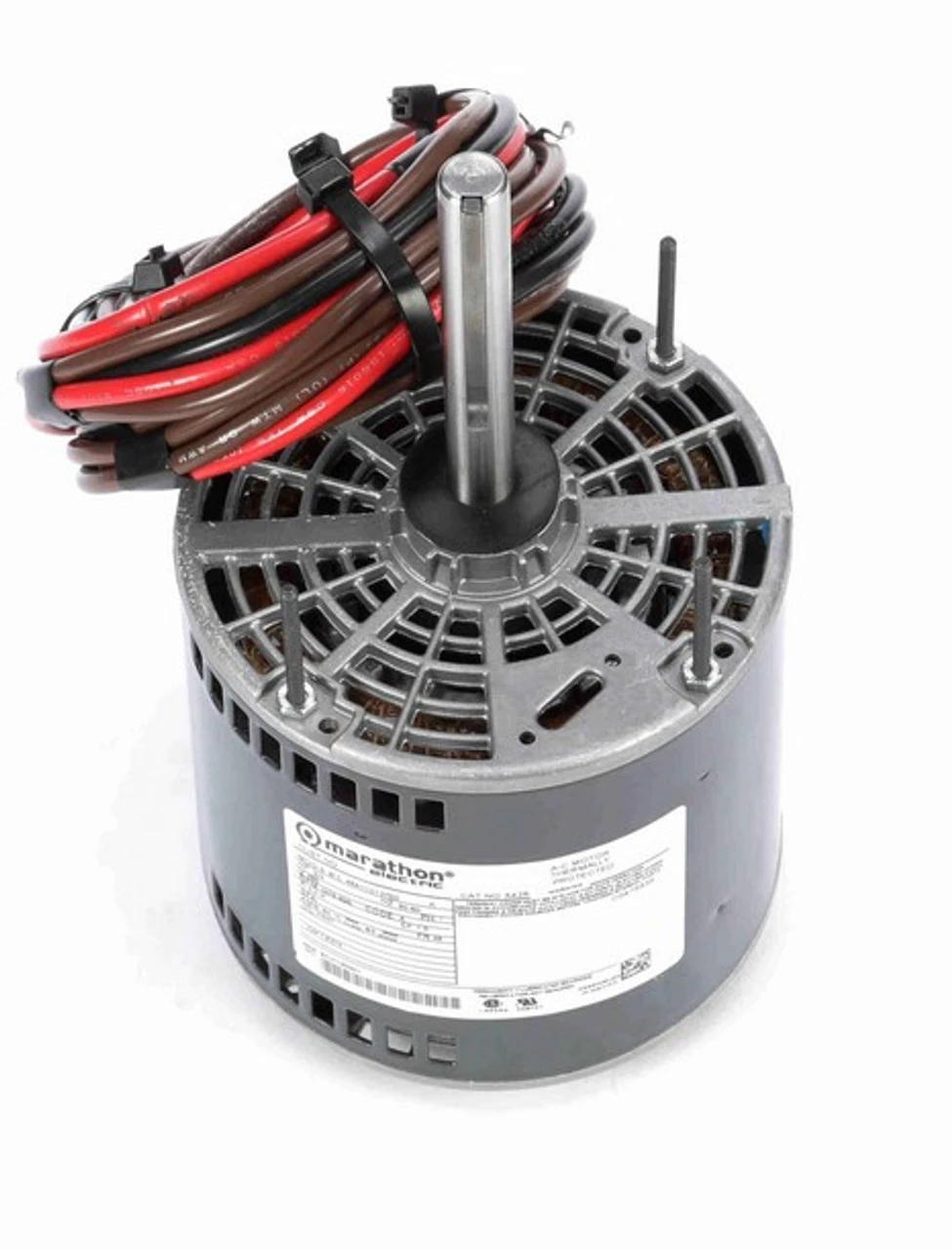

X426 Marathon 3/4 Hp 460V 1075 RPM OPAO 48Y Frame Condenser Fan Motor

• 3/4 hp 1075 RPM, 2.2 amps, 460 Volts 60 Hz, Permanent Split Capacitor (PSC)
• NEMA 48Y Frame Keyed Shaft 5/8″ Diameter x 6″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open-Air-Over so motor must be in air-stream. 048A11O1375
