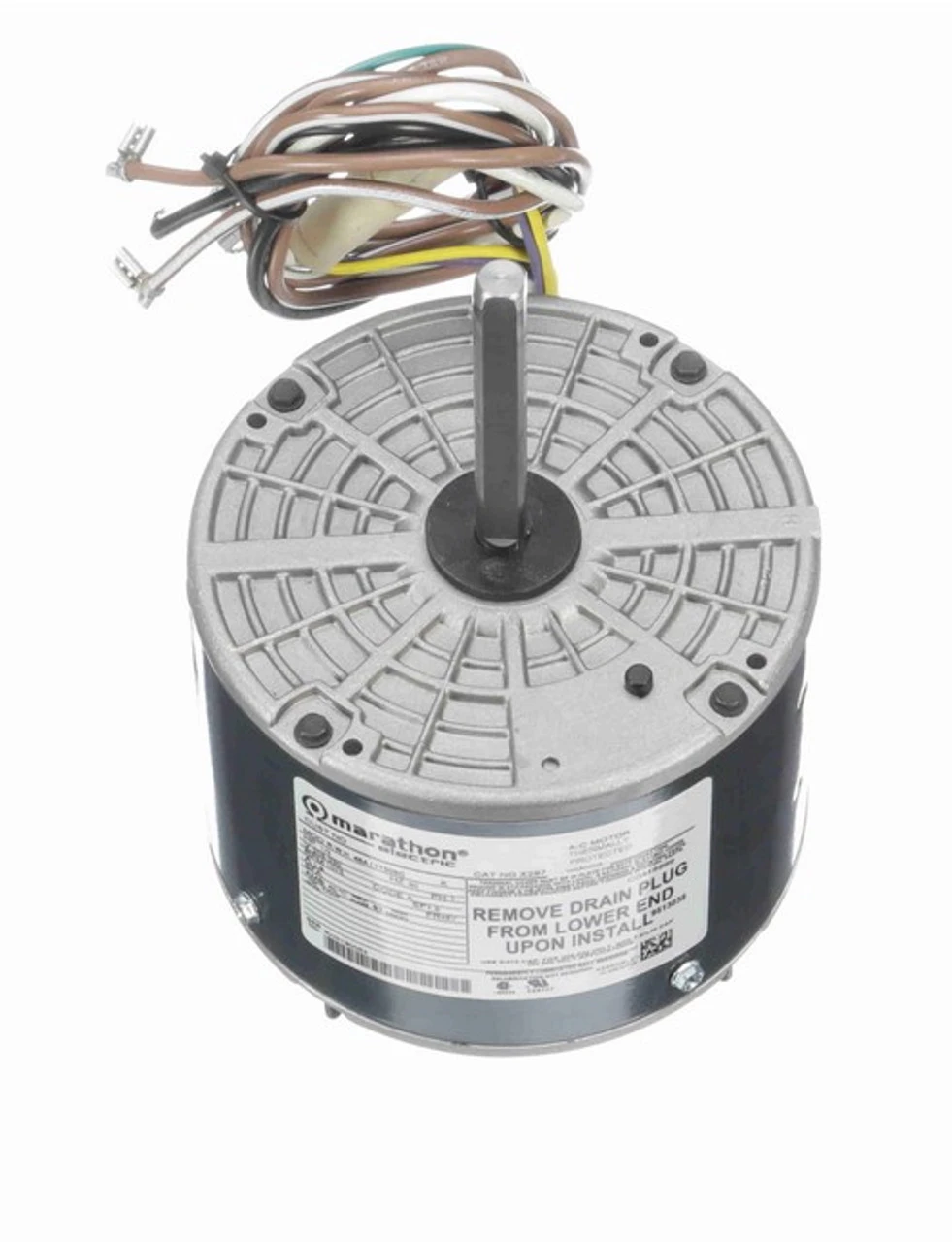

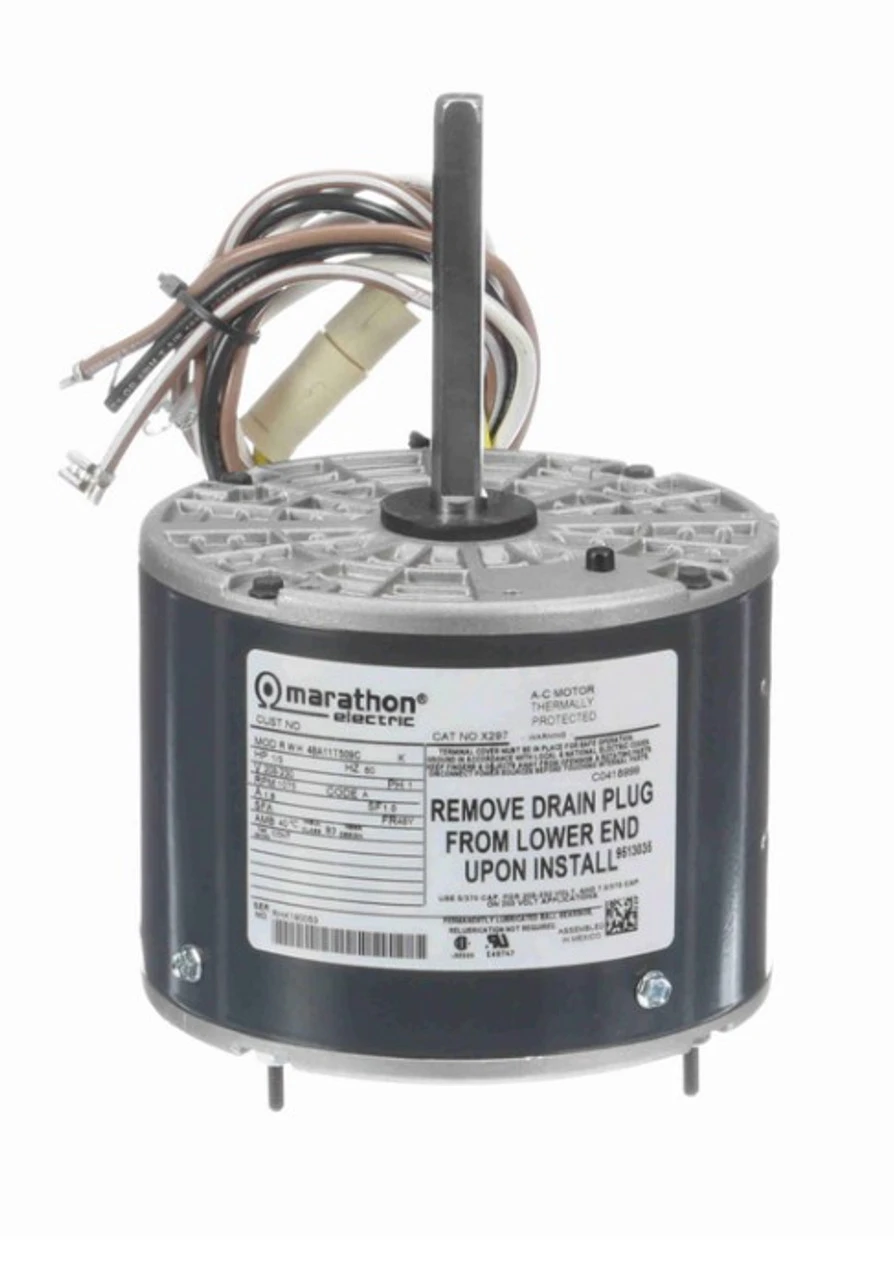

X297 Marathon 1/3 Hp 208-230V 1075 RPM TEAO Shaft Down 48Z Frame Condenser Fan Motor

• 1/3 hp 1075 RPM, 1.9-1.8 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)
• NEMA 48Z Frame Keyed Shaft 1/2″ Diameter x 3 3/4″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Shaft Down Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft must be be vertical and pointed downward. TEAO = Totally-Enclosed-Air-Over so motor must be in air-stream. 048A11T509
