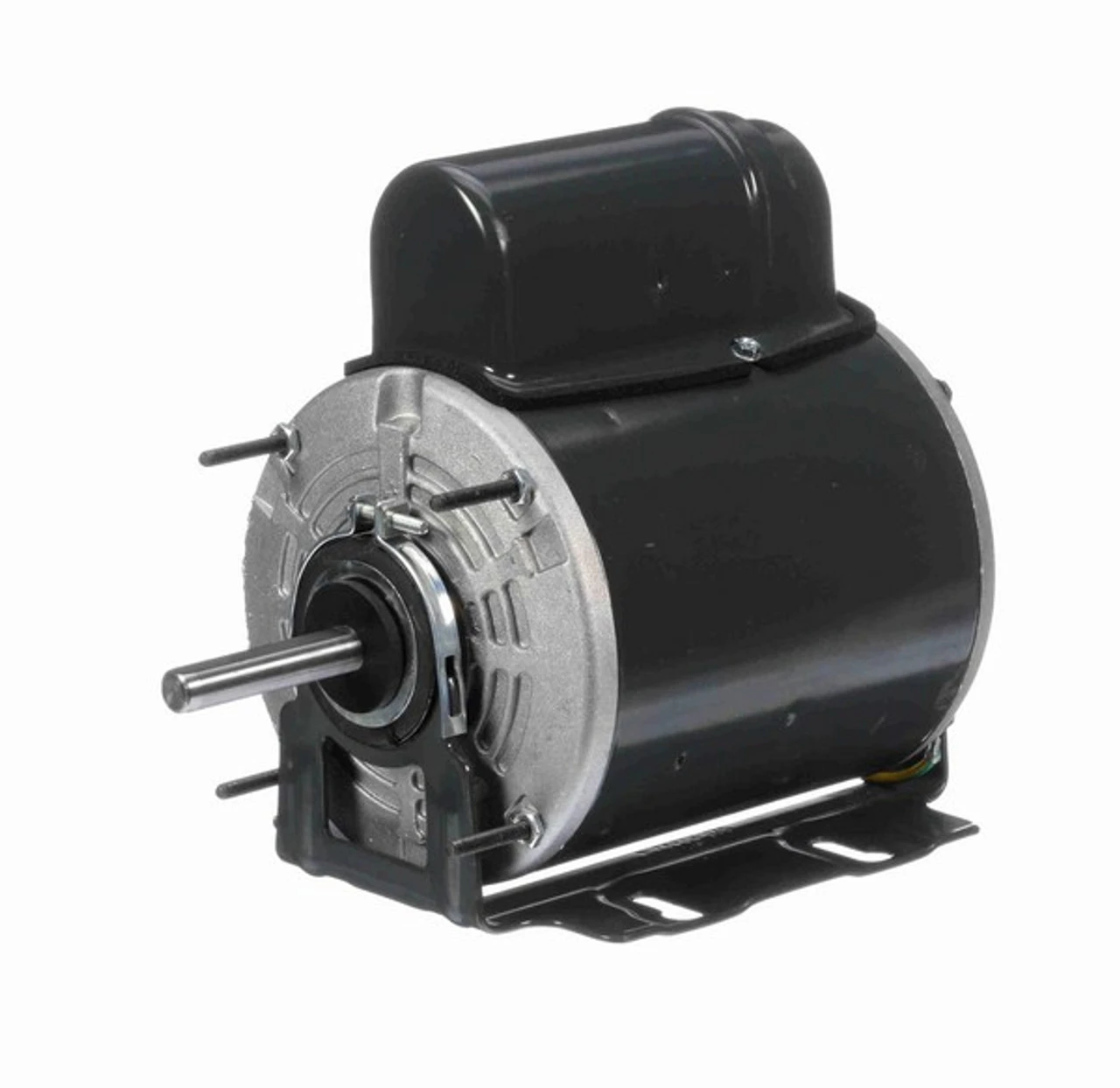

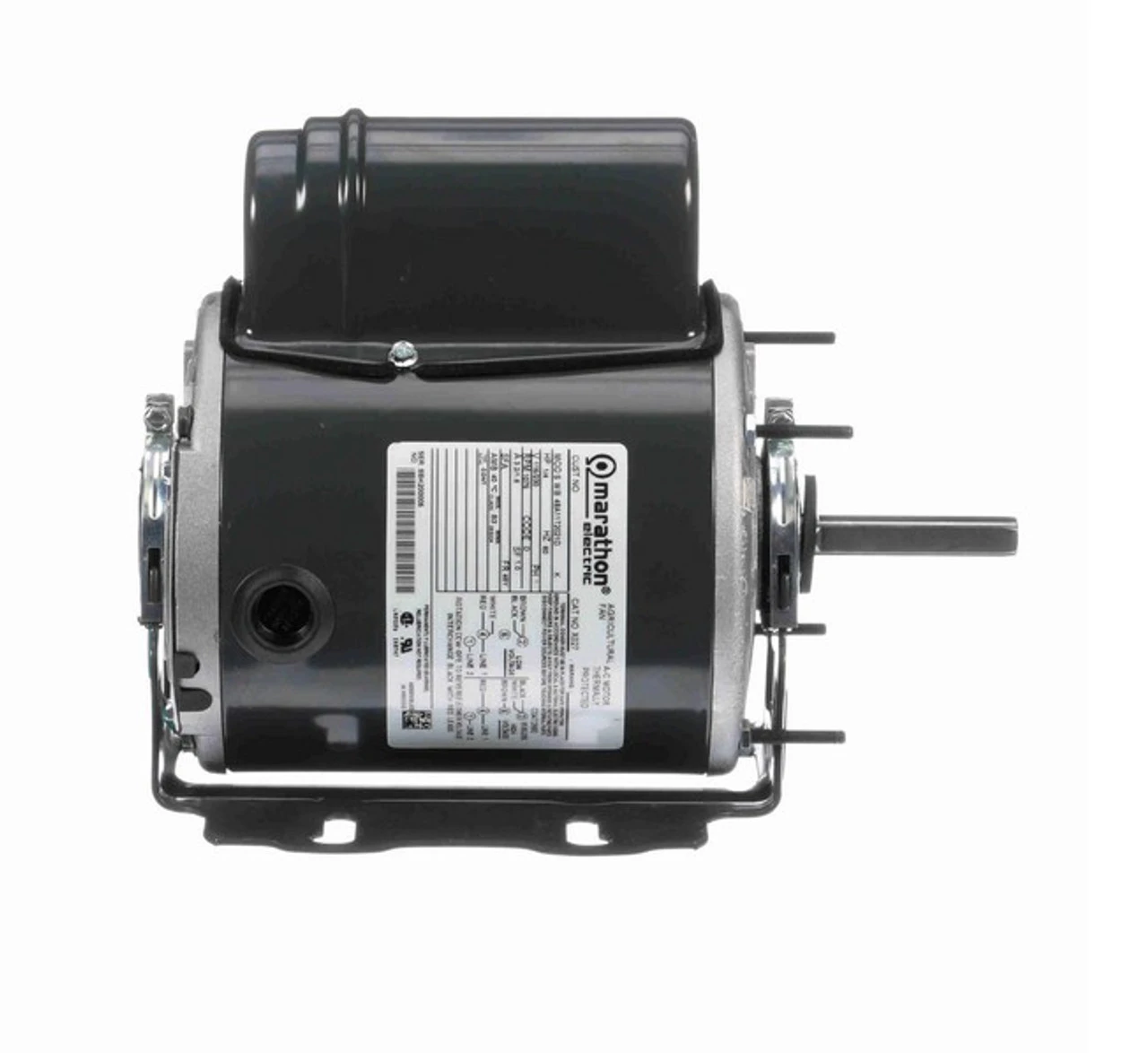

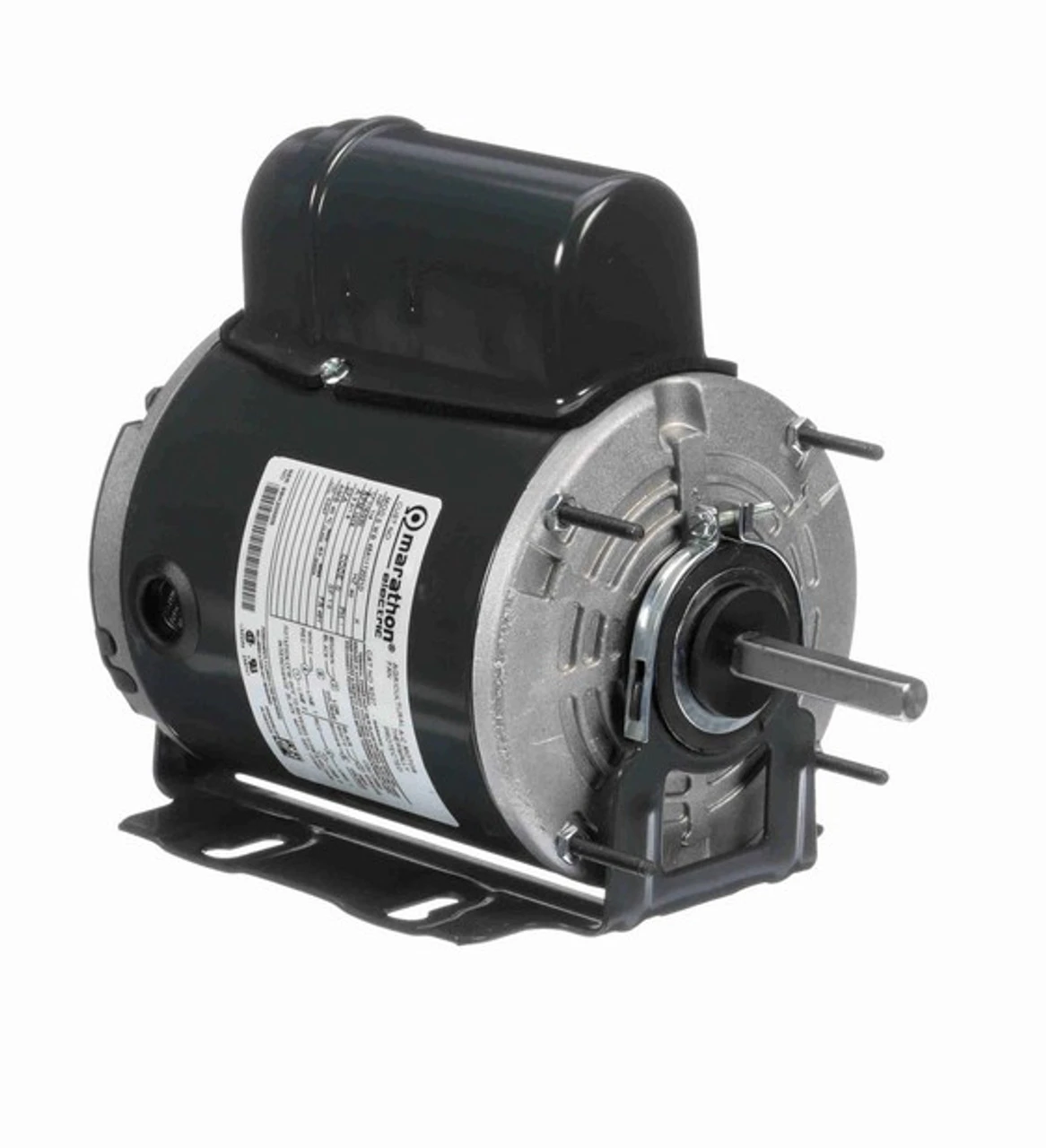

X027 Marathon 1/4 Hp 1200 RPM 115/230V TEAO 48Z Frame PSC Farm Motor

• 1/4 hp 1200 RPM, 3.2/1.6 amps, 115/230 Volts 60 Hz. PSC
• NEMA 48Z Frame, TEAO, Shaft 1/2″ Diameter x 2 1/2″ with double flats
• Service Factor = 1.0, Overload Protection: Auto
• Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

Single phase motor designed for belt drive fans in farm buildings, TEAO = Totally-Enclosed Air-Over so motor must be in air stream for proper cooling, 048A11T2021
