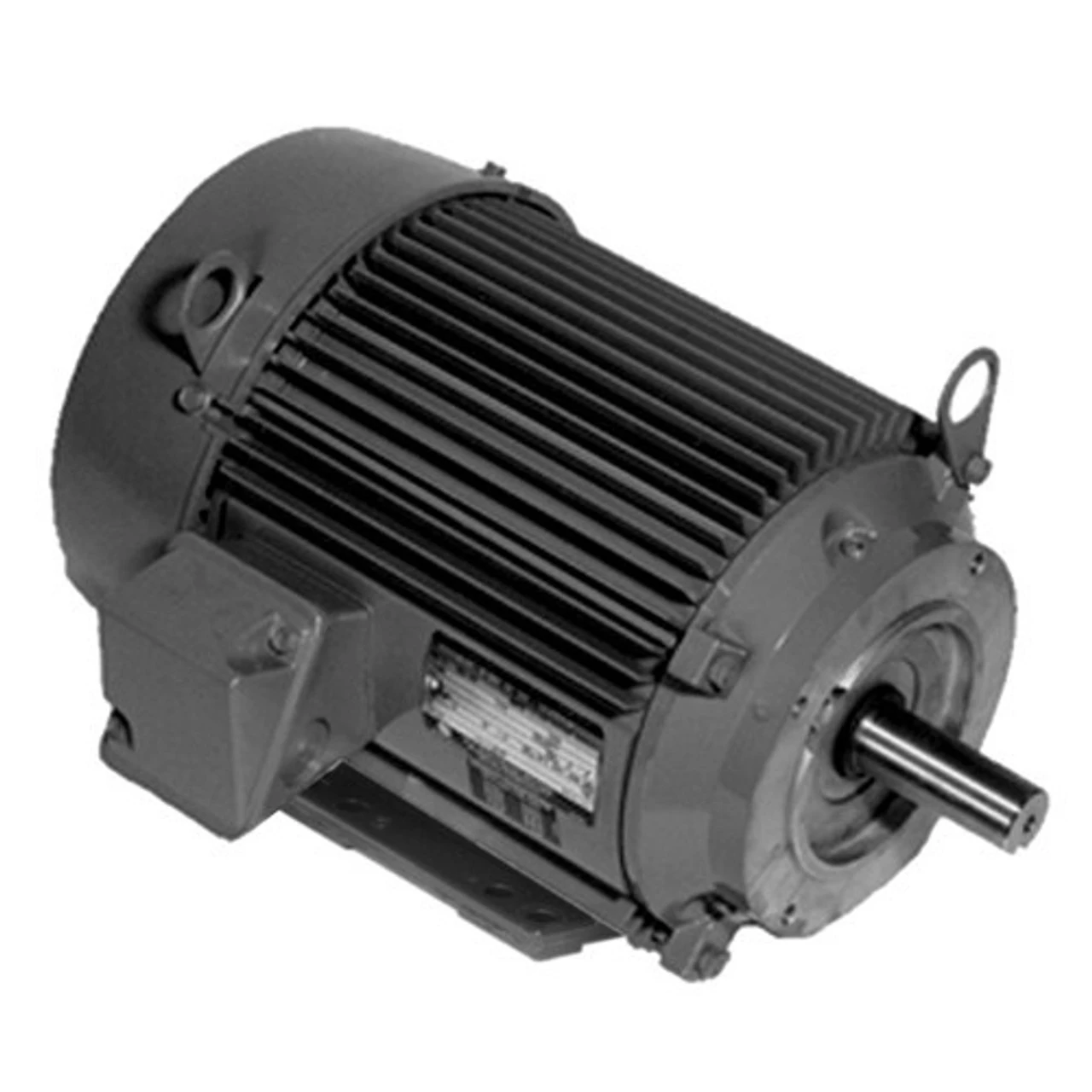

U5V2BC Nidec 5 Hp 1800 RPM 184TC (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
Original price was: $393.00.$97.99Current price is: $97.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 5 hp 1800 RPM, 12.7/6.3 amps 230/460 Volts 60 Hz Three Phase Motor

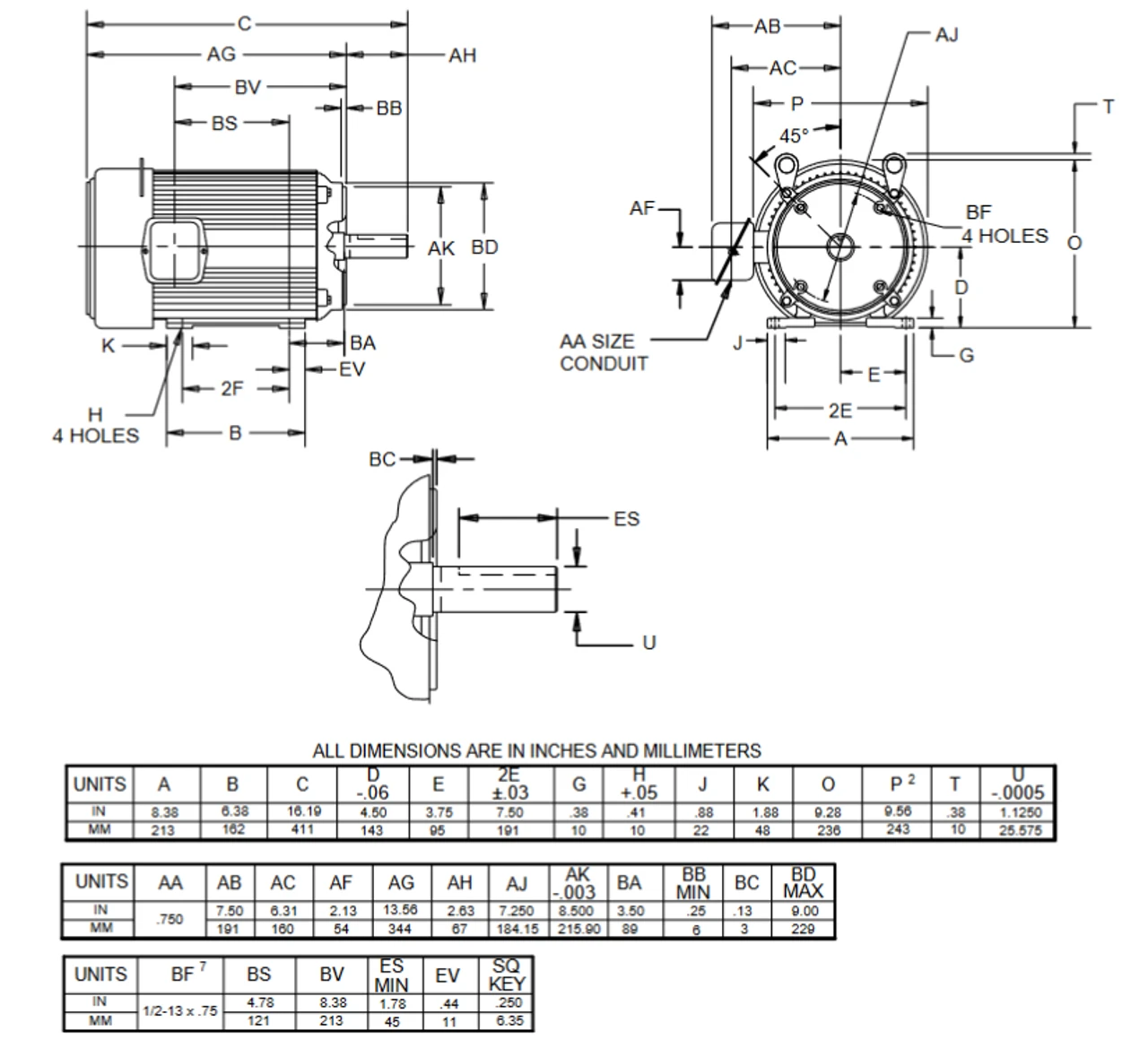

- NEMA 184TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA45
