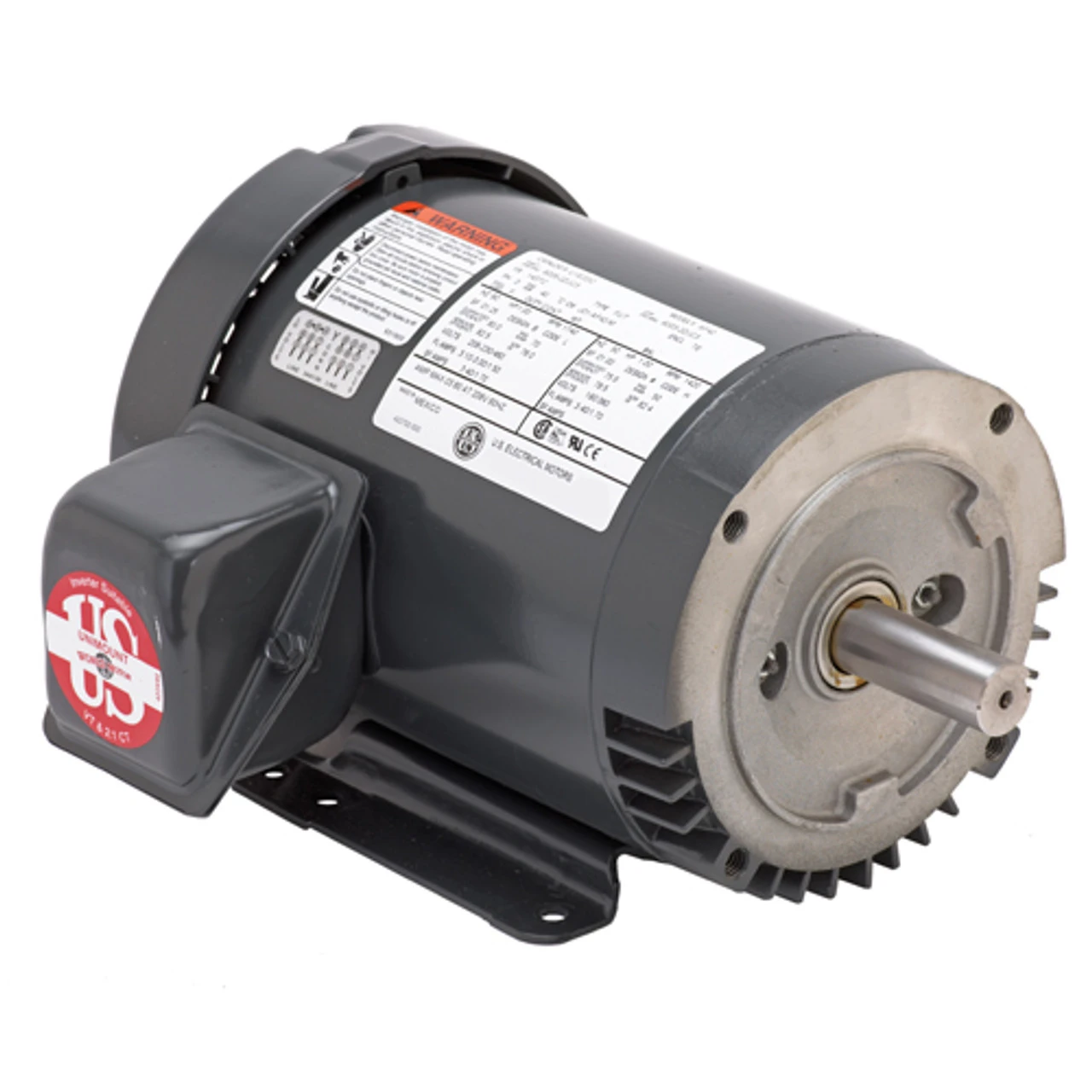

U3P1AFC Nidec 3 Hp 3600 RPM 145TC Frame 208-230/460V TEFC 3-Phase Electric Motor

• 3 hp 3600 RPM,  8.1-7.2/3.6 amps 208-230/460 Volts 60 Hz Three Phase Motor
• NEMA 145TC frame Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.25, Overload protection = None
• Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD86
