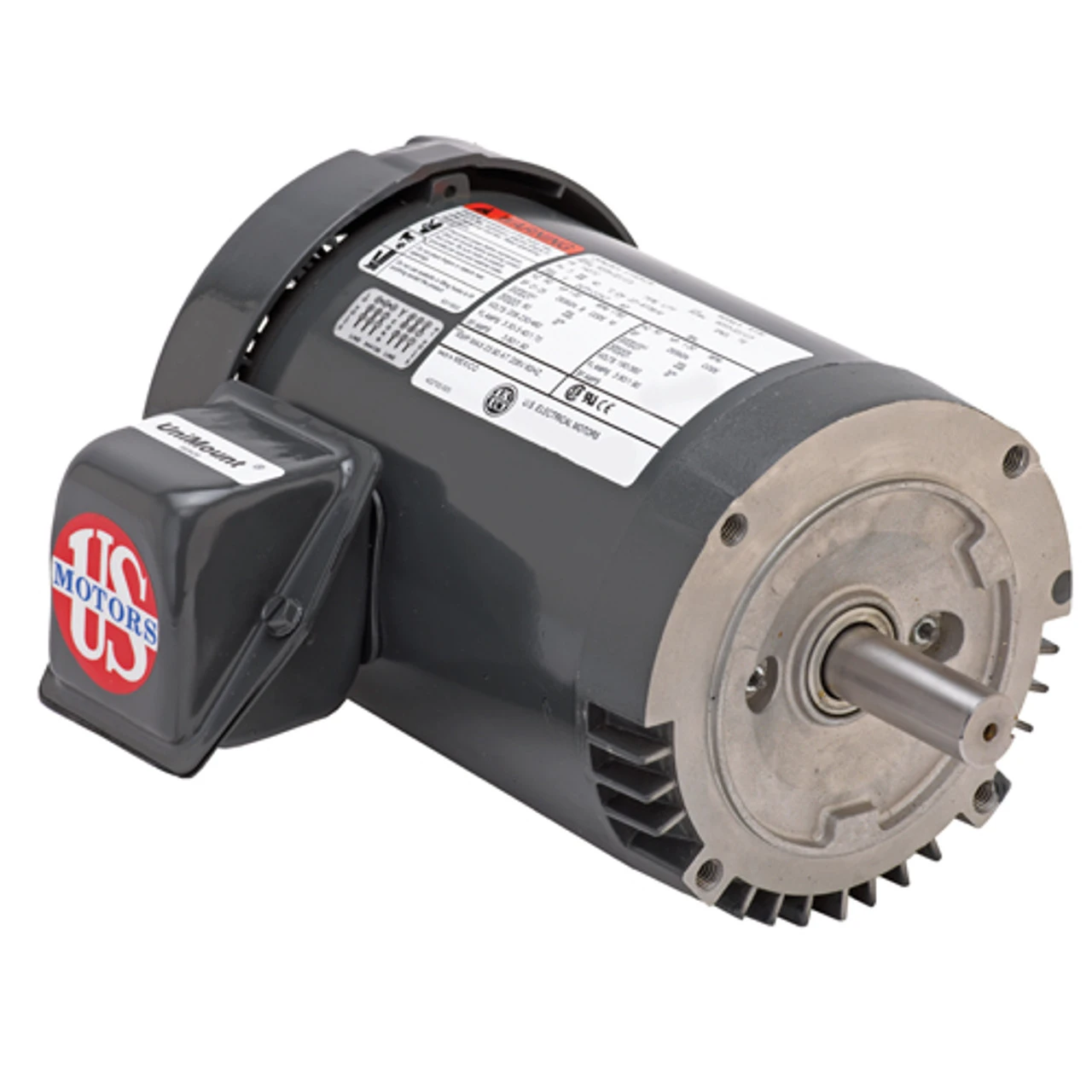

U3P1A14CR Nidec 3 Hp 3600 RPM 145TC Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
Original price was: $324.00.$99.99Current price is: $99.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 3 hp 3600 RPM, 7.4-7.5/3.7 amps 208-230/460 Volts 60 Hz Three Phase Motor
- NEMA 145TC frame Keyed Shaft 7/8″ Diameter x 2 1/8″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty

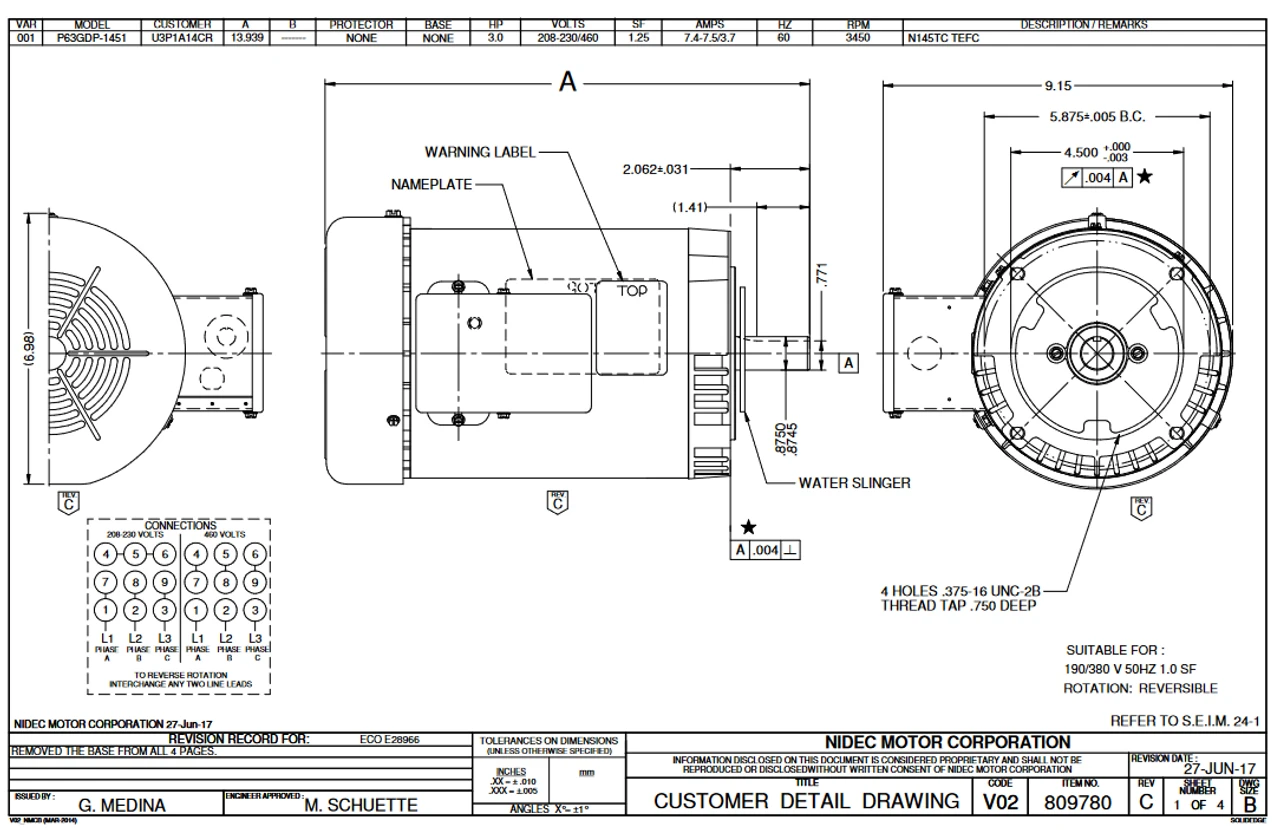

General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. P063GDP1451015B
