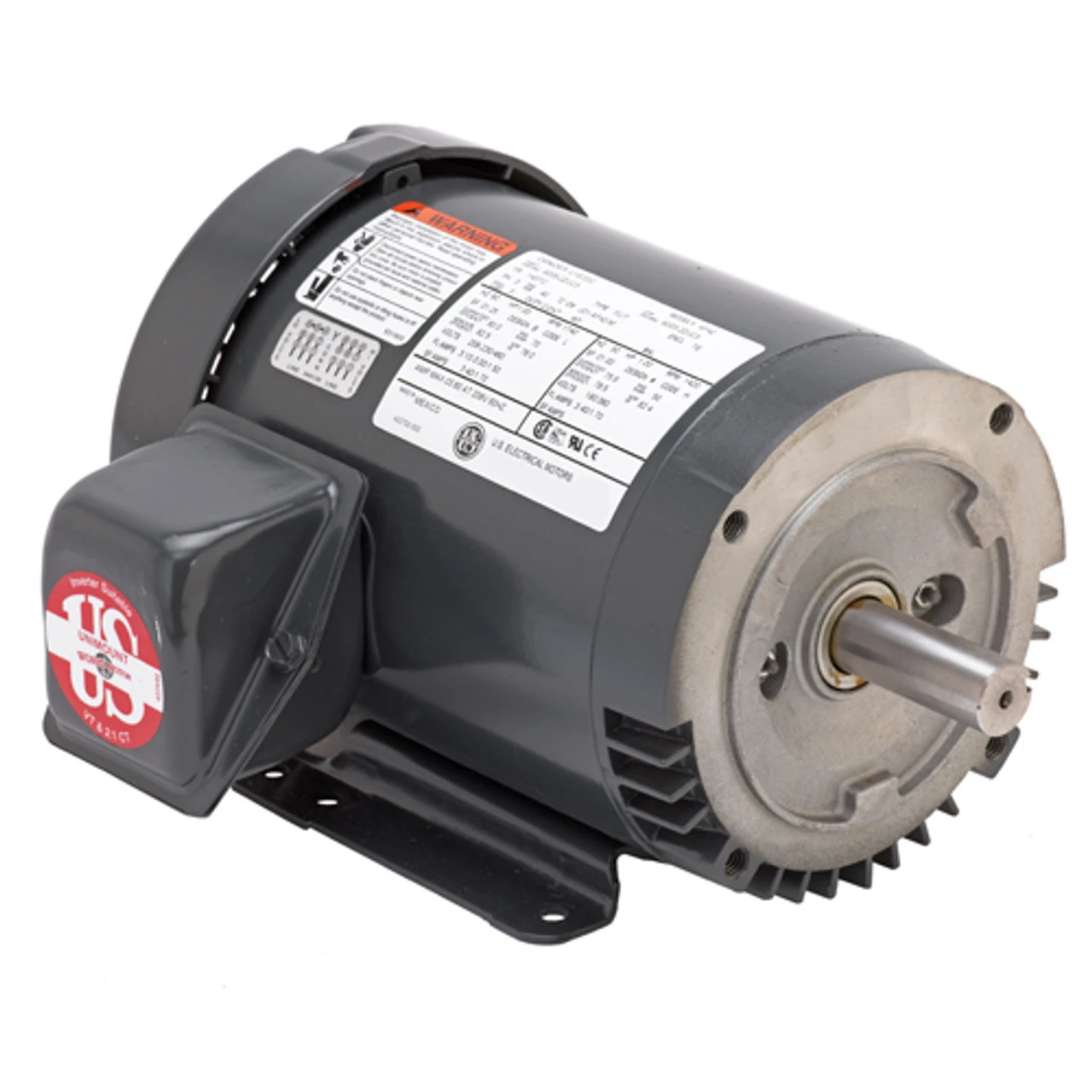

U34S3AC Nidec 3/4 Hp 1200 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

• 3/4 hp 1200 RPM,  3.1-3.2/1.6 amps 208-230/460 Volts 60 Hz Three Phase Motor

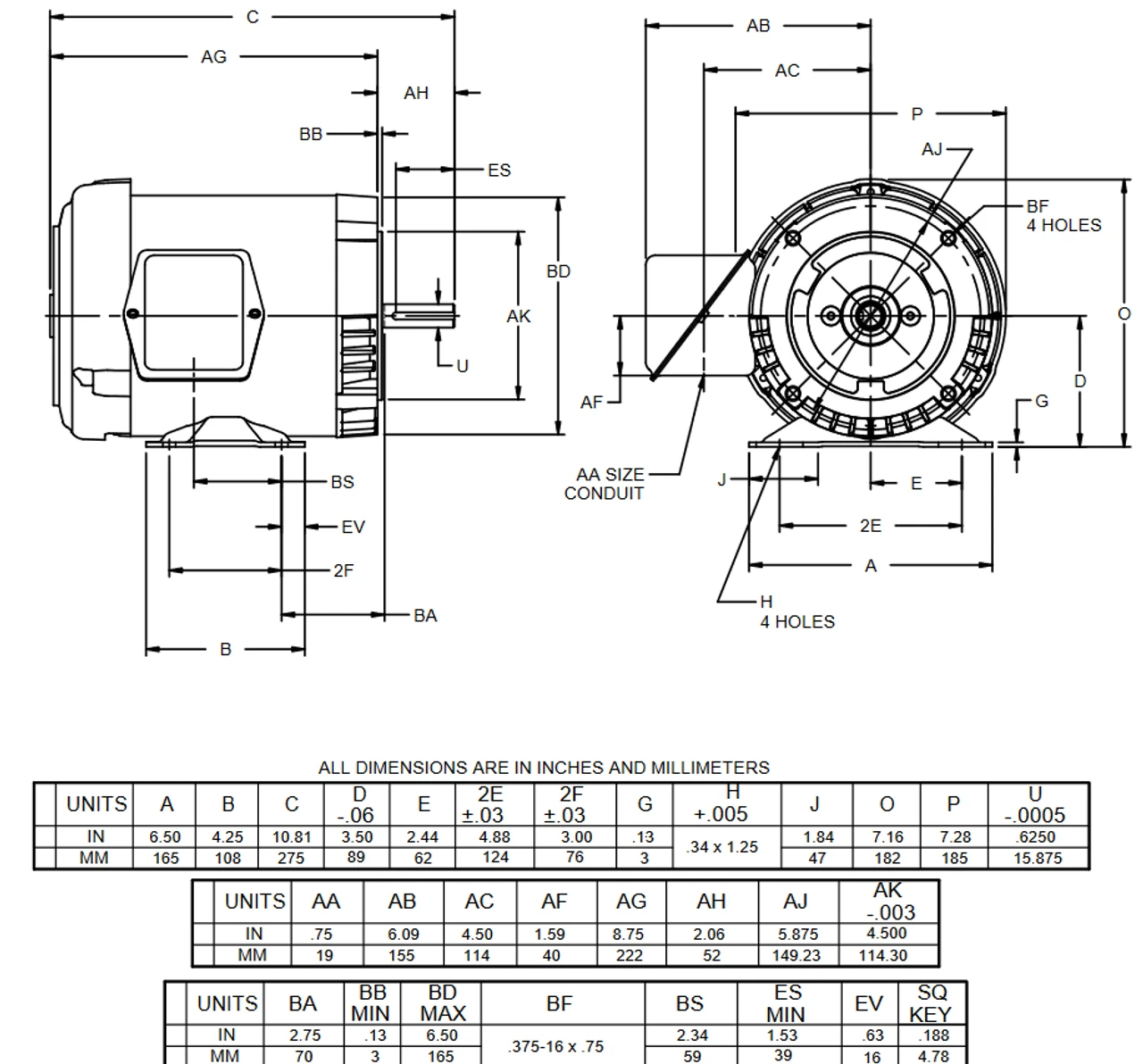

• NEMA 56C frame Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.25, Overload protection = None
• Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. P063CPS4873015B
