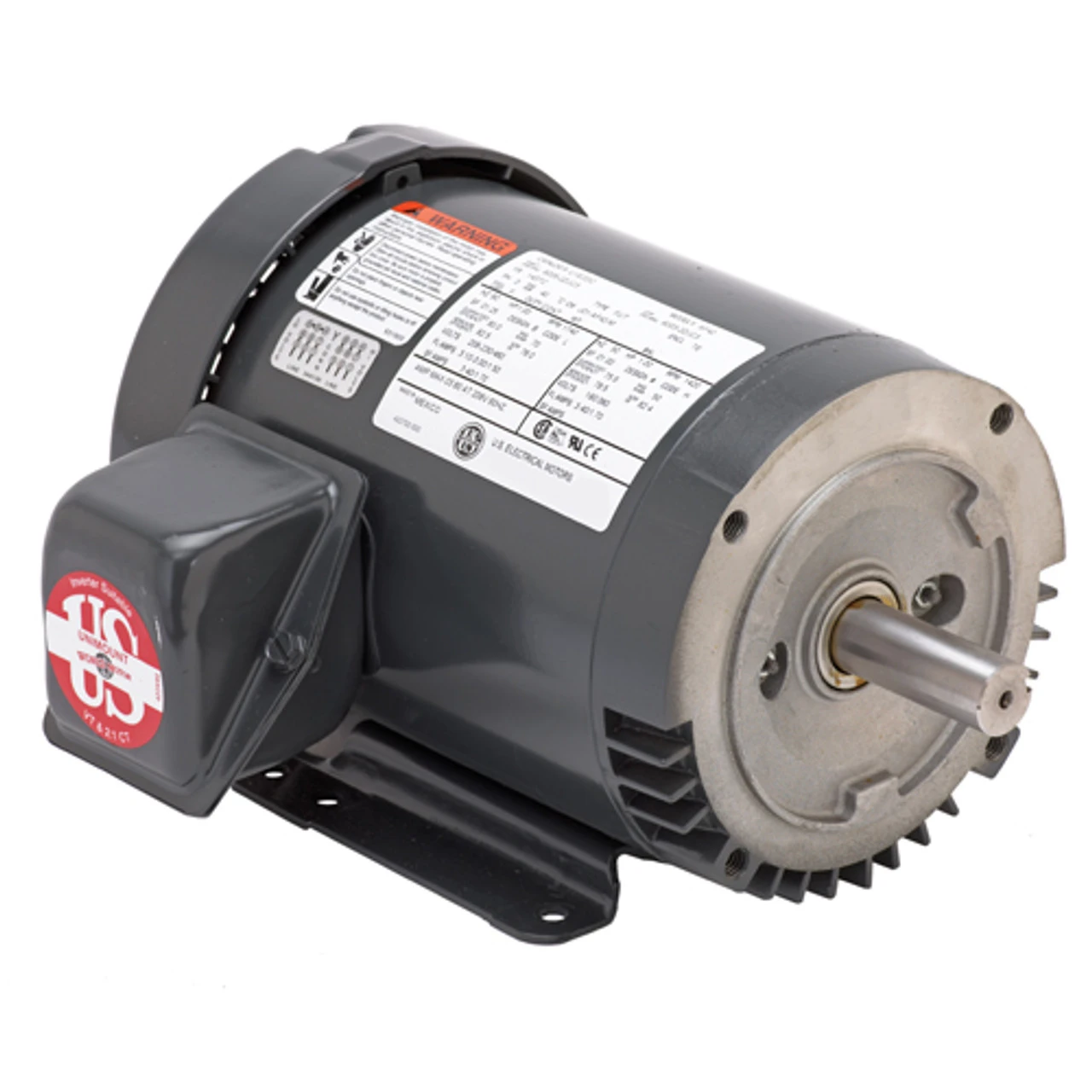

U32P2DFC Nidec 1 1/2 Hp 1800 RPM 56C Frame 208-230/460V TEFC 3-Phase Electric Motor

• 1 1/2 hp 1800 RPM,  4.5-4.3/2.1 amps 208-230/460 Volts 60 Hz Three Phase Motor
• NEMA 56C frame Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.25, Overload protection = None
• Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FM74
