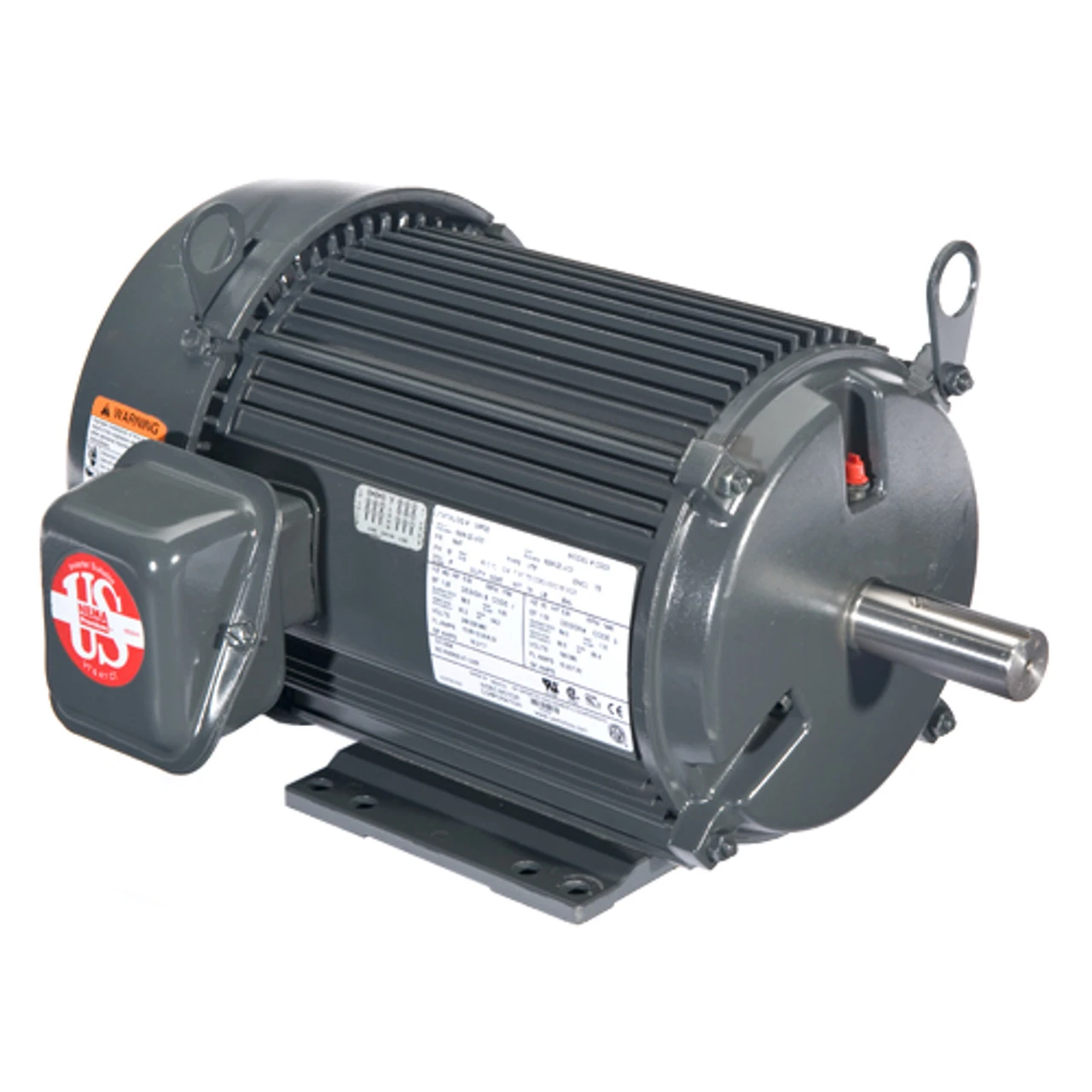

U15P1AF Nidec 15 Hp 3600 RPM 215T Frame 208-230/460V TEFC 3-Phase Electric Motor
Original price was: $314.00.$99.99Current price is: $99.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 15 hp 3600 RPM, 40.0-35.0/17.4 amps 208-230/460 Volts 60 Hz Three Phase Motor

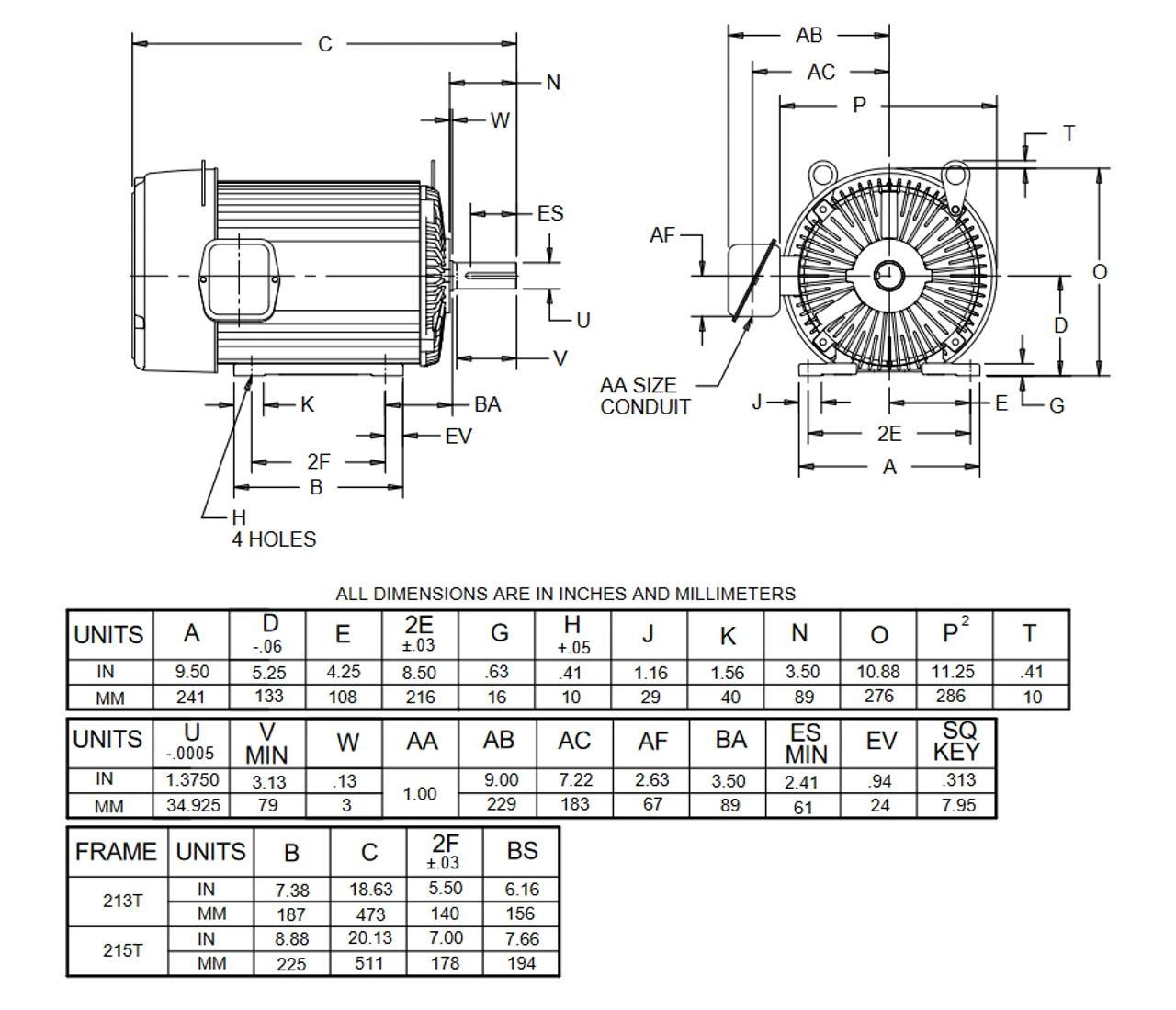

- NEMA 215T frame Keyed Shaft 1 3/8″ Diameter x 3 1/2″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DP59
