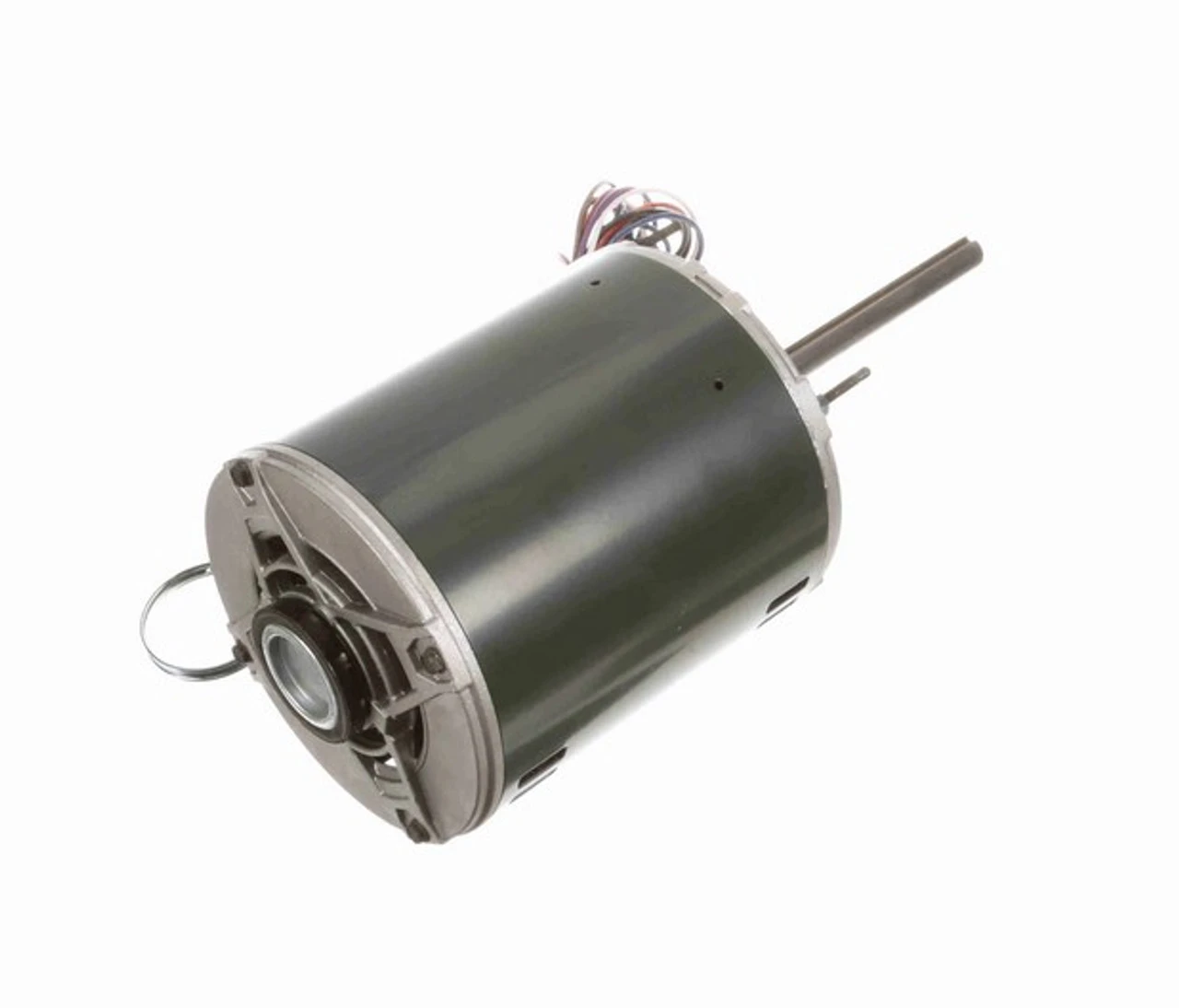

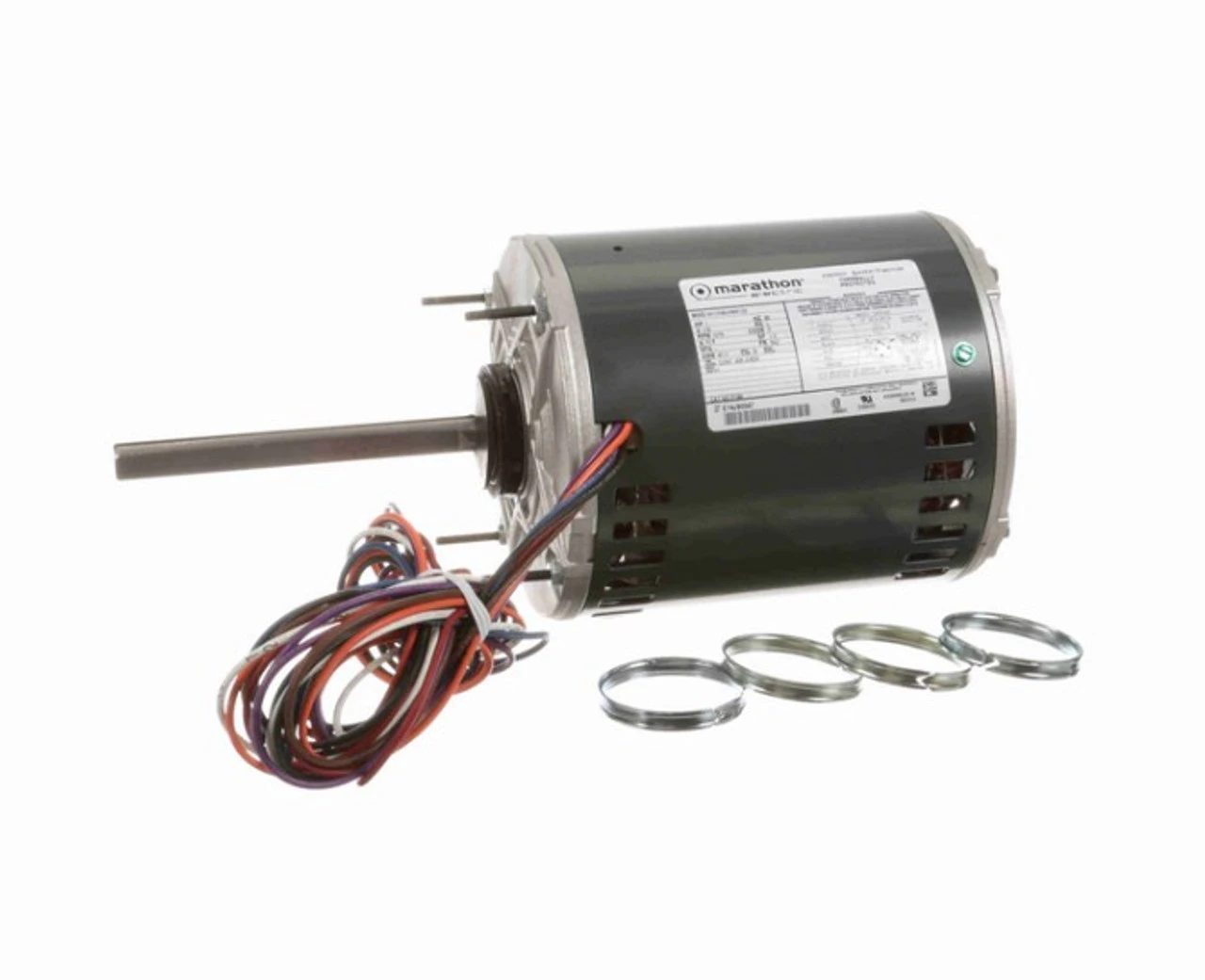

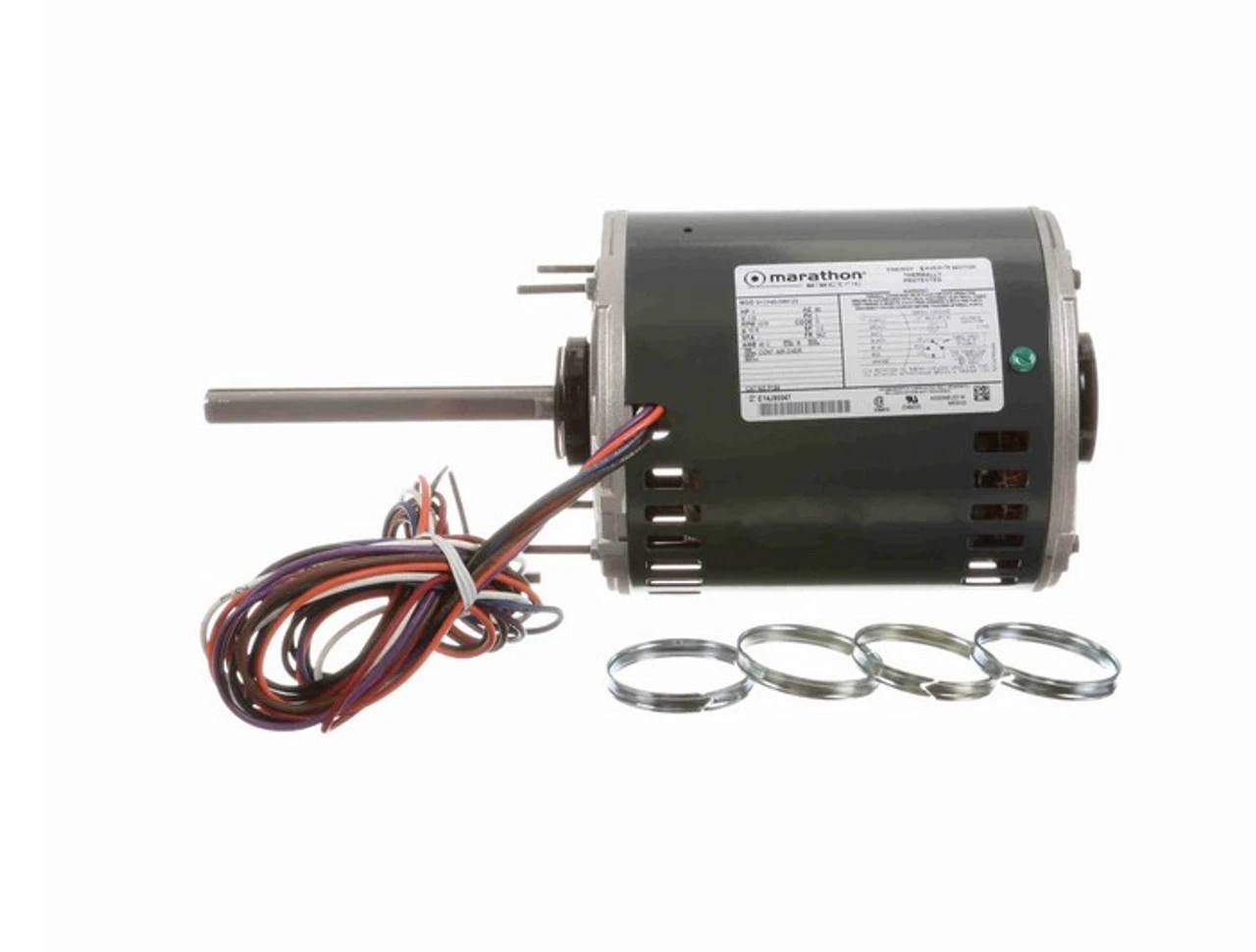

P184 Marathon 1 Hp 115V 1075 RPM ODPAO (no Base) 56Z Frame Condenser Fan Motor

• 1 hp 1075 RPM, 10.8 amps, 115 Volts 60 Hz, Permanent Split Capacitor (PSC)
• NEMA 56Z Frame Keyed Shaft 5/8″ Diameter x 6″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. ODPAO = Open Open Drip Proof Air Over so motor must be in air-stream. 5KCP49UN9612S
