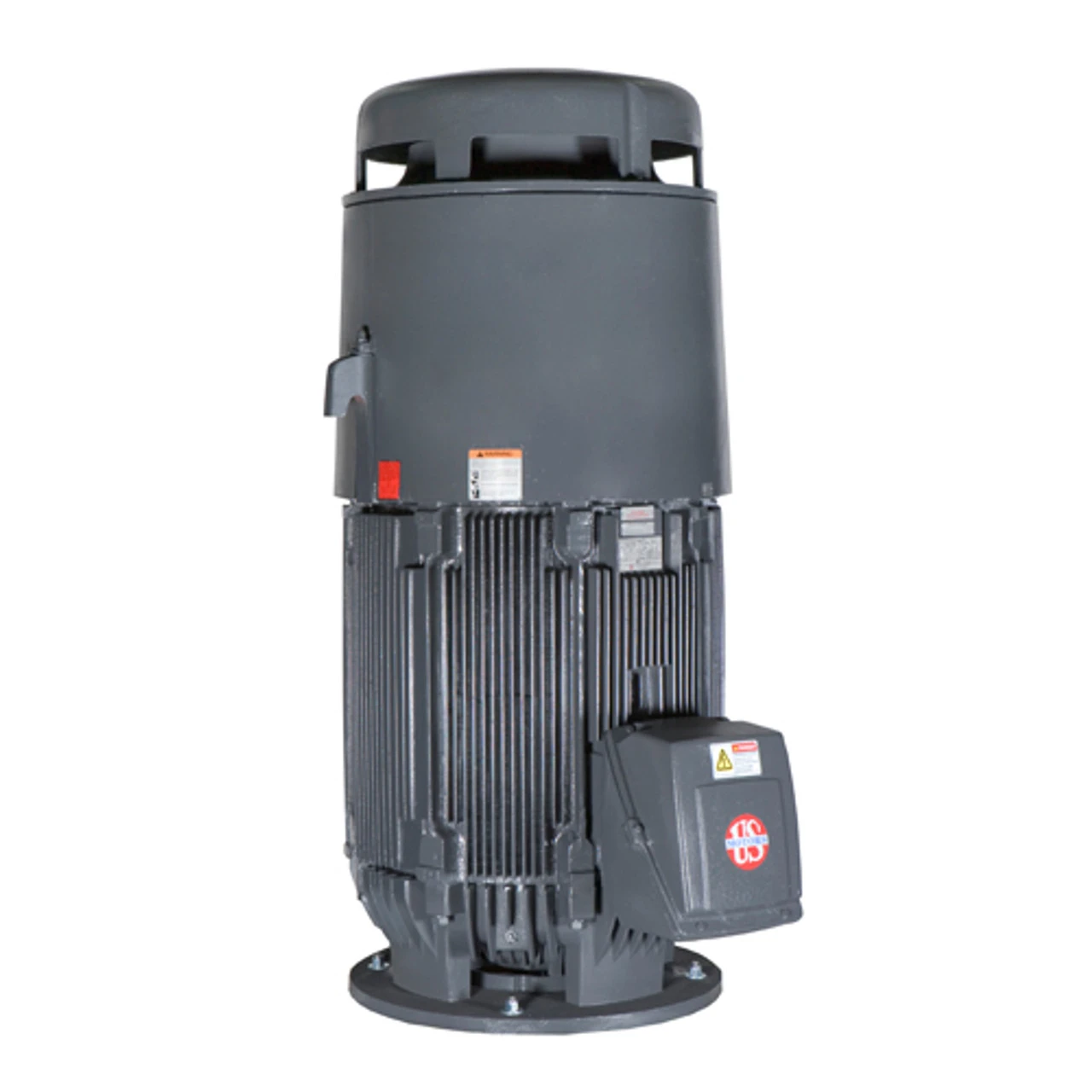

NO5P2BE Nidec 5 Hp WPI 1800 RPM 230/460V 3-phase 184VP Frame TEFC Vertical Solid Shaft Moto

• 5 HP 1800 RPM, 12.5/6.3 amps, 230/460V 60 Hz. 3 Phase

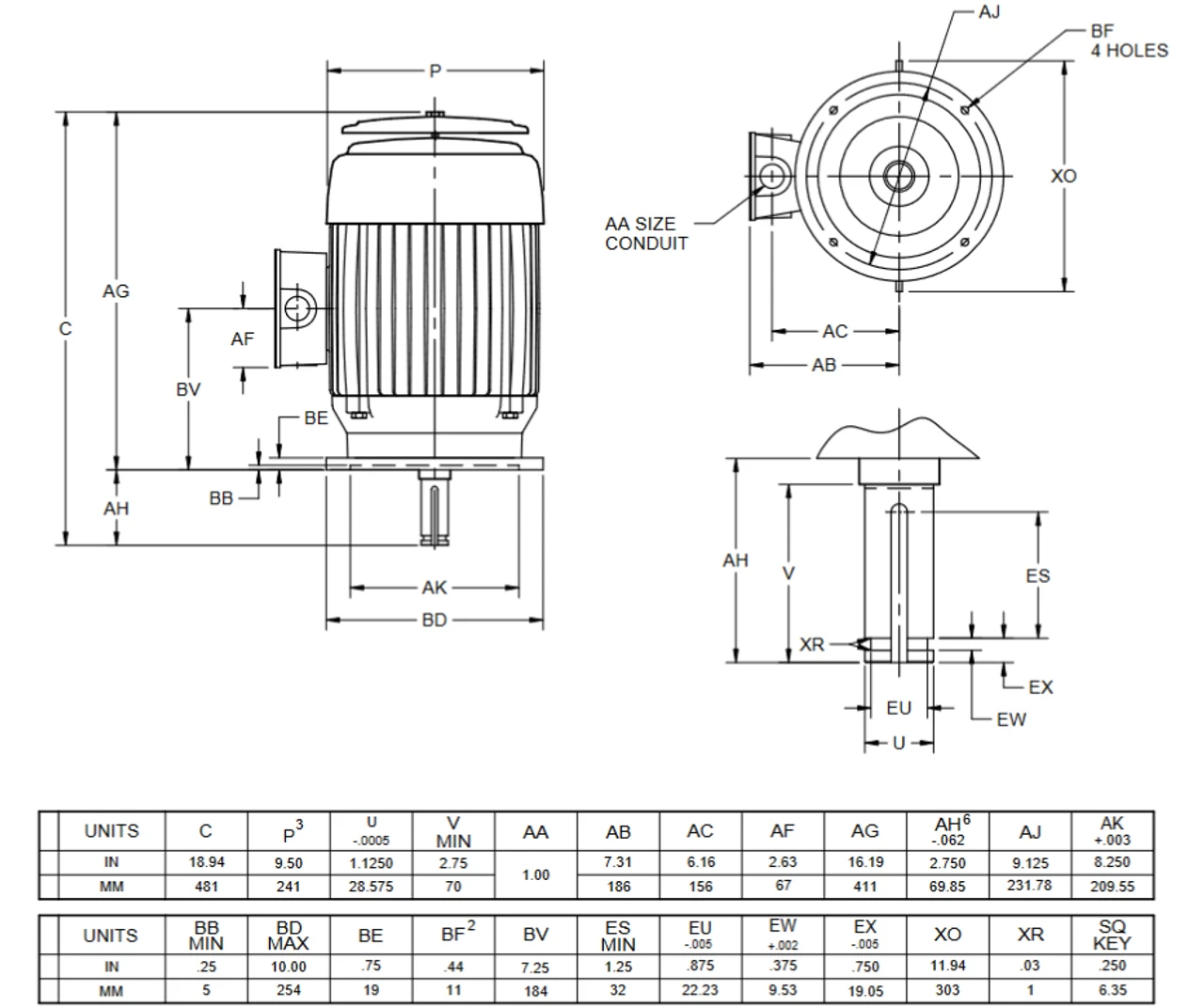

• NEMA 184VP Frame, AVS type, 10″ Dia. Base, TEFC
• 1.15 Service Factor, Class F insulation, Thermal Protection: None
• Non-Reversible Ratchet Rotation, Weather Protected Enclosure
• P-Base Mounting, Ball Bearings, Normal Thrust

Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, All cast iron construction, Inverter Duty. 1 Year Manufacture Warranty. FK77
