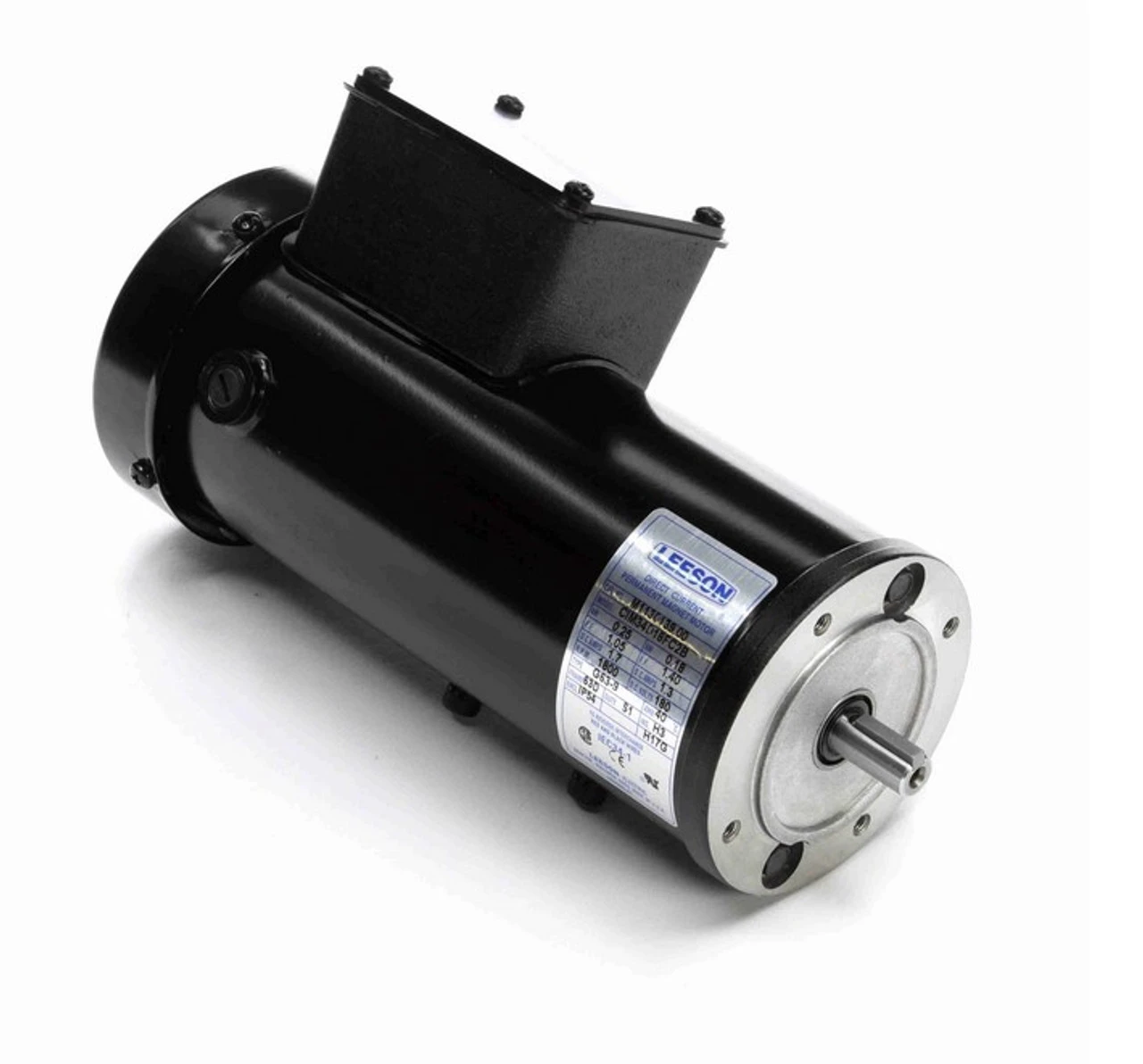

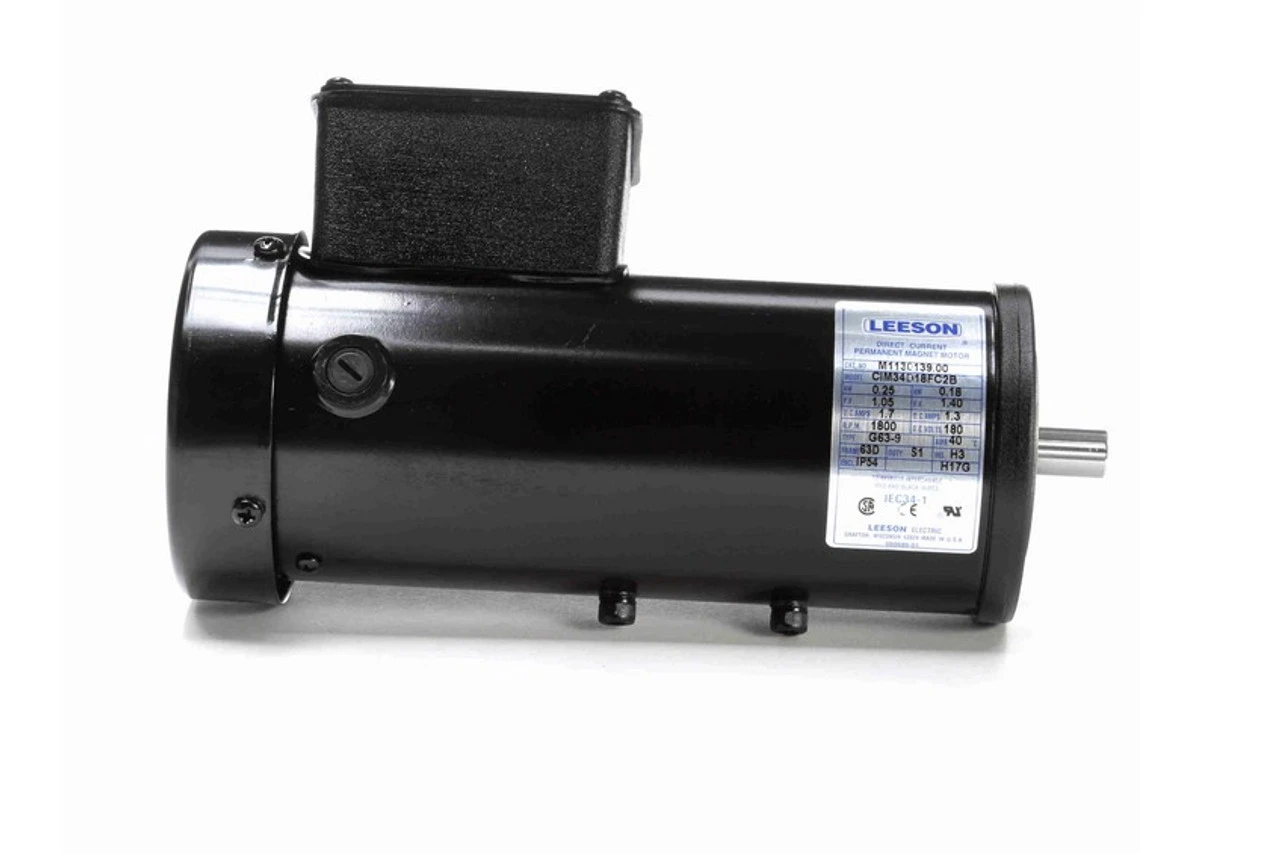

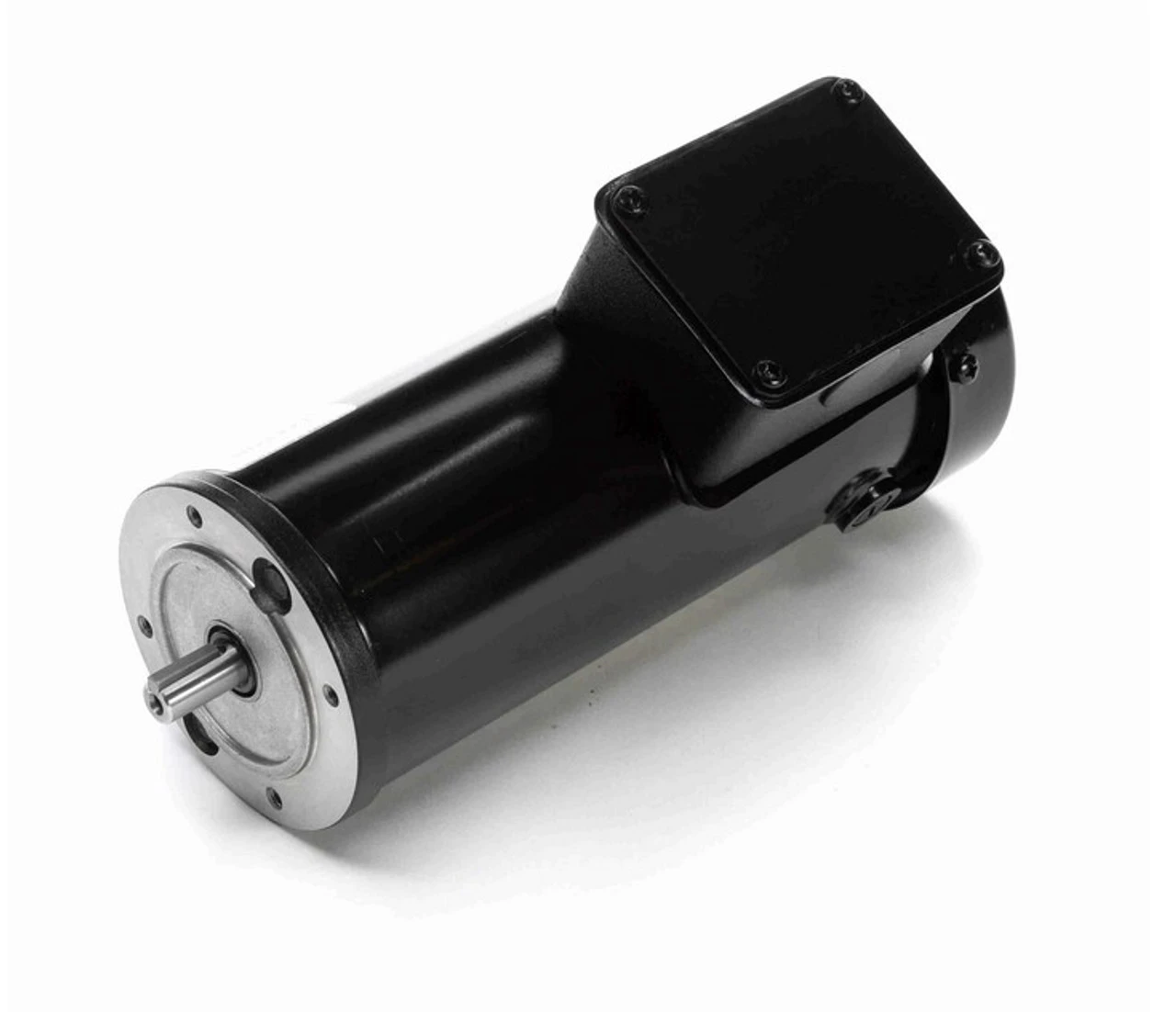

M1130139.00 Leeson 0.25 KW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor

• 0.25 kW 1800 RPM, 1.7 amps 180 Volt Controllable DC Motor
• IEC 63D Frame, IP54 Enclosure, Shaft 7/16″ Diameter x 7/8″
• Service Factor: 1.0 Overload Protection = None
• No Base, Reversible, Ball Bearings, Class H Insulation
• 1 Year Manufacture Warranty

DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. M1130139.00
