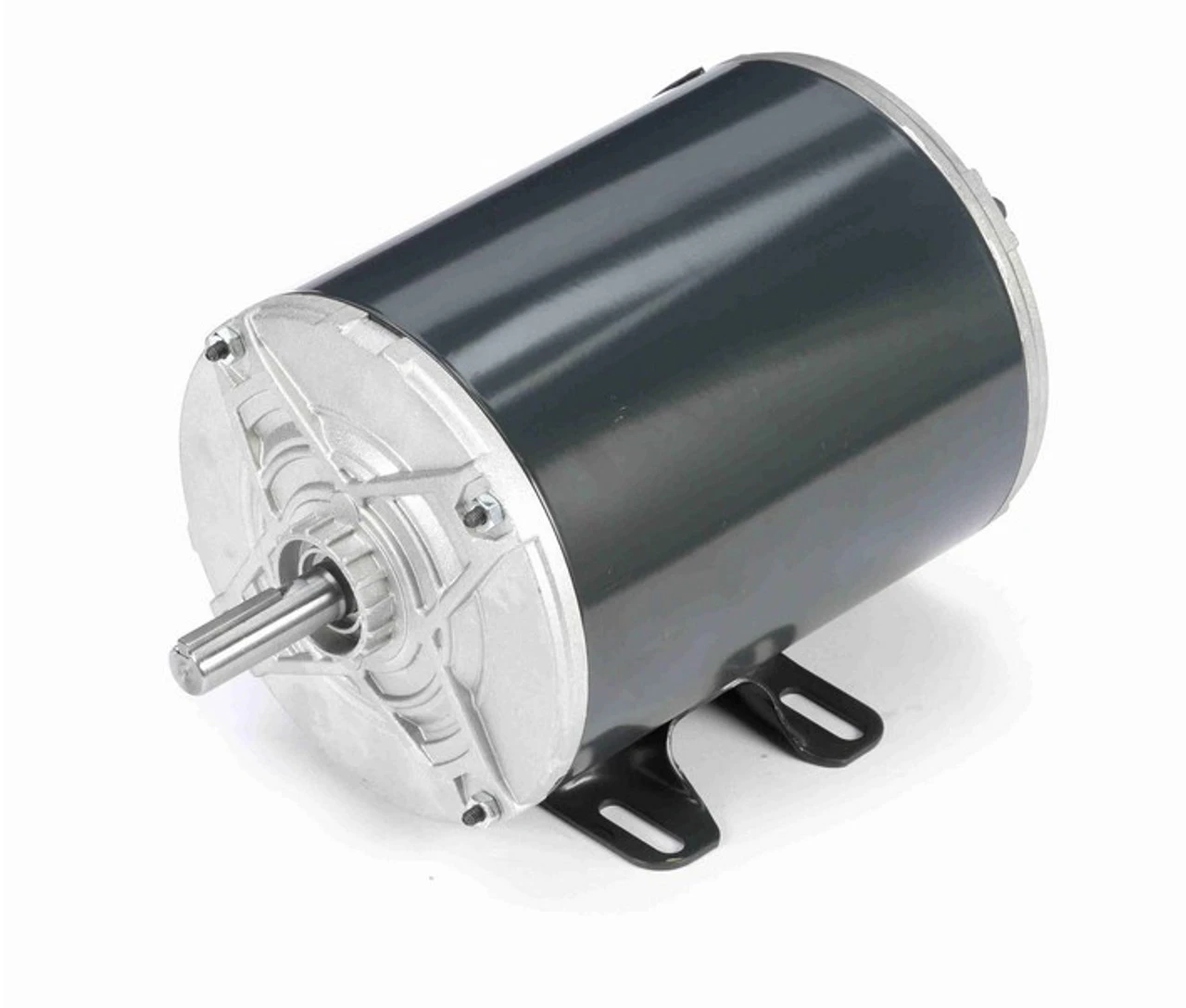

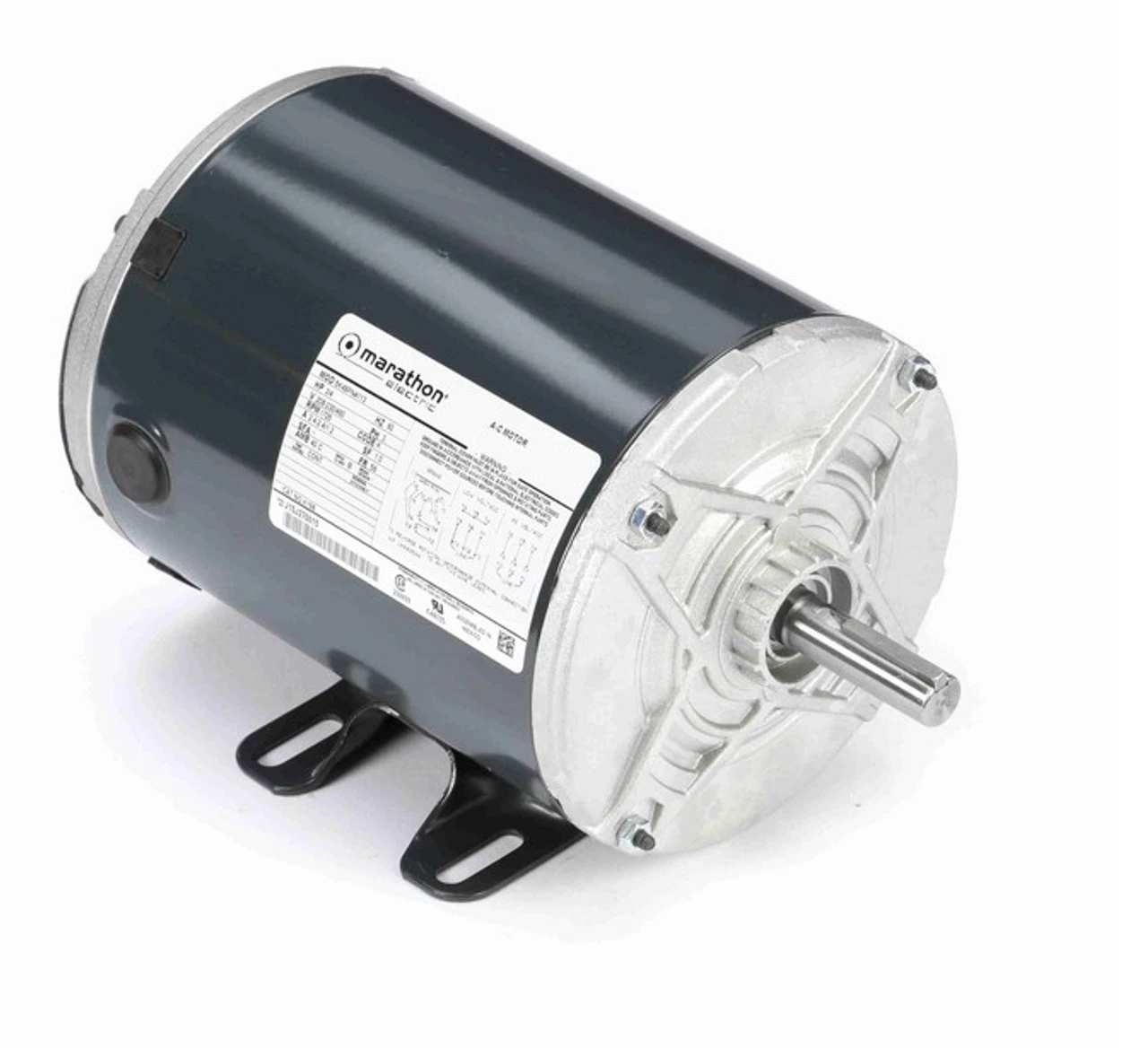

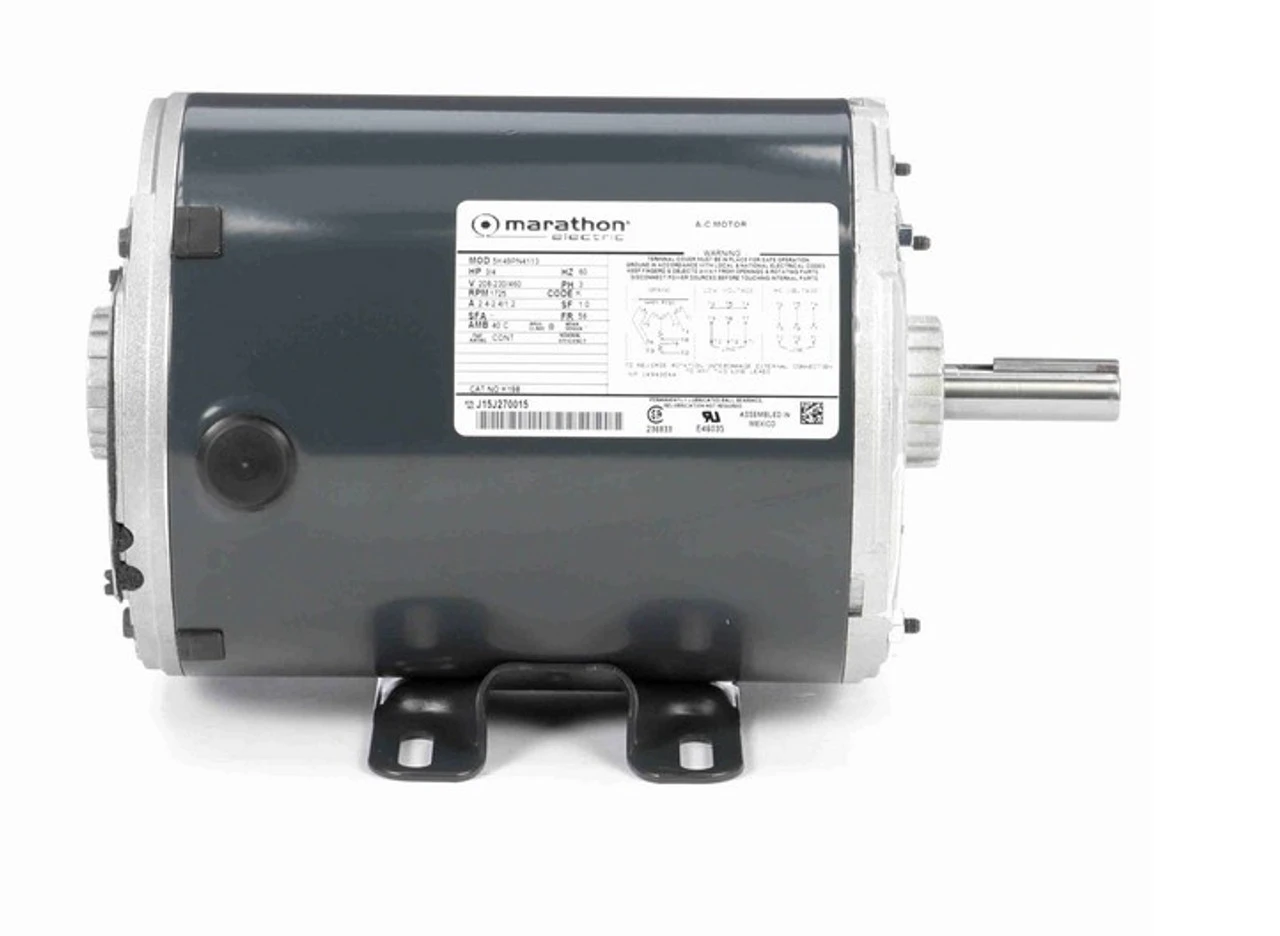

K198 Marathon 3/4 Hp 208-230/460V 1800 RPM 3-Phase 56 Frame TENV (rigid Base) Motor
Original price was: $392.50.$97.99Current price is: $97.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 3/4 hp 1800 RPM, 2.4-2.4/1.2 amps 208-230/460 Volts 60hz. Three Phase

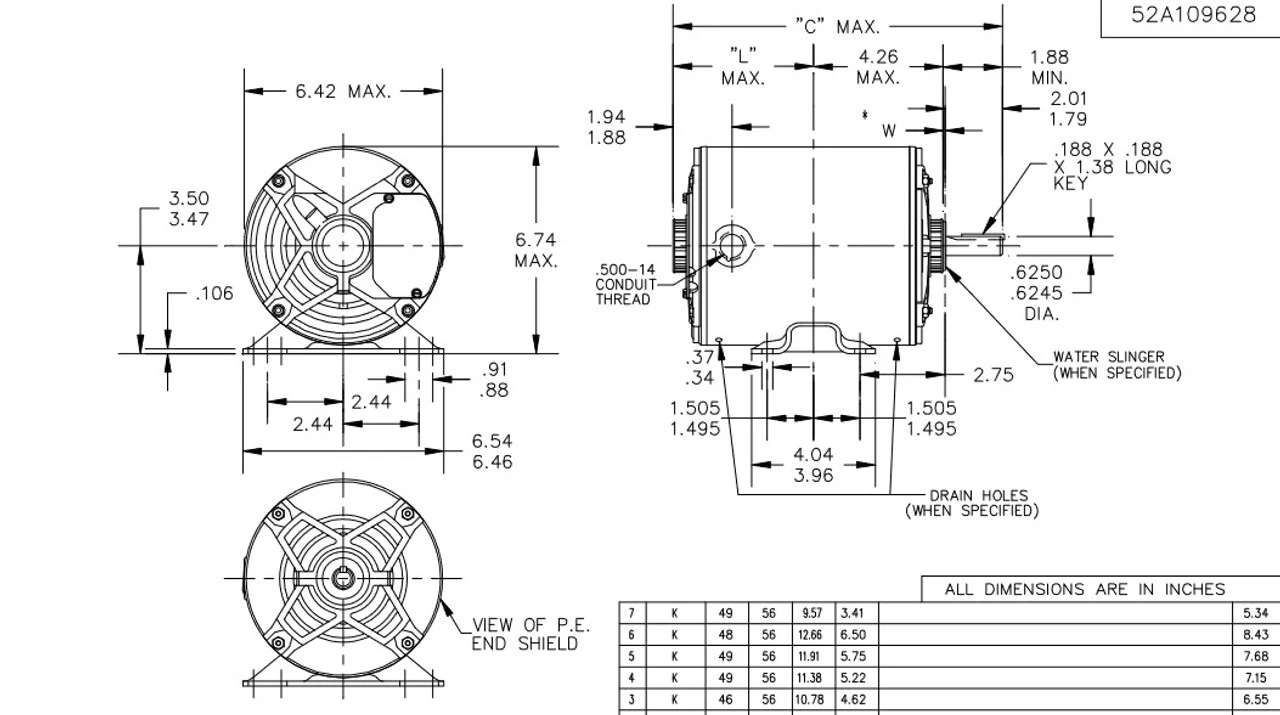

- NEMA 56 frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated 5K49PN4113
