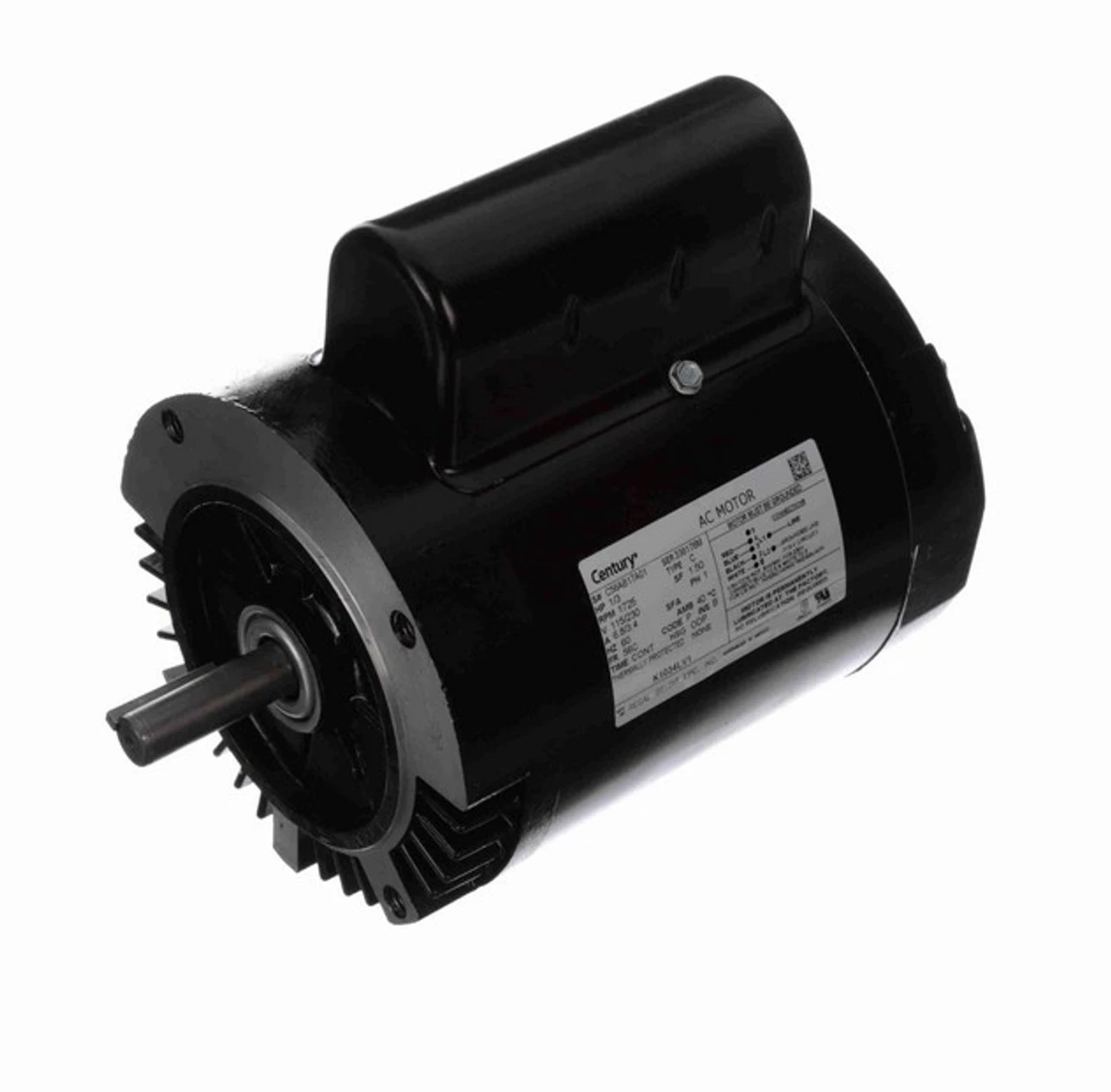

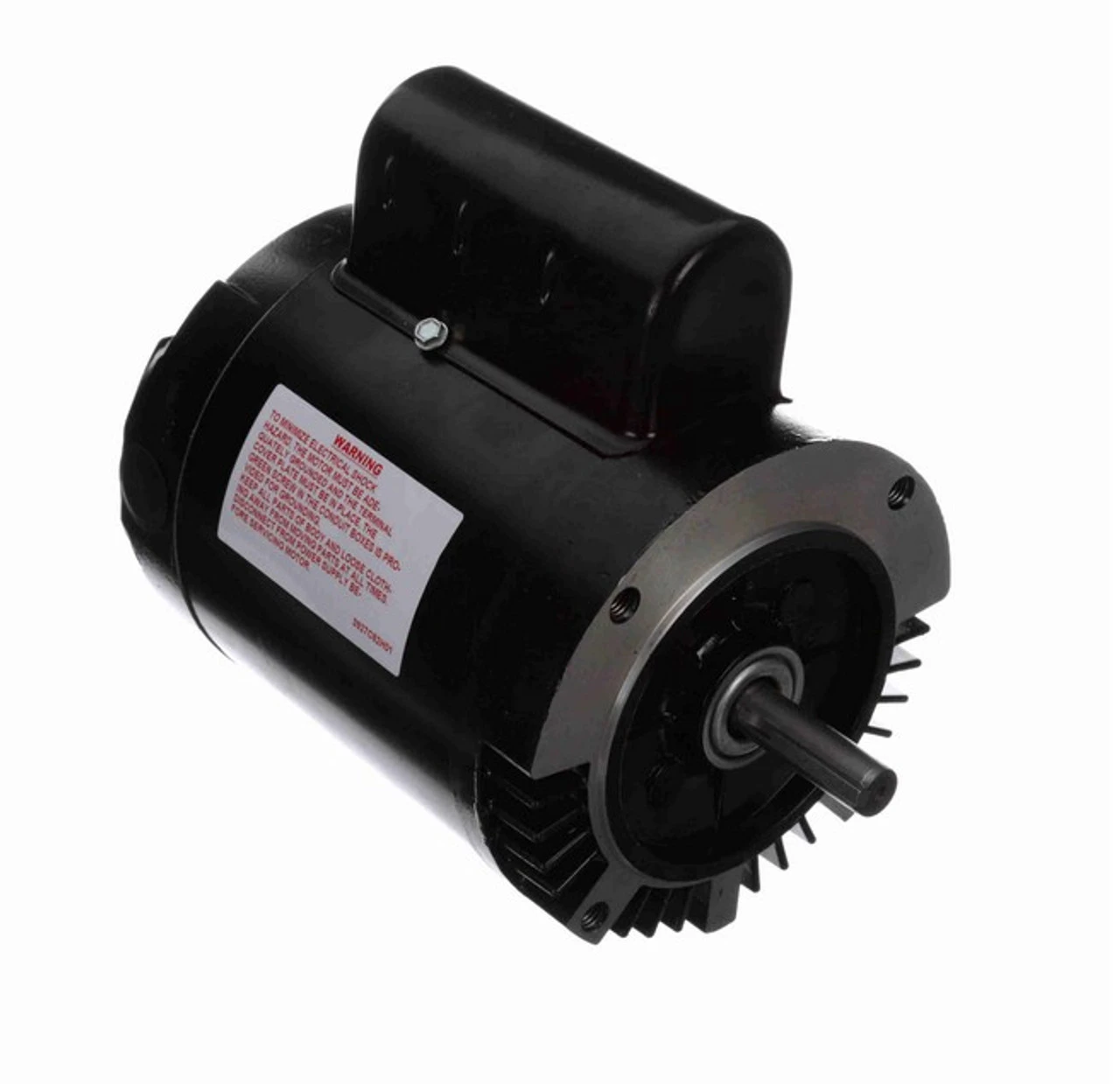

K1034LV1 Century 1/3 Hp 1800 RPM 56C Frame ODP (no Base) 115/230V Motor

Original price was: $204.60.Current price is: $96.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/3 hp 1800 RPM, 6.8/3.4 amps 115/230 Volts 60hz. Capacitor Start – Induction Run Motor
NEMA 56C Rolled Steel frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.5, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

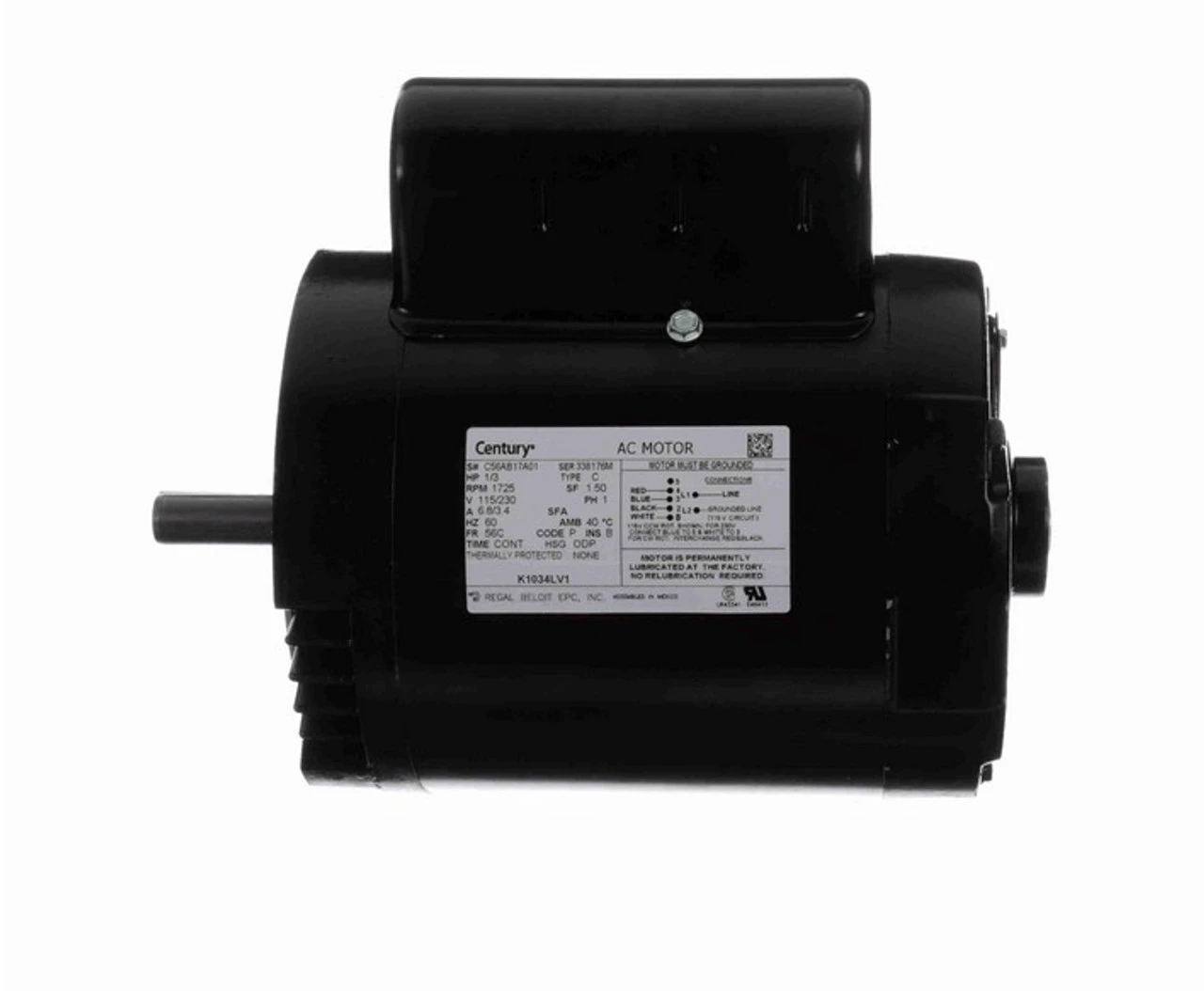

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. K1034LV1
