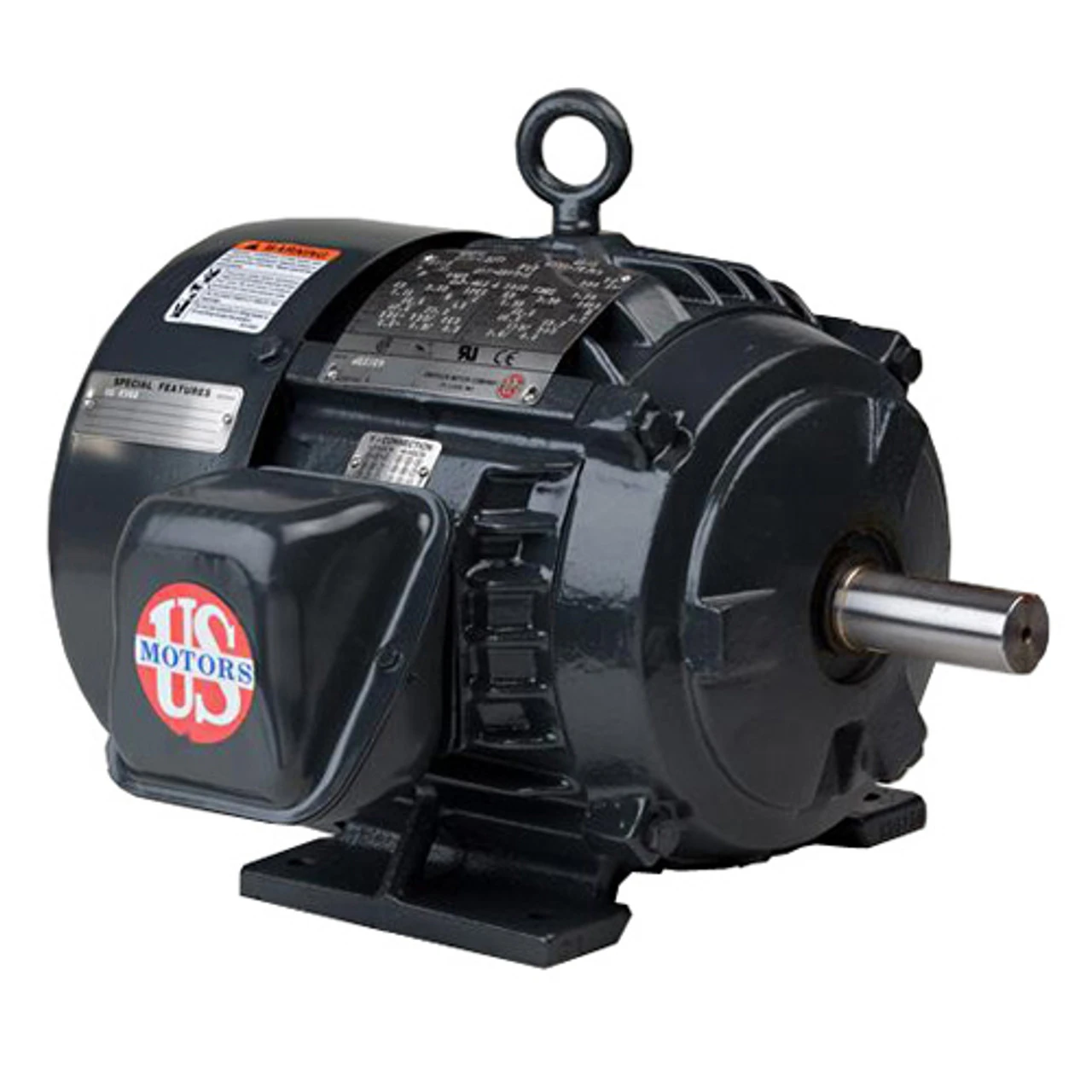

HW3V2G2 Nidec 3 Hp 1800 RPM 182T Frame (Rigid Base) 575V TEFC 3-Phase Cooling Tower Motor

• 3 hp 1800 RPM, 3.2 amps 575 Volts 60 Hz Three Phase Motor

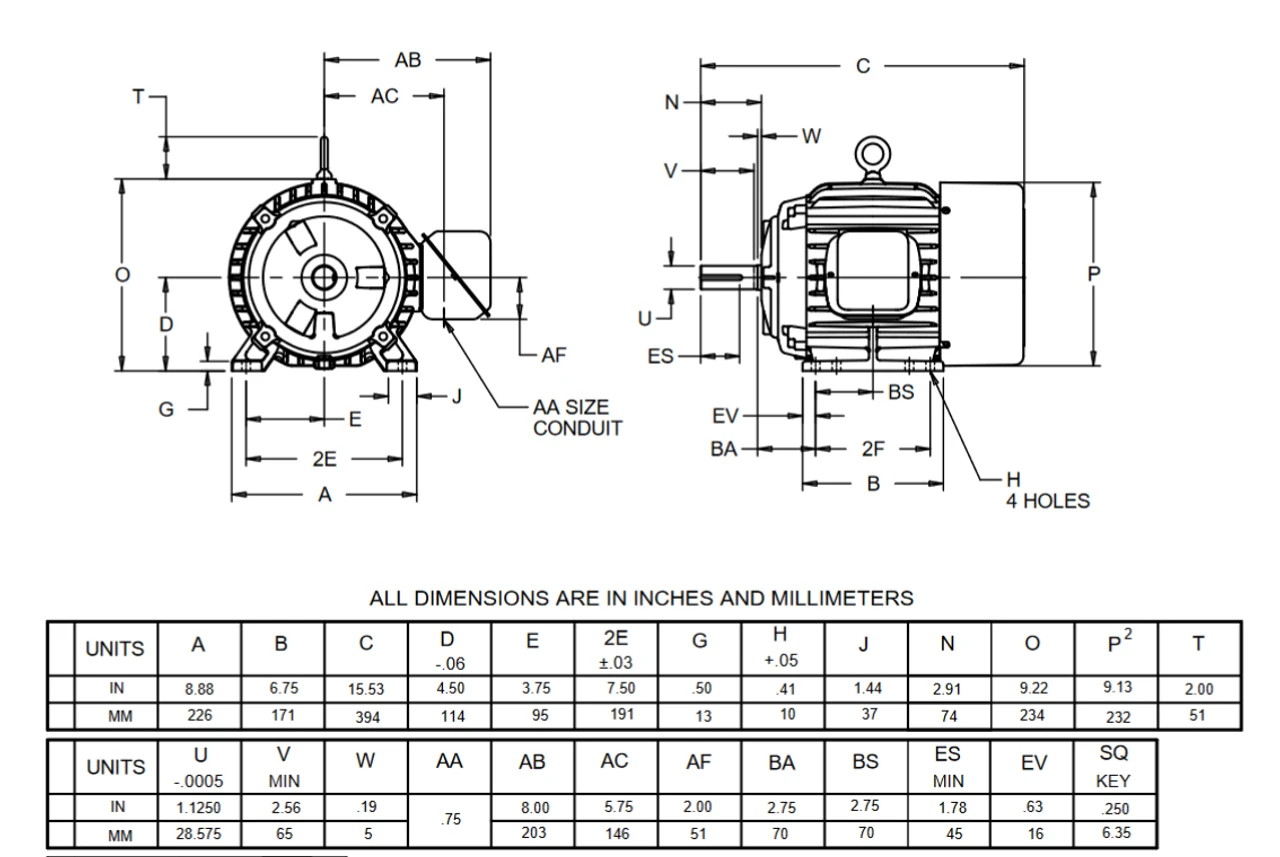

• NEMA 182T Cast Iron frame Keyed Shaft 1 1/8″ Diameter x 2 3/4″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

For use in cooling tower and evaporation cooler applications. Corrosion resistant, Inverter Duty (10:1 speed range). Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FH35
