HD2V2BC Nidec 2 Hp 1800 RPM 145TC (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

• 2 hp 1800 RPM, 5.3/2.7 amps 230/460 Volts 60 Hz Three Phase Motor

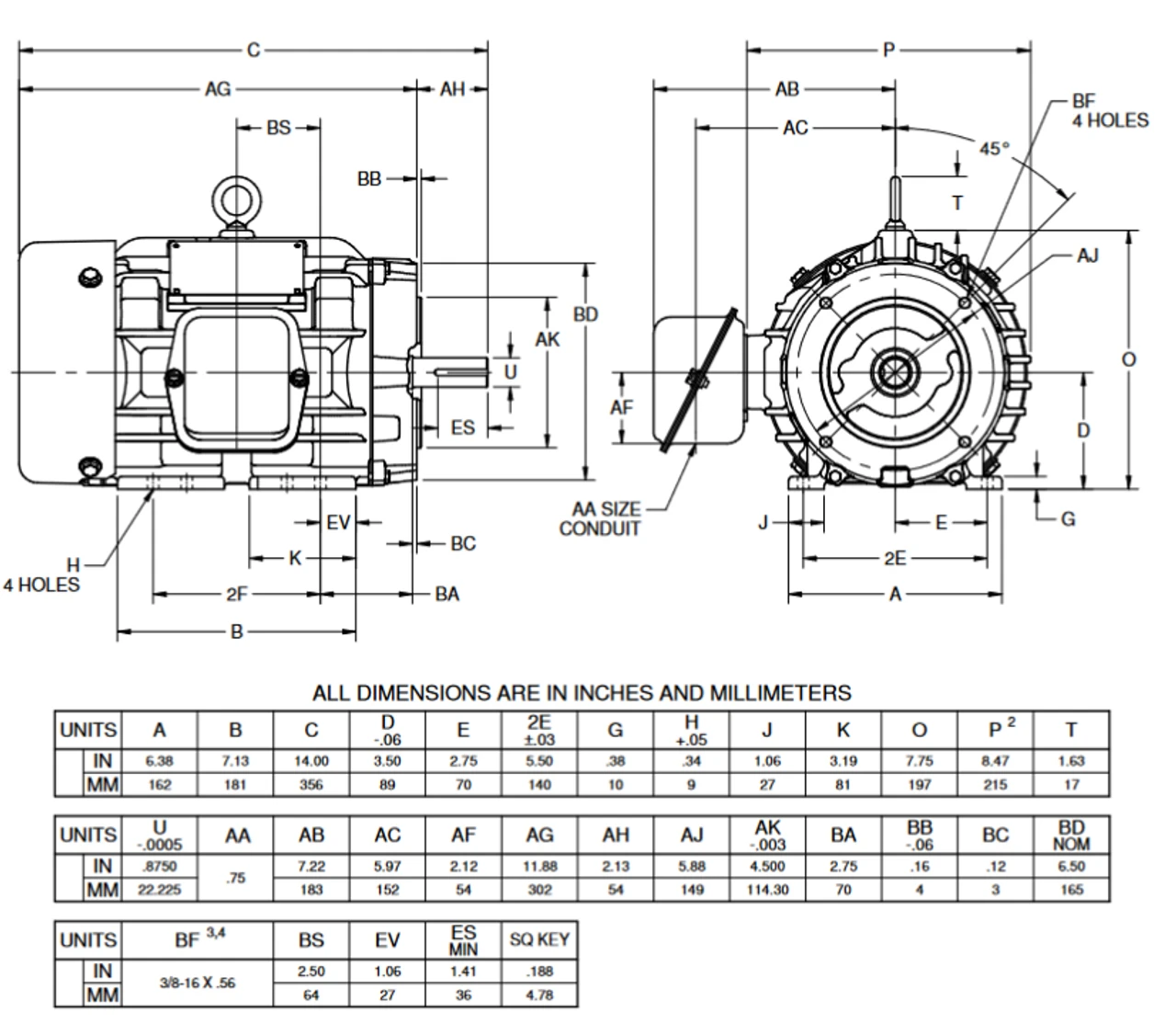

• NEMA 145TC Cast Iron Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.15 Overload protection = None
• C-Face Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools in hostile environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GG61
