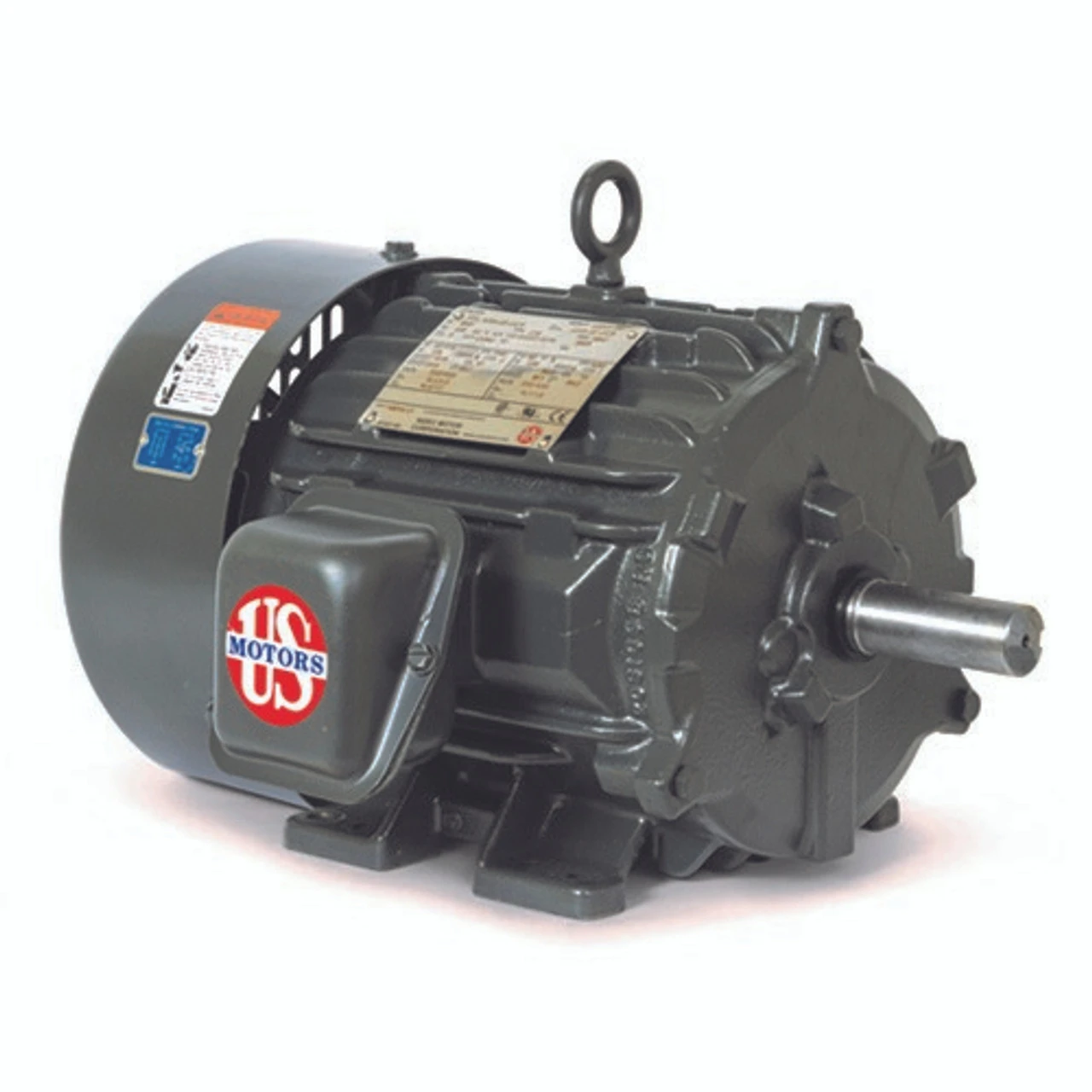

HD15P1H Nidec 15 Hp 3600 RPM 254T Frame (Rigid Base) 200V TEFC 3-Phase Electric Motor

• 15 hp 3600 RPM, 40.0-38.0 amps 200-208 Volts 60 Hz Three Phase Motor

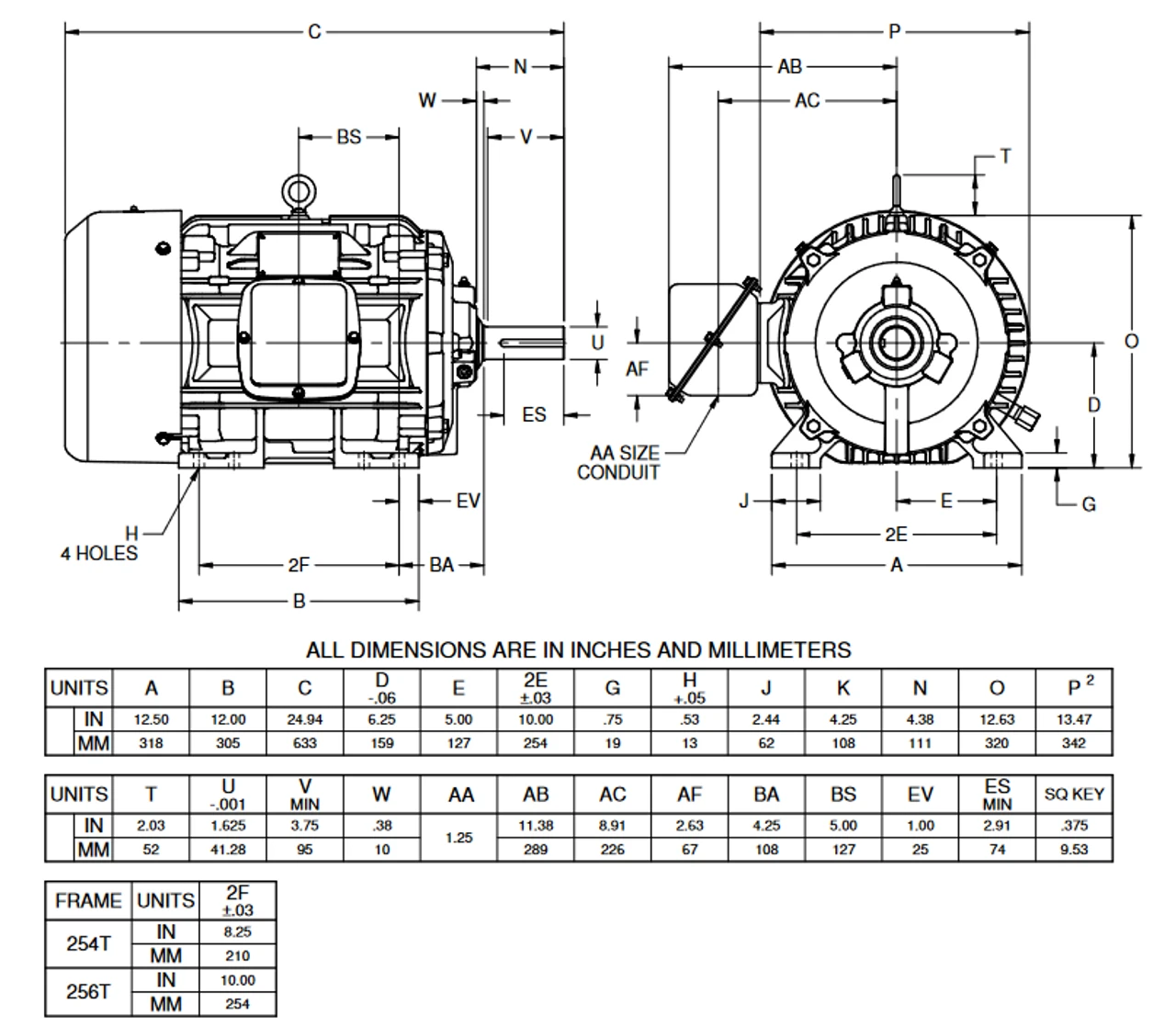

• NEMA 254T Cast Iron frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

Hostile duty motor can be used for many applications requiring a three phase electric motor. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GL48
