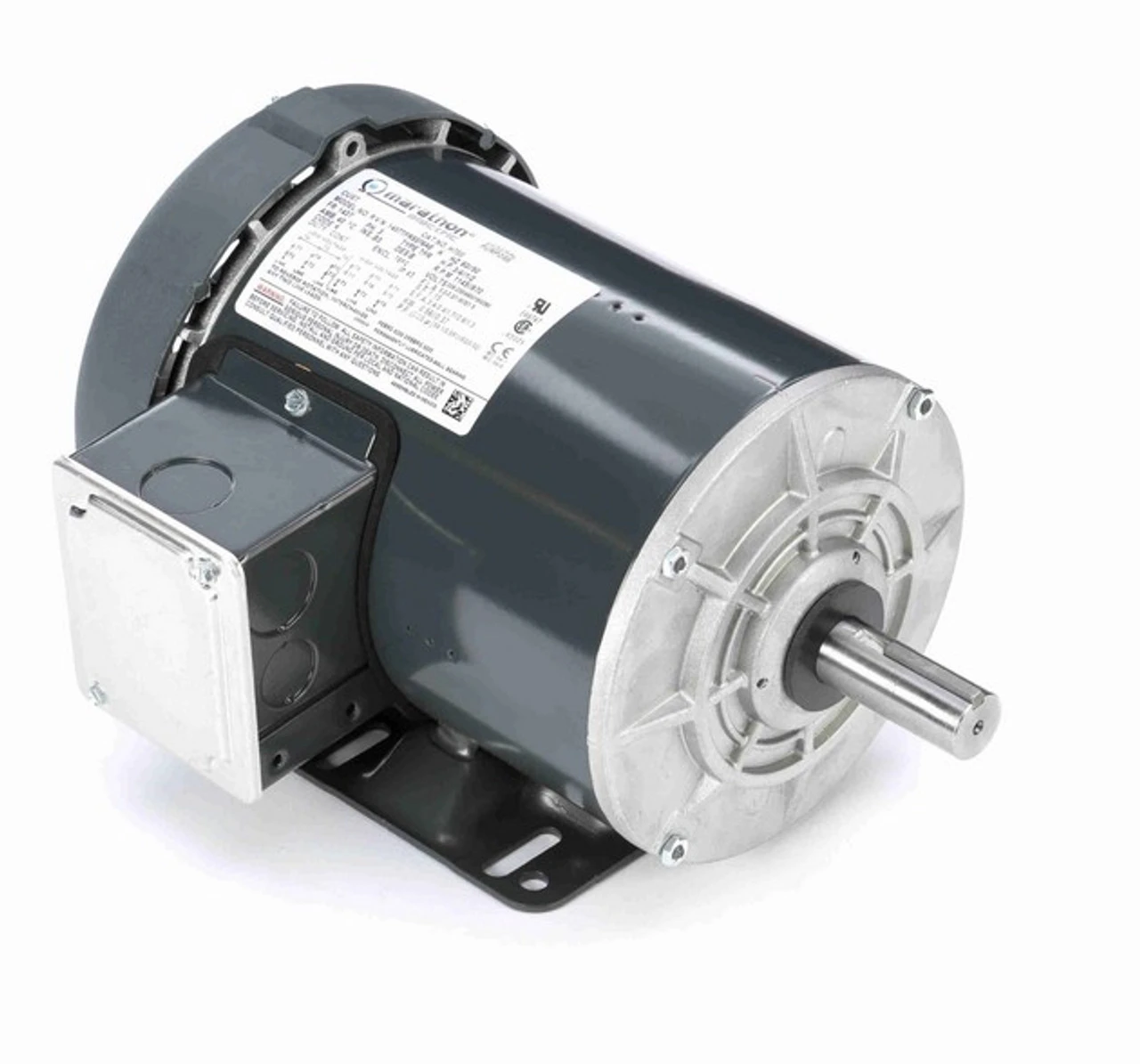

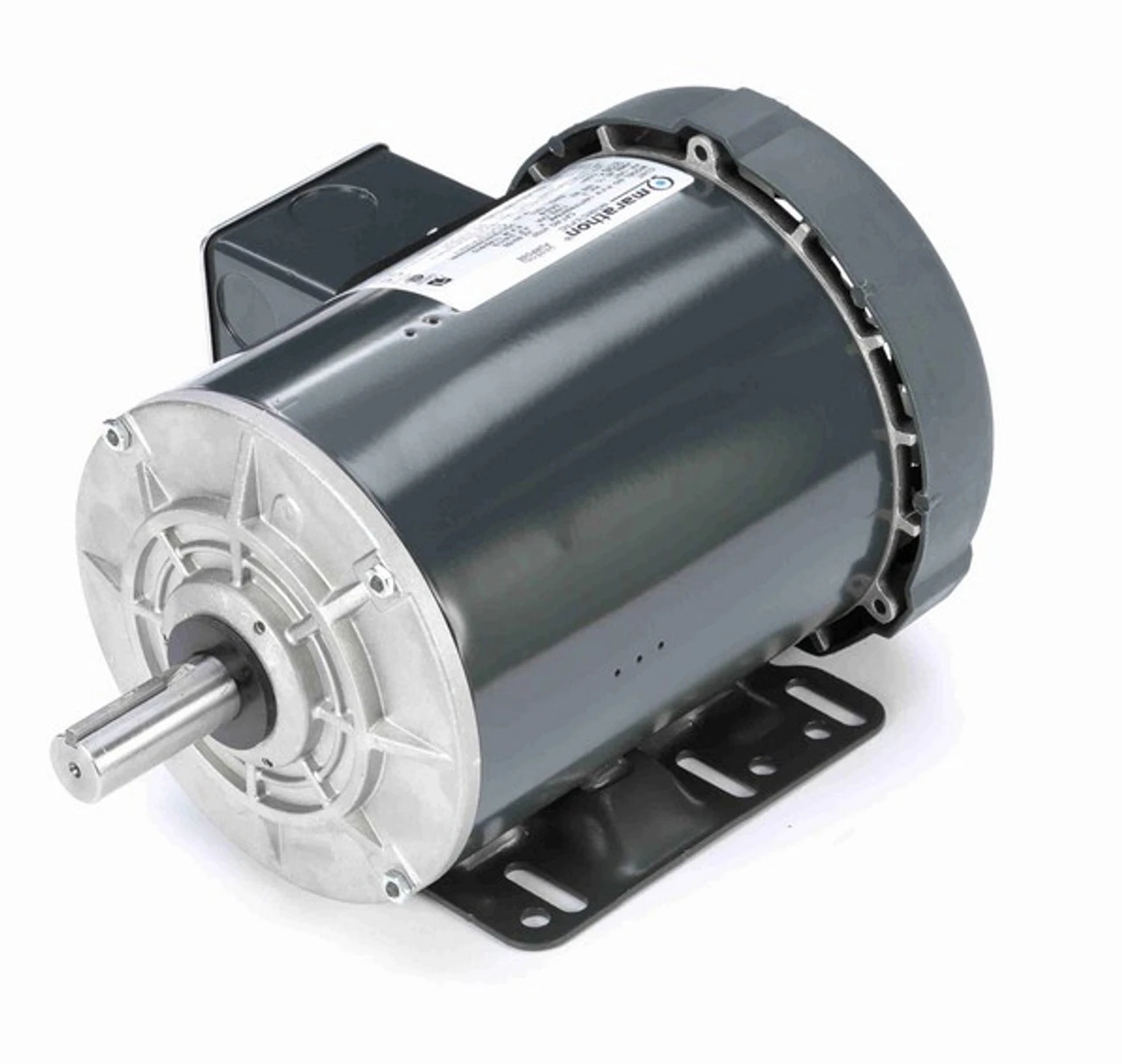

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor

• 3/4 hp 1200 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60hz. Three Phase

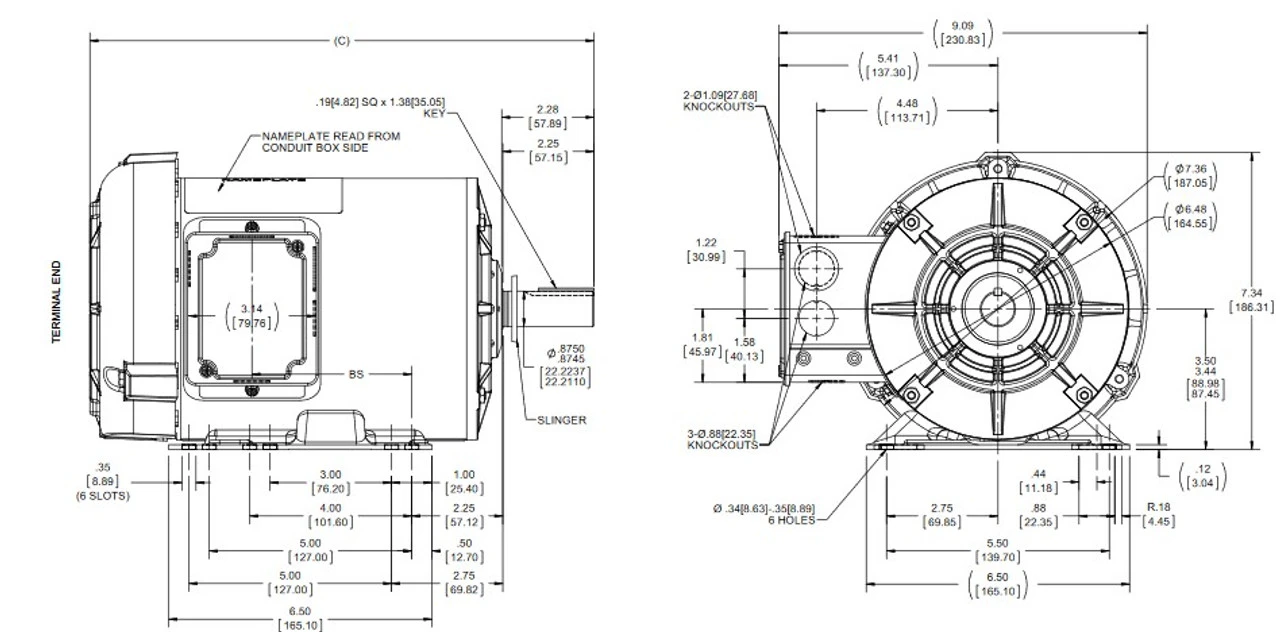

• NEMA 143T frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon # 143TTFR5376
Replaces Leeson C143T11FB2D, 121009.00
