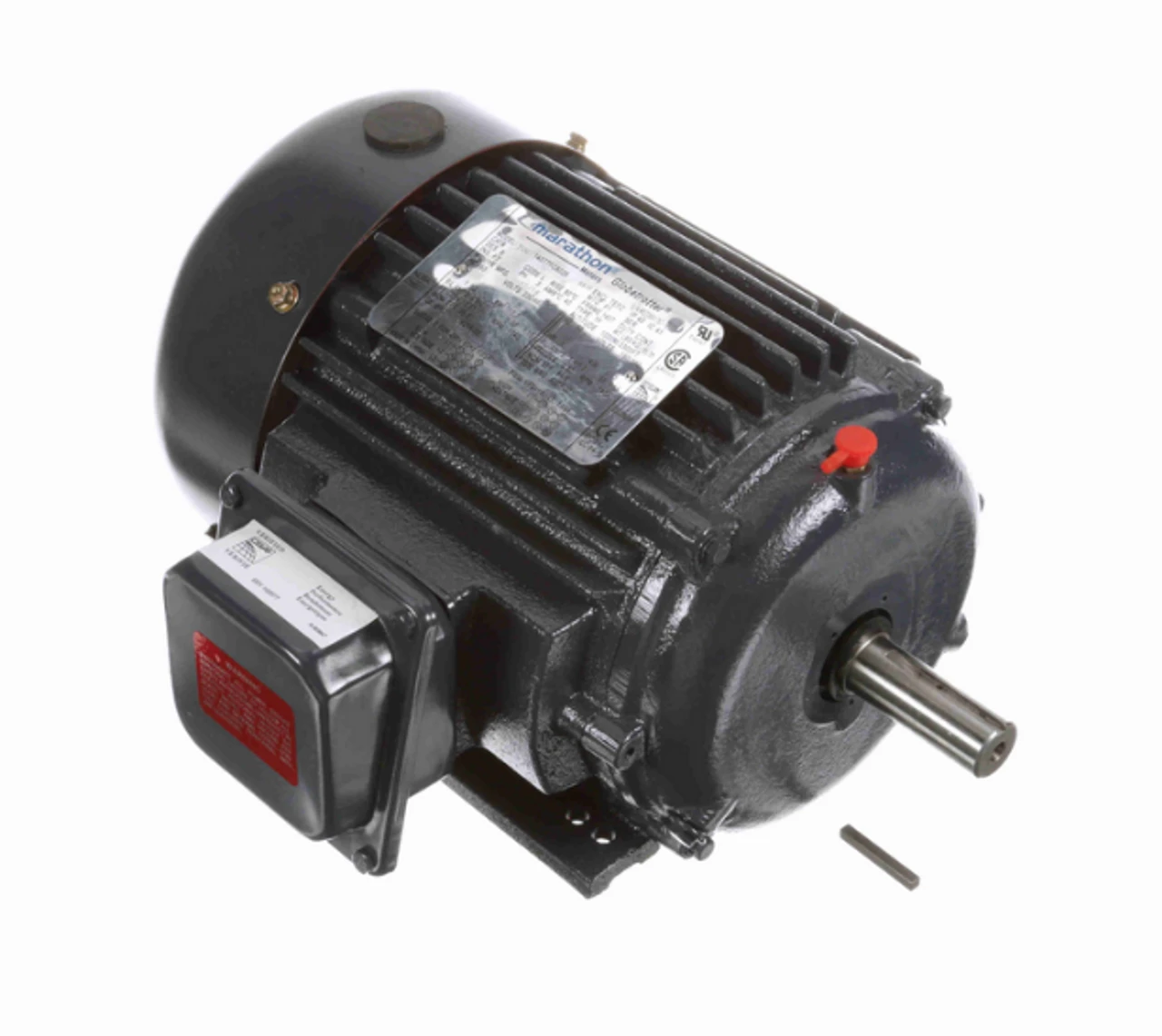

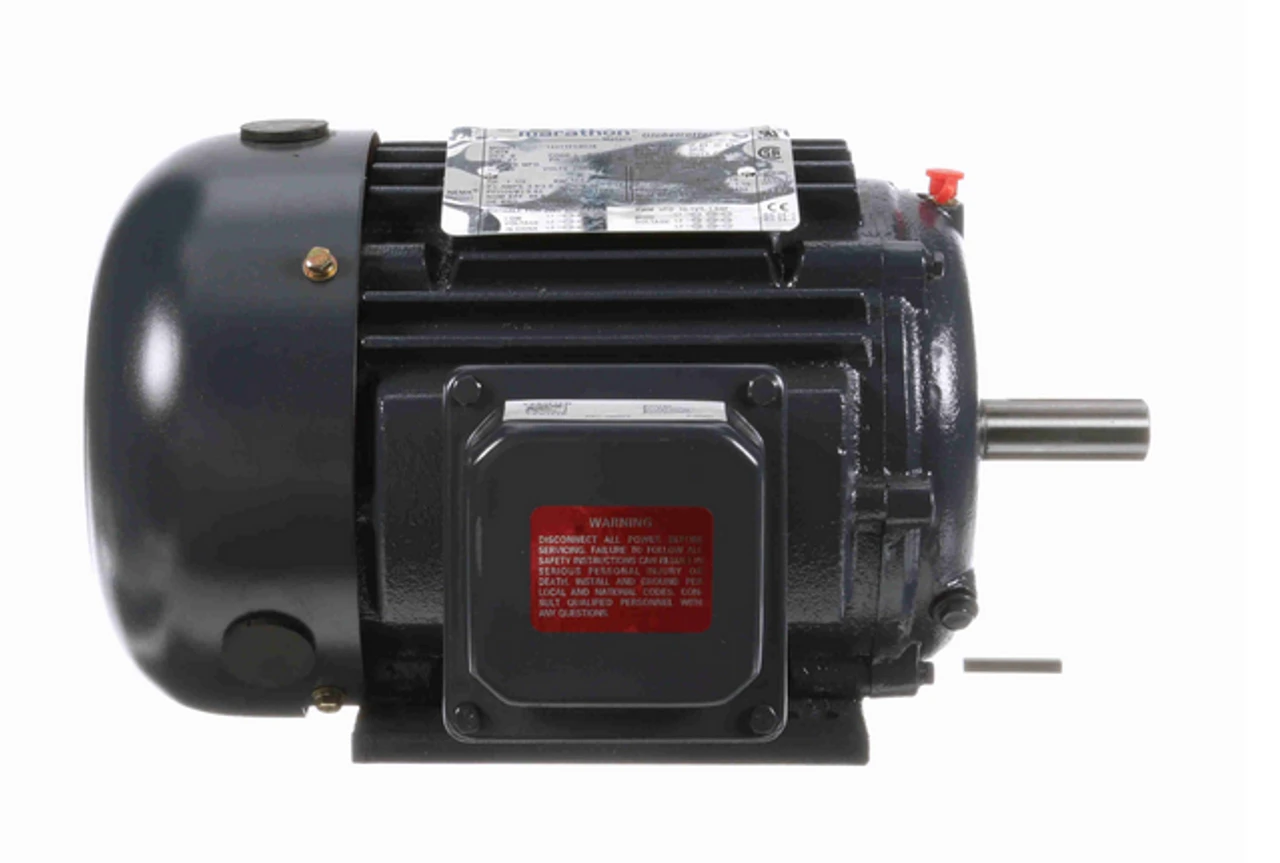

GT1004 Marathon 1-1/2 Hp 1800 RPM 3-Phase 145T Frame TEFC (rigid Base) 230/460V Motor # TE108

Original price was: $371.00.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1 1/2 hp 1800 RPM, 4.0/2.0 amps 230/460 Volts 60hz. Three Phase
NEMA 145T Cast Iron Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
Service Factor: 1.15, Overload protection = None
Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 145TTFC6026
