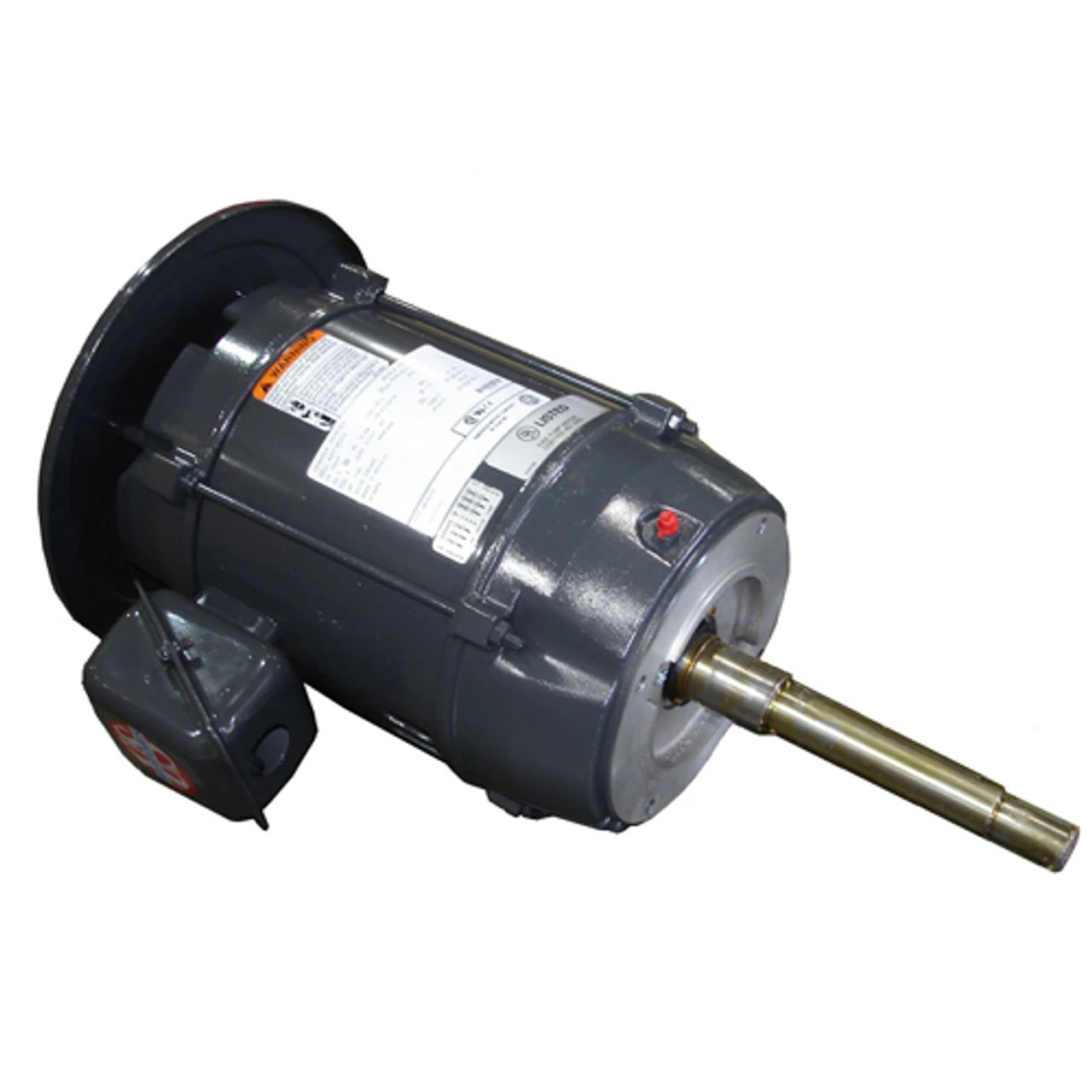

FF100E1GV Nidec 100 Hp 3600 RPM 3-phase 365JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor

• 100 HP 3600 RPM, 90 amps, 575V 60 Hz, 3 Phase.

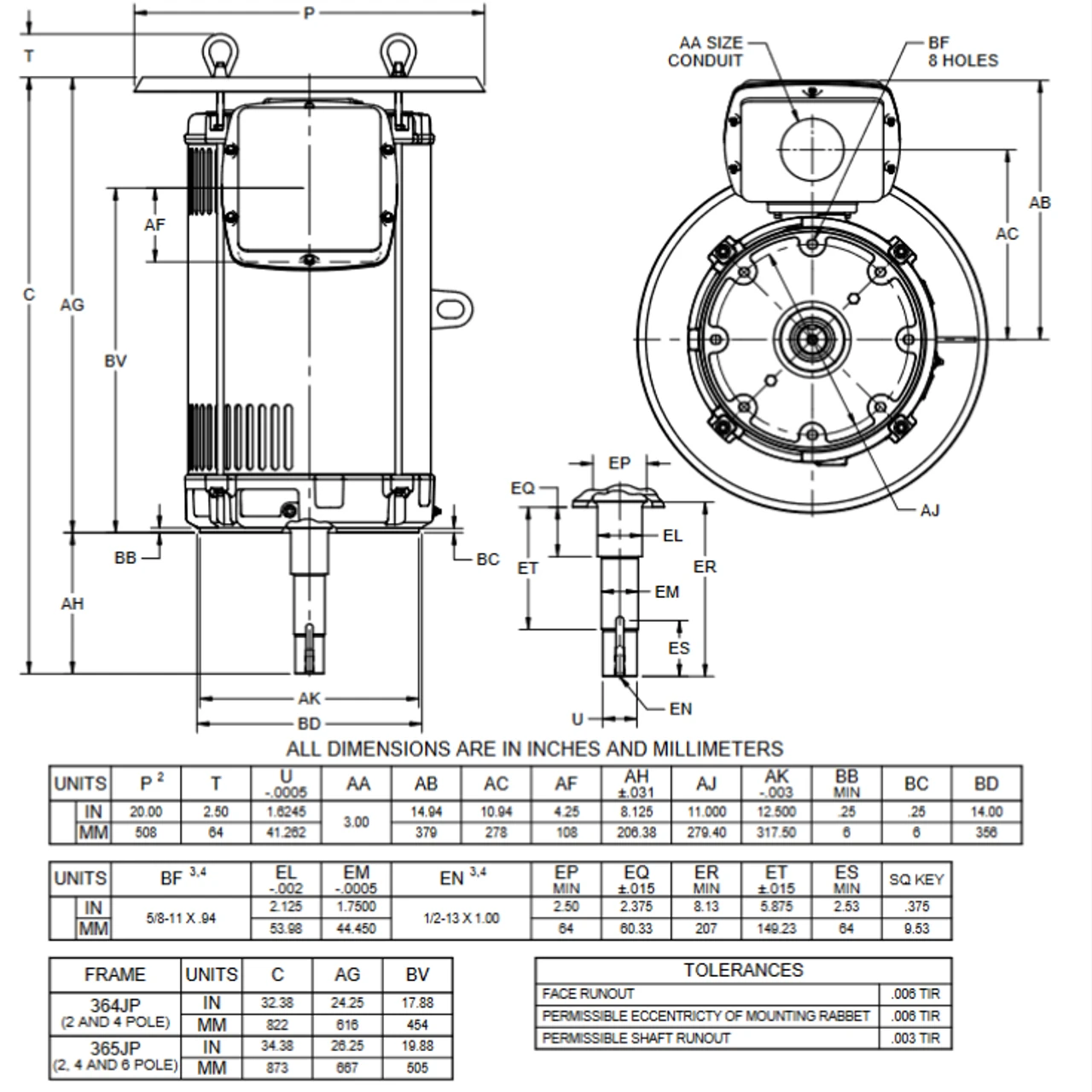

• NEMA 365JP Cast Iron Frame, JP stainless steel shaft
• 1.15 Service Factor, Class F insulation
• Reversible Rotation,
• Face Mount, No Base, Ball Bearings,

Meets NFPA 20 standards. Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drip Proof, HH18
