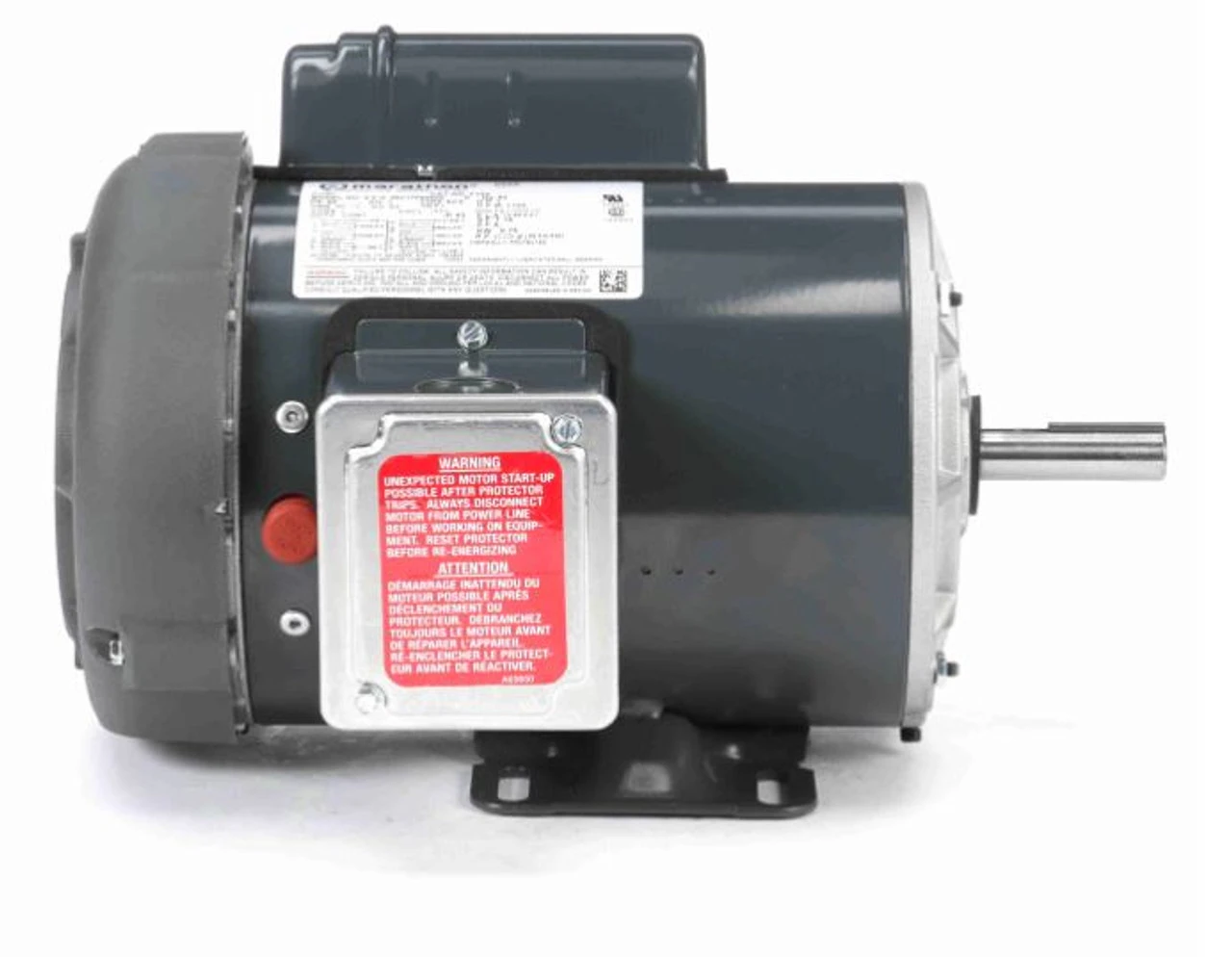

F104 Marathon 1 Hp 1725 RPM 56 Frame TEFC (Farm Duty)115/208-230 Volts Marathon – ELECTRIC MOTOR WAREHOUSE

• 1 hp 1725 RPM, 13.4/6.7 amps, 115/208-230 volts 60hz
• TEFC – Totally Enclosed Fan cooled – Electrically Reversible
• Manual Overload Protection – Service Factor 1.15
• NEMA 56 Frame – Flat Rigid base mount – 5/8″ Diameter shaft x 1 7/8″
• Class F Insulated – Ball Bearings w/low temp grease
• Overall Length – 12.82 inches

• Capacitor start design for high starting torque
• Capacitor start/capacitor run design for higher efficiency
• Low temperature manual reset thermal protector
• Totally enclosed and fully gasketed construction for dirty environments
• Condensate drains
• Shaft slinger
• 1 Year Manufacture Warranty

Agricultural Motor

Cross Ref: Model 056C17F5327, Leeson 110088.00
