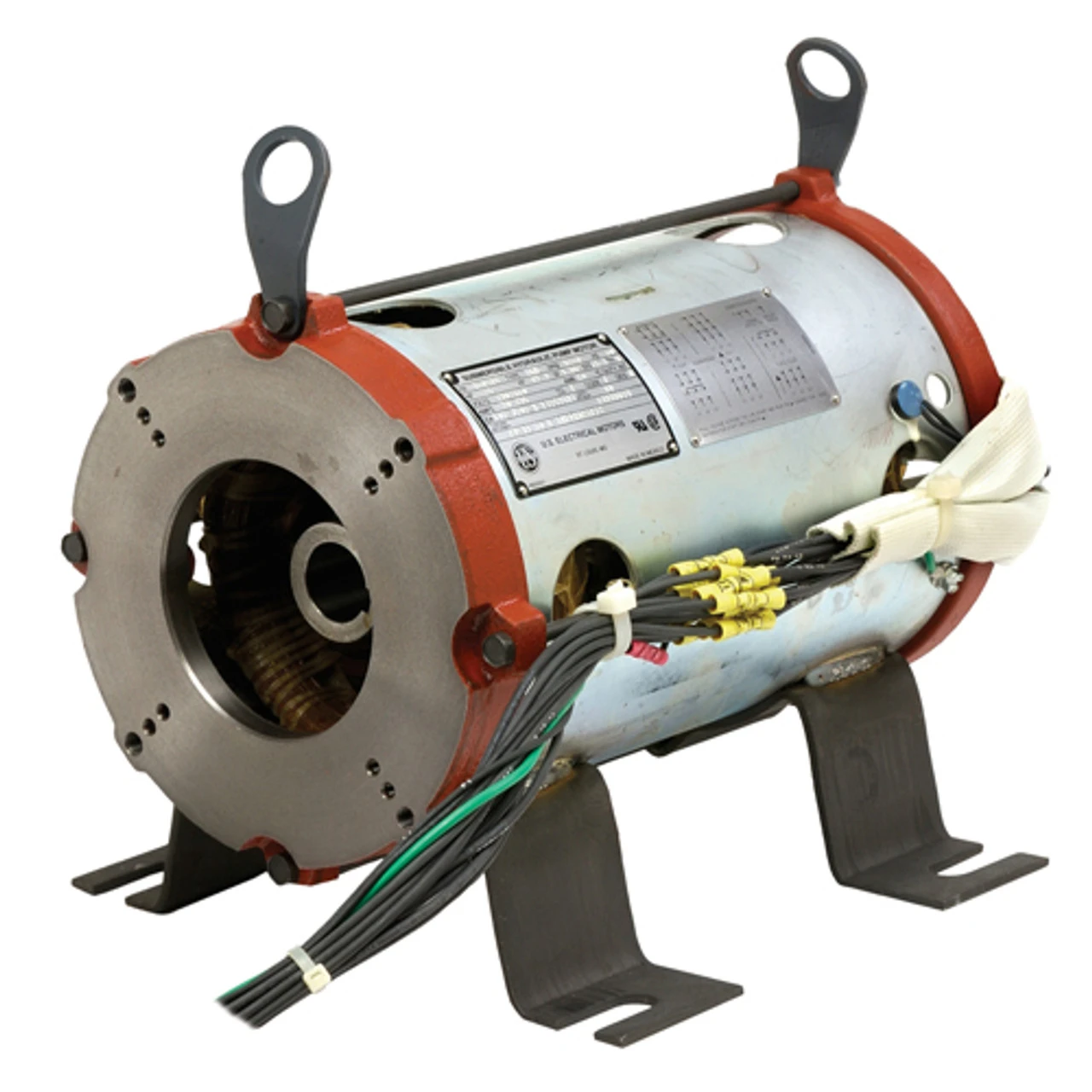

EZ20S1BZ Nidec 20 Hp 3600 RPM 230/460V 3-phase 160ZBS Frame Oil Submersible Elevator Motor

Original price was: $338.00.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

20 HP 3600 RPM, 61.0/30.0 amps, 230/460V 60 Hz. 3 Phase.

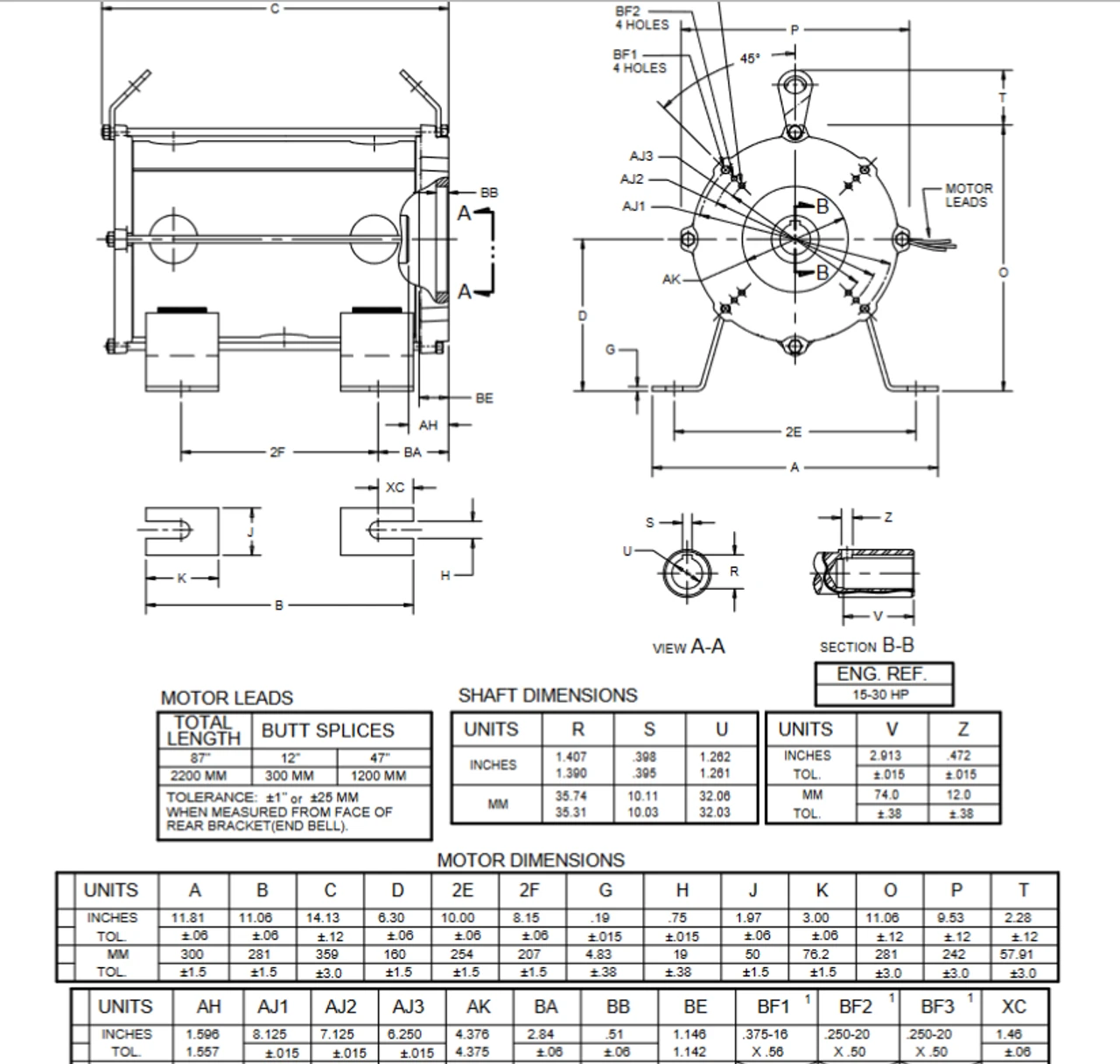

NEMA 160ZBS Zinc Plated Steel Frame, 32 mm ZBS shaft
1.0 Service Factor, Class F insulation
Reversible Rotation, 112″ leads
Horizontal Foot Mount, Single Ball Bearing Design to fit most Allweiler and IMO pumps

Motor designed for replacing elevator motors on low rise buildings with Z-flanged motors from Allweiler Pumps (SUB 140, 210, 280) and IMO Pumps (3SIC-187, 3SIC-200, 3SIC-218, 3SIC-250, 4SIC-275). Also used on L32 Flanged motors from Allwieler (SUA 140, 210, 280, 440) 1 Year Manufacture Warranty. J199
