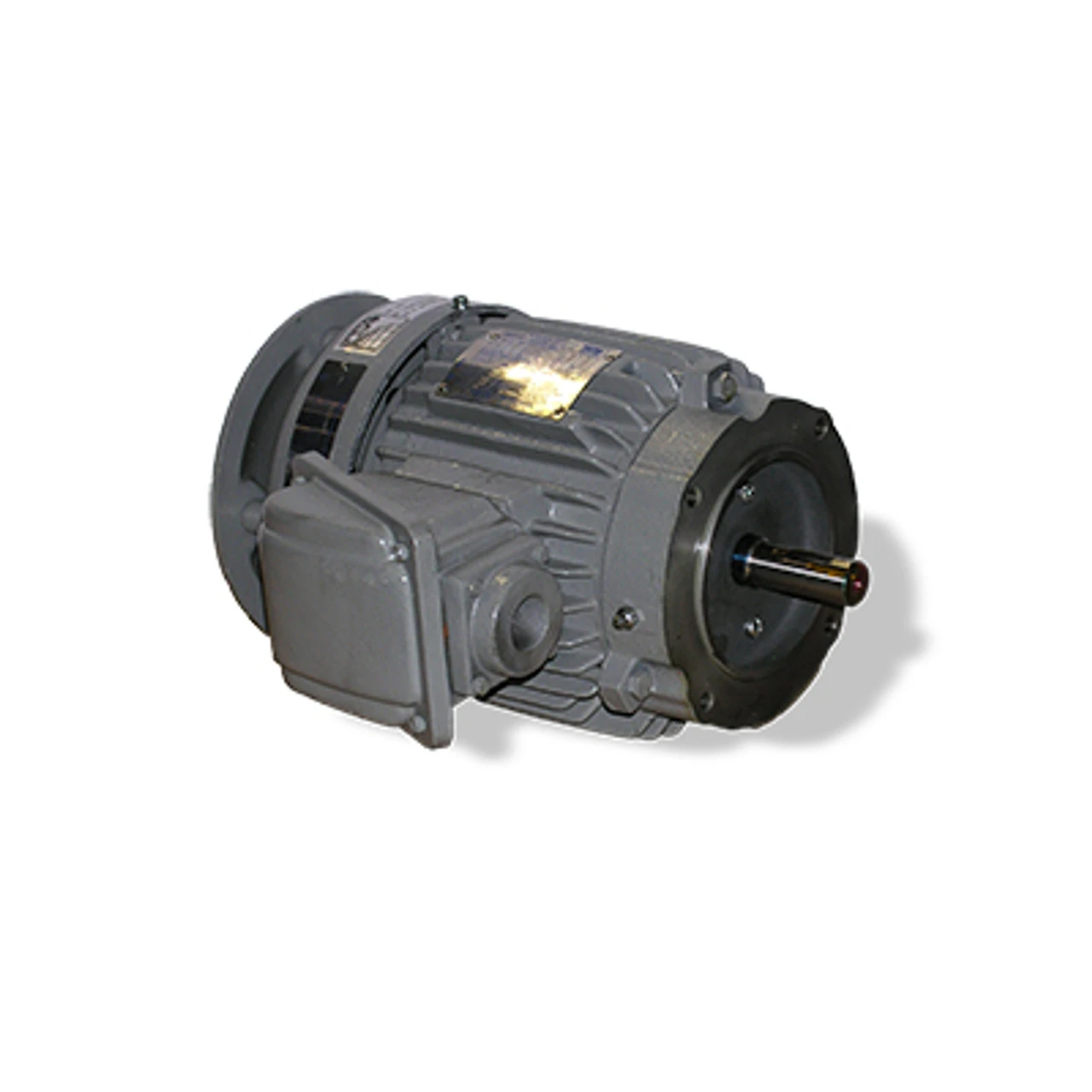

EPV0504C TECO-Westinghouse 50 Hp 1800 RPM 326TC Vertical 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor
Original price was: $328.00.$97.99Current price is: $97.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 50 hp 1800 RPM, 113.8/59.9 amps 230/460 Volts 60Hz. Three Phase
- NEMA 326TC Frame, 5 x 2 1/8″ Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
