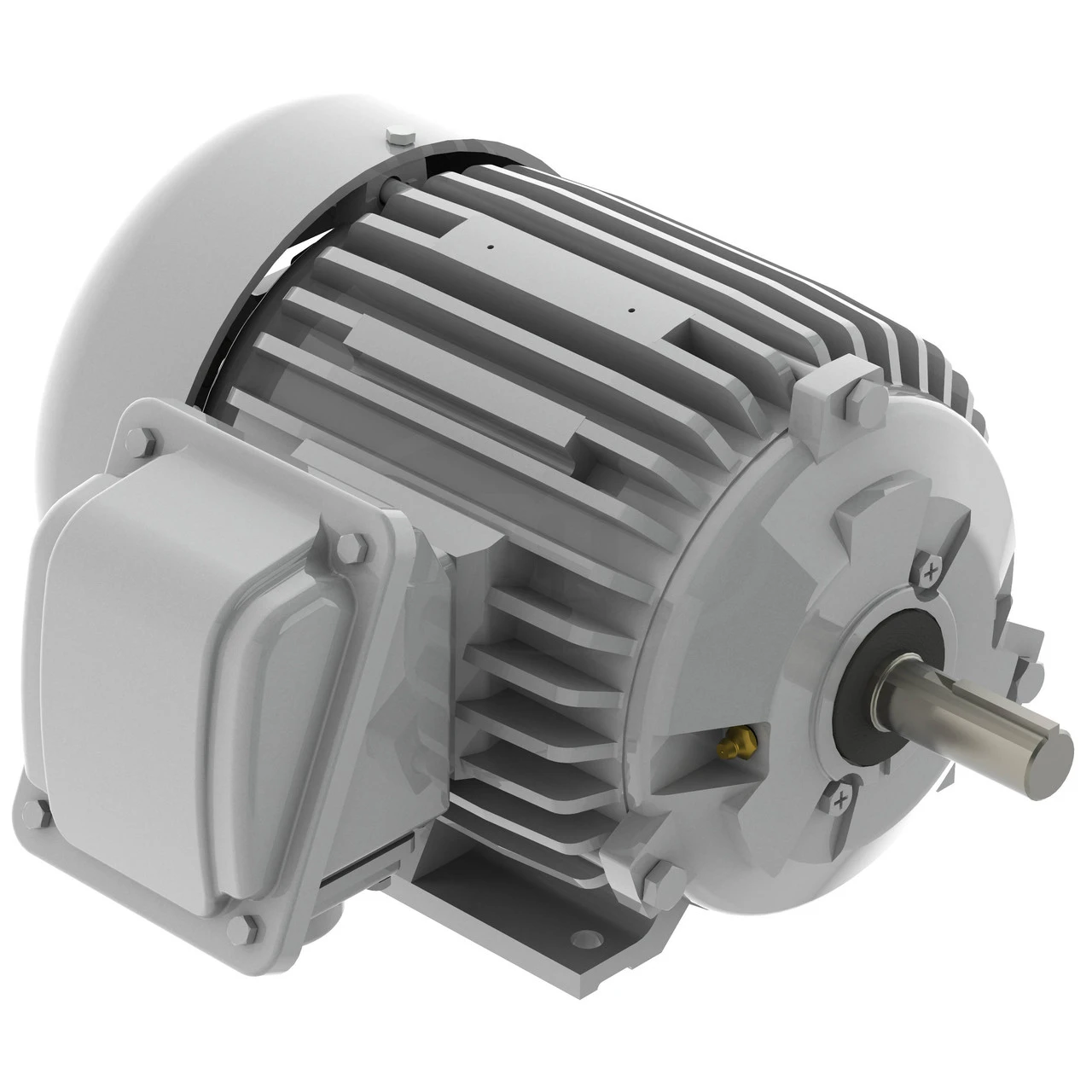

EP0302 TECO Westinghouse 30 Hp 3600 RPM 286TS Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor
Original price was: $379.00.$95.99Current price is: $95.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 30 hp 3600 RPM, 66.4/33.2 amps 230/460 Volts 60Hz. Three Phase

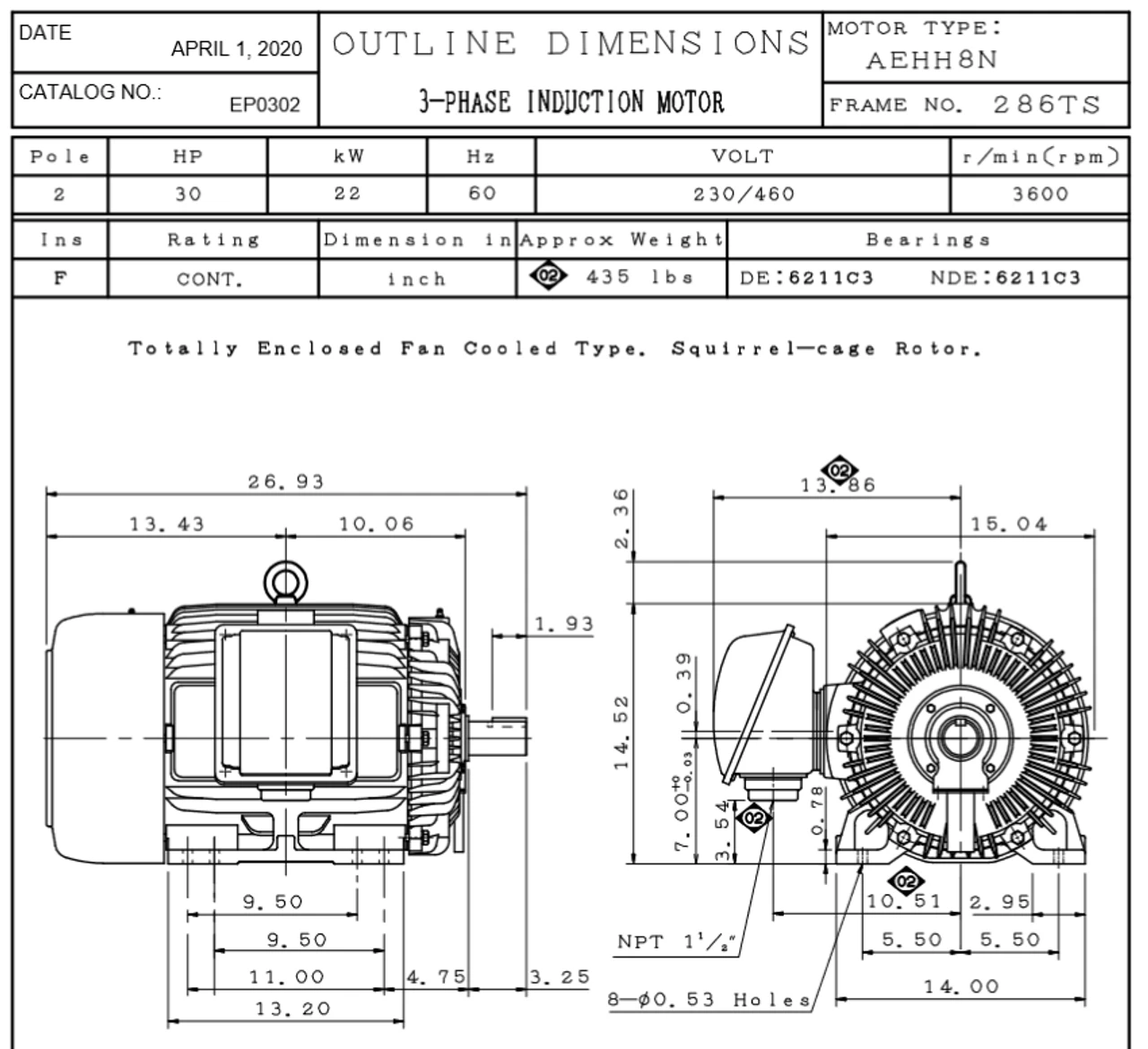

- NEMA 286TS Frame, 3 1/4 x 1 5/8″ Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
