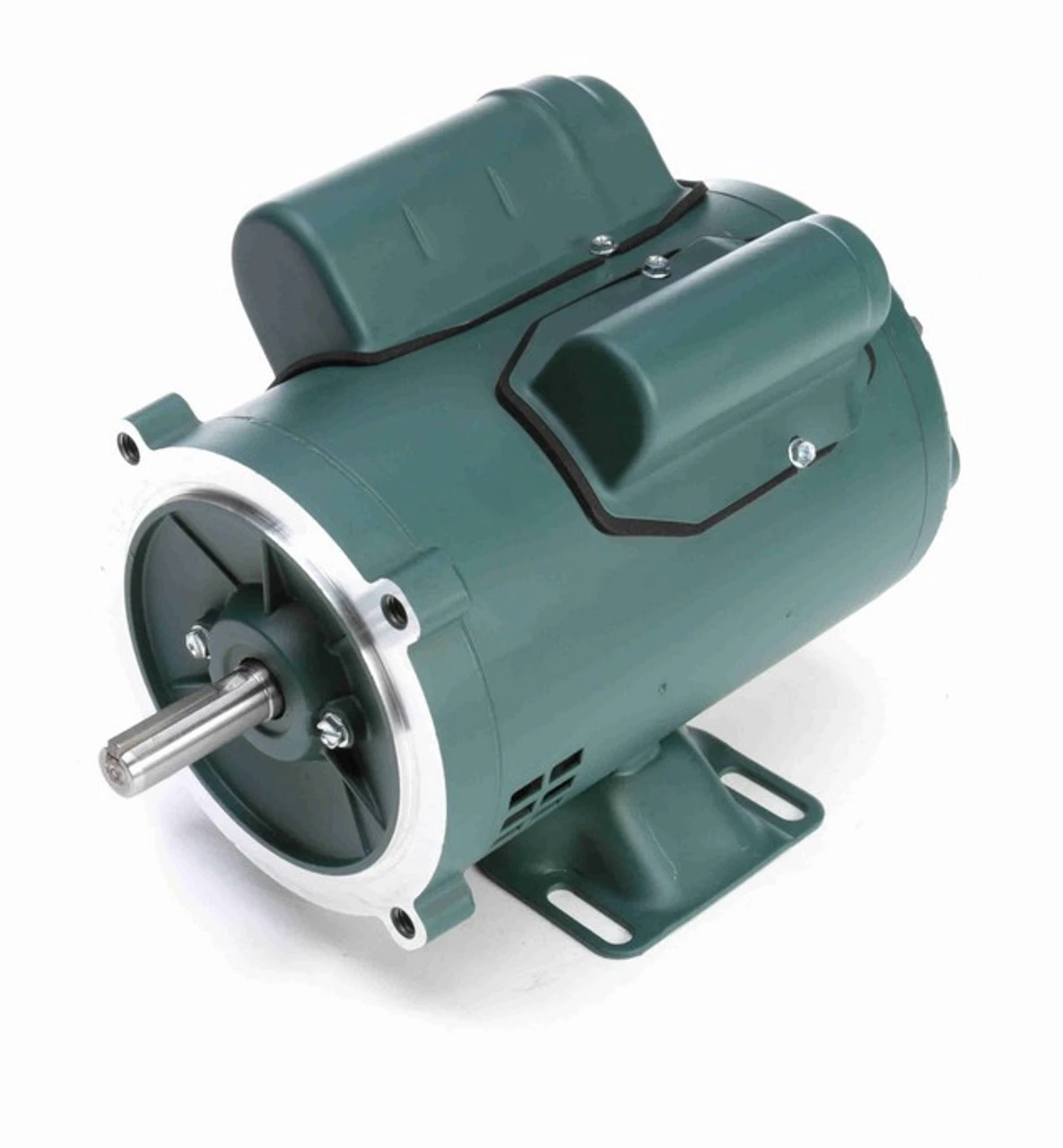

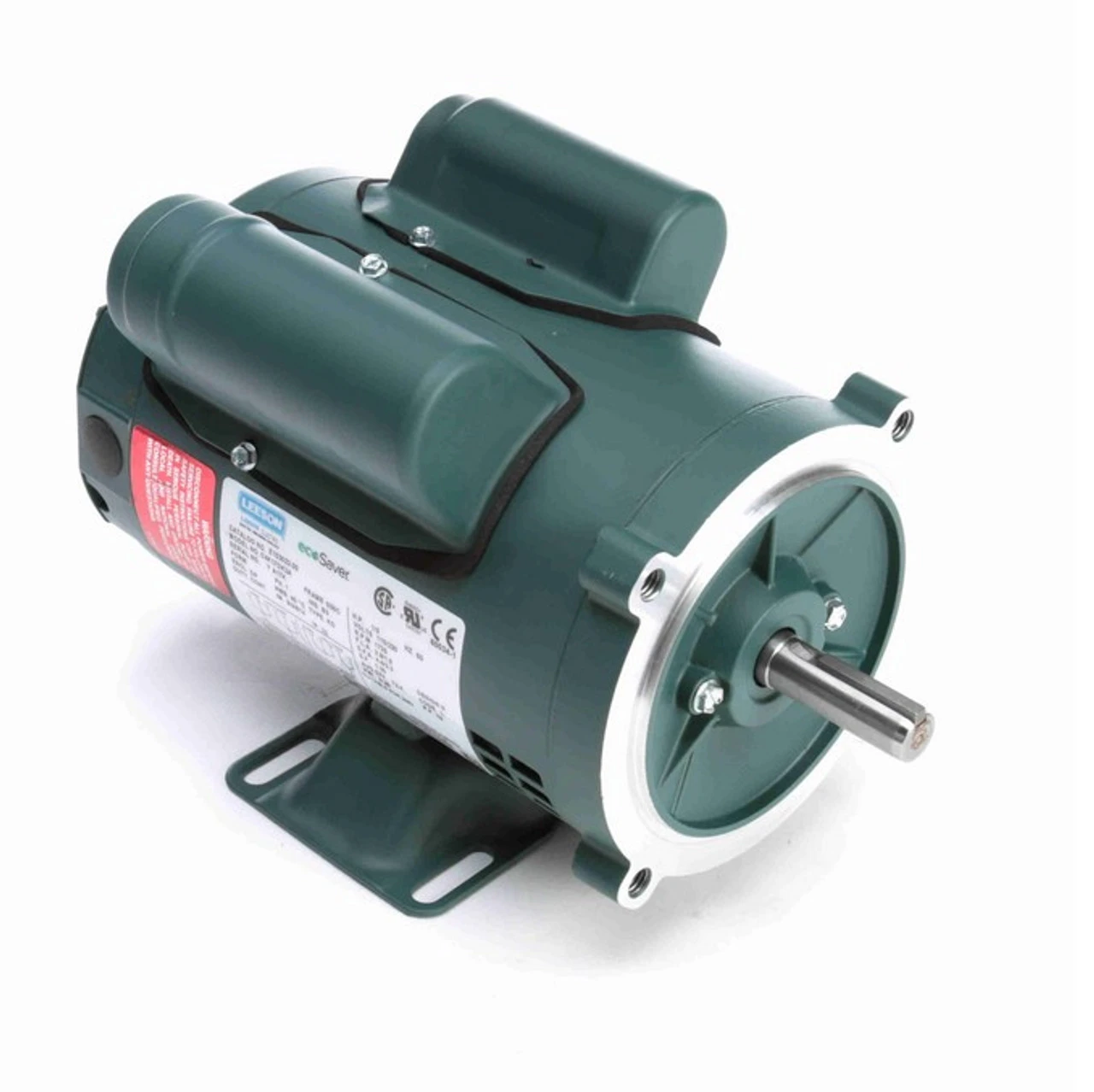

E103023.00 Leeson 1/3 Hp 1800 RPM 115/230V 56C Frame ODP Rigid-Base C-Face Motor

Original price was: $379.00.Current price is: $97.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Single Phase Capacitor Start/Run Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.35 – Overload Protection = None
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

General purpose motor with a C-face mount. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. E103023.00
