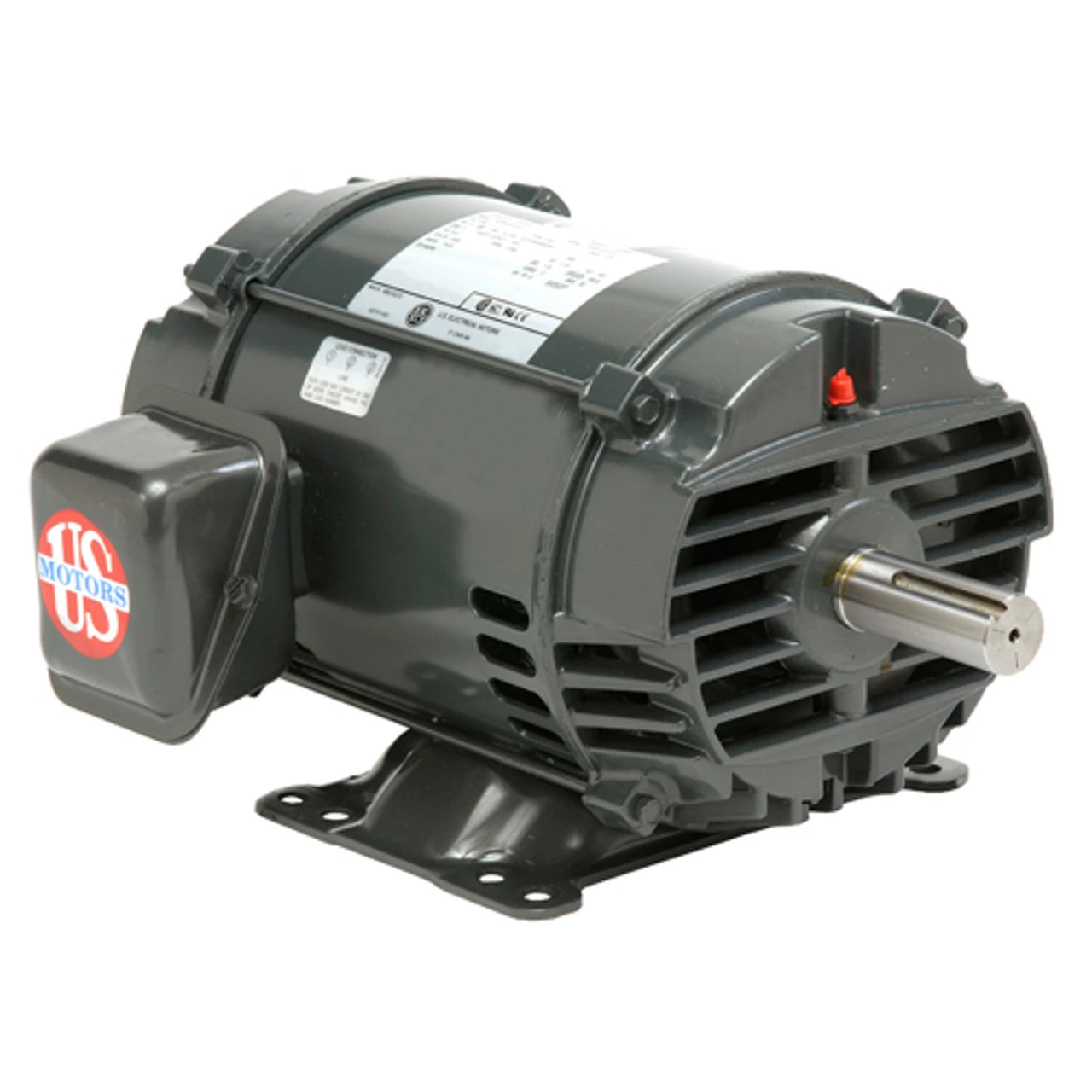

DH40S2GF Nidec 40 Hp 1800 RPM 575V ODP 286T (Rigid Base) 3-Phase Dry Elevator Motor

• 40 hp 1800 RPM, 39.0 amps 575 Volts 60 Hz Three Phase Motor
• NEMA 286T Cast Iron End Bells, Keyed Shaft 1 5/8″ Diameter x 4″
• Service Factor: 1.0 Overload protection = None, Intermittent Duty
• Rigid Base Mount, Ball Bearings, Class F Insulation,
• 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72″ lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW55
