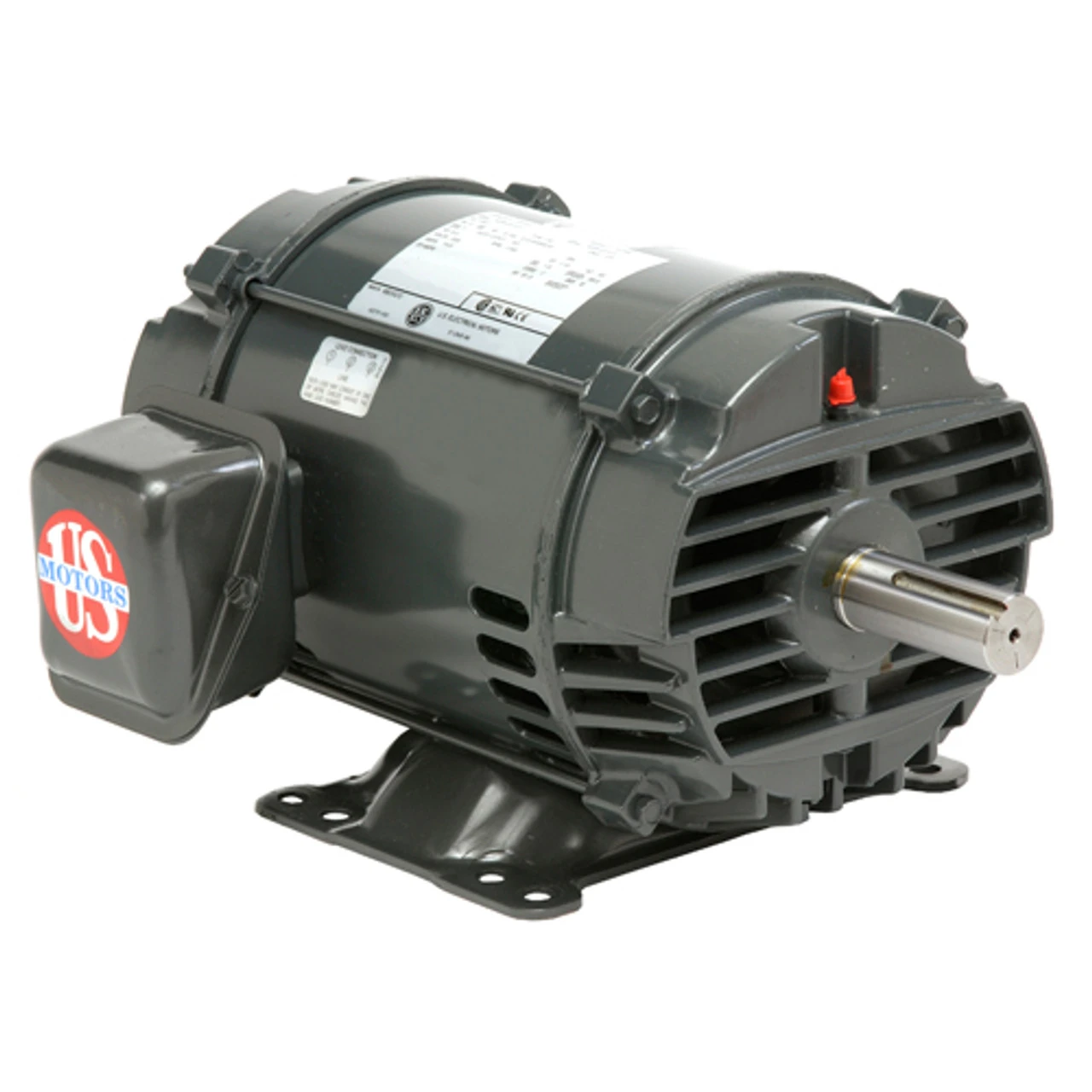

DH40S2BF Nidec 40 Hp 1800 RPM 230/460V ODP 286T (Rigid Base) 3-Phase Dry Elevator Motor

Original price was: $335.00.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

    40 hp 1800 RPM, 96.0/48.0 amps 230/460 Volts 60 Hz Three Phase Motor

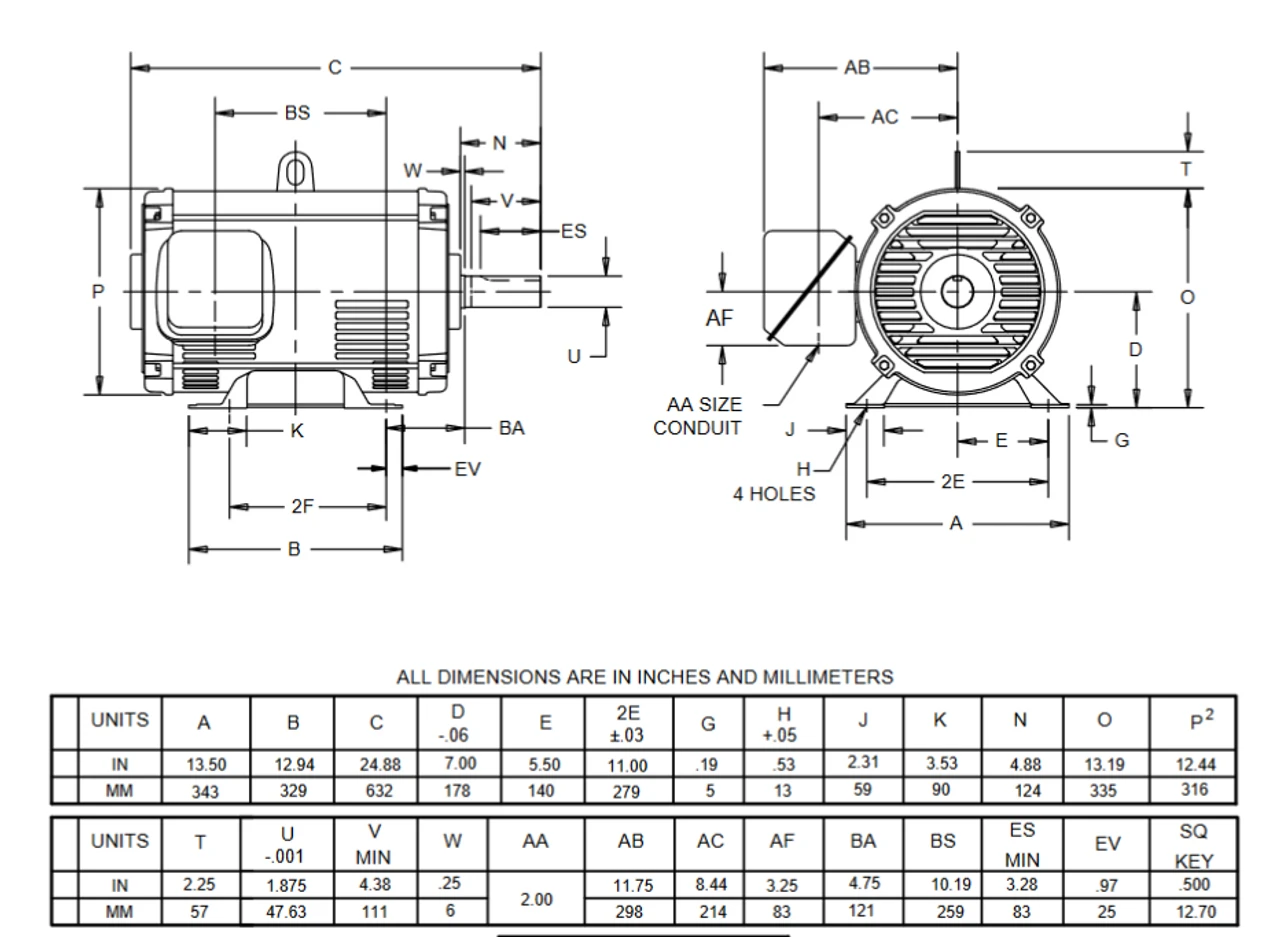

    NEMA 286T Cast Iron End Bells, Keyed Shaft 1 7/8″ Diameter x 4 7/8″
    Service Factor: 1.0 Overload protection = None, Intermittent Duty
    Rigid Base Mount, Ball Bearings, Class F Insulation,
    1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72″ lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW54
