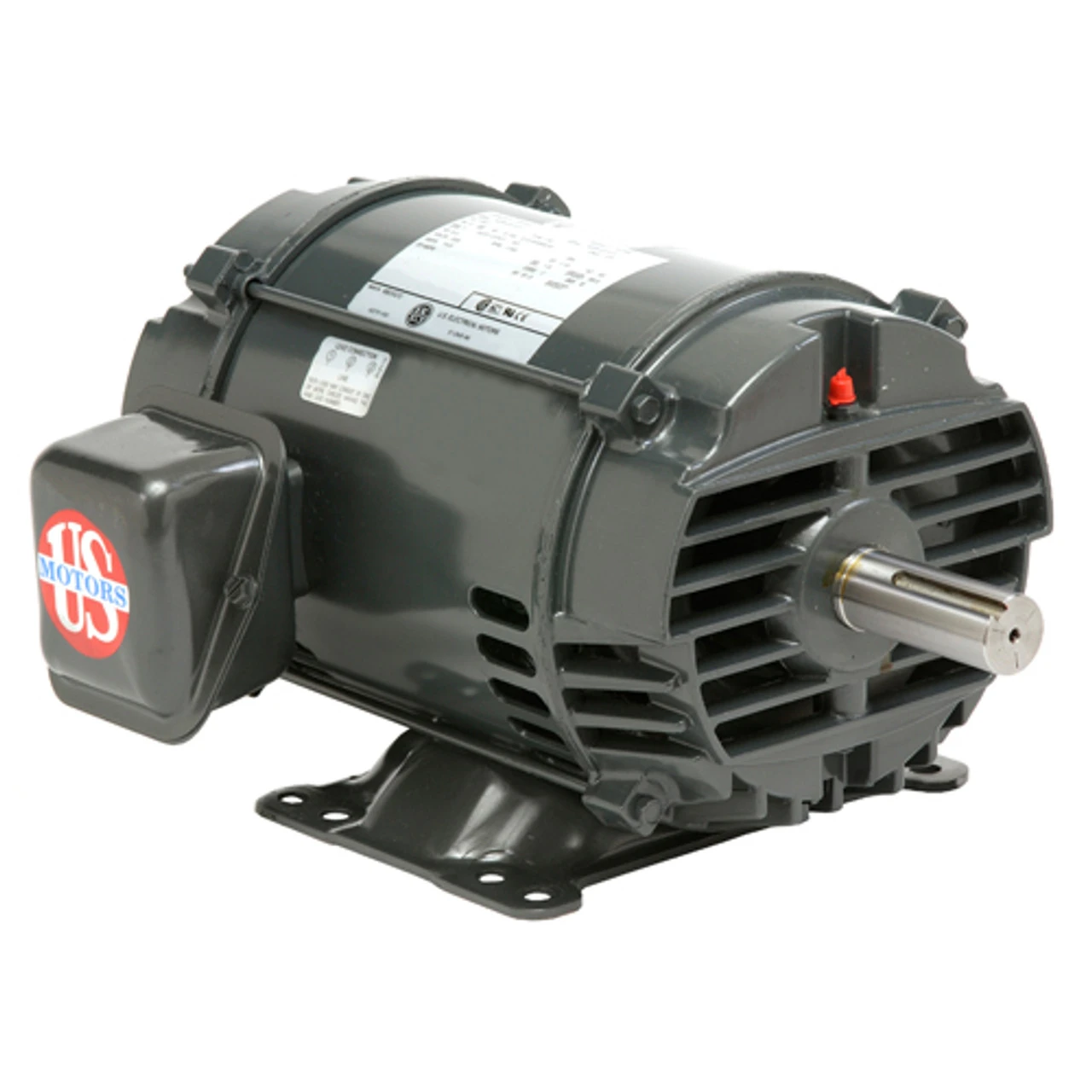

DH30S2BF Nidec 30 Hp 1800 RPM 230/460V ODP 284T (Rigid Base) 3-Phase Dry Elevator Motor
Original price was: $365.00.$96.99Current price is: $96.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 30 hp 1800 RPM, 73.0/36.0 amps 230/460 Volts 60 Hz Three Phase Motor

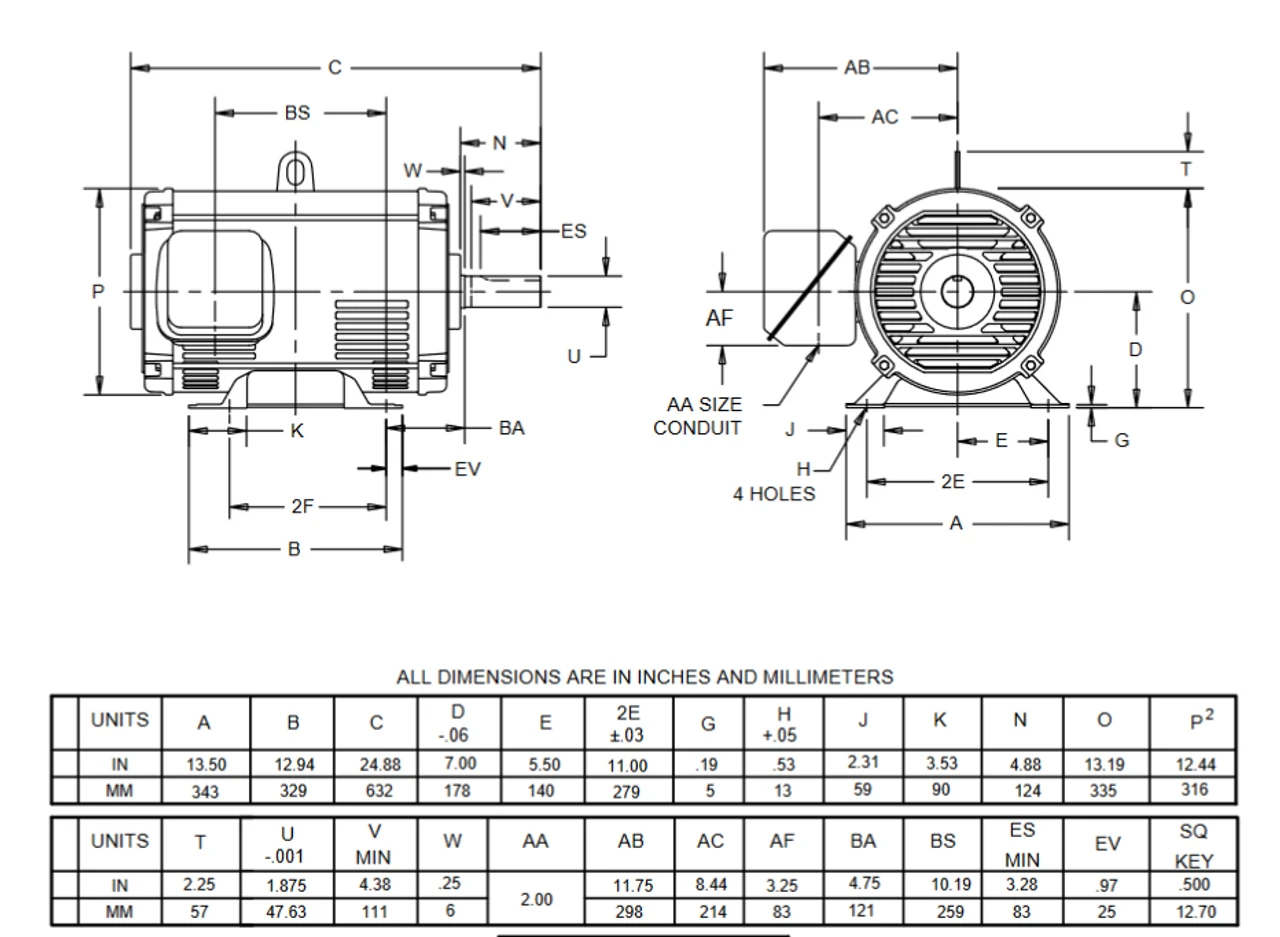

- NEMA 284T Cast Iron End Bells, Keyed Shaft 1 7/8″ Diameter x 4 7/8″
- Service Factor: 1.0 Overload protection = None, Intermittent Duty
- Rigid Base Mount, Ball Bearings, Class F Insulation,
- 1 Year Manufacture Warranty
For hydraulically driven elevators where motor remains dry. 72″ lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW51
