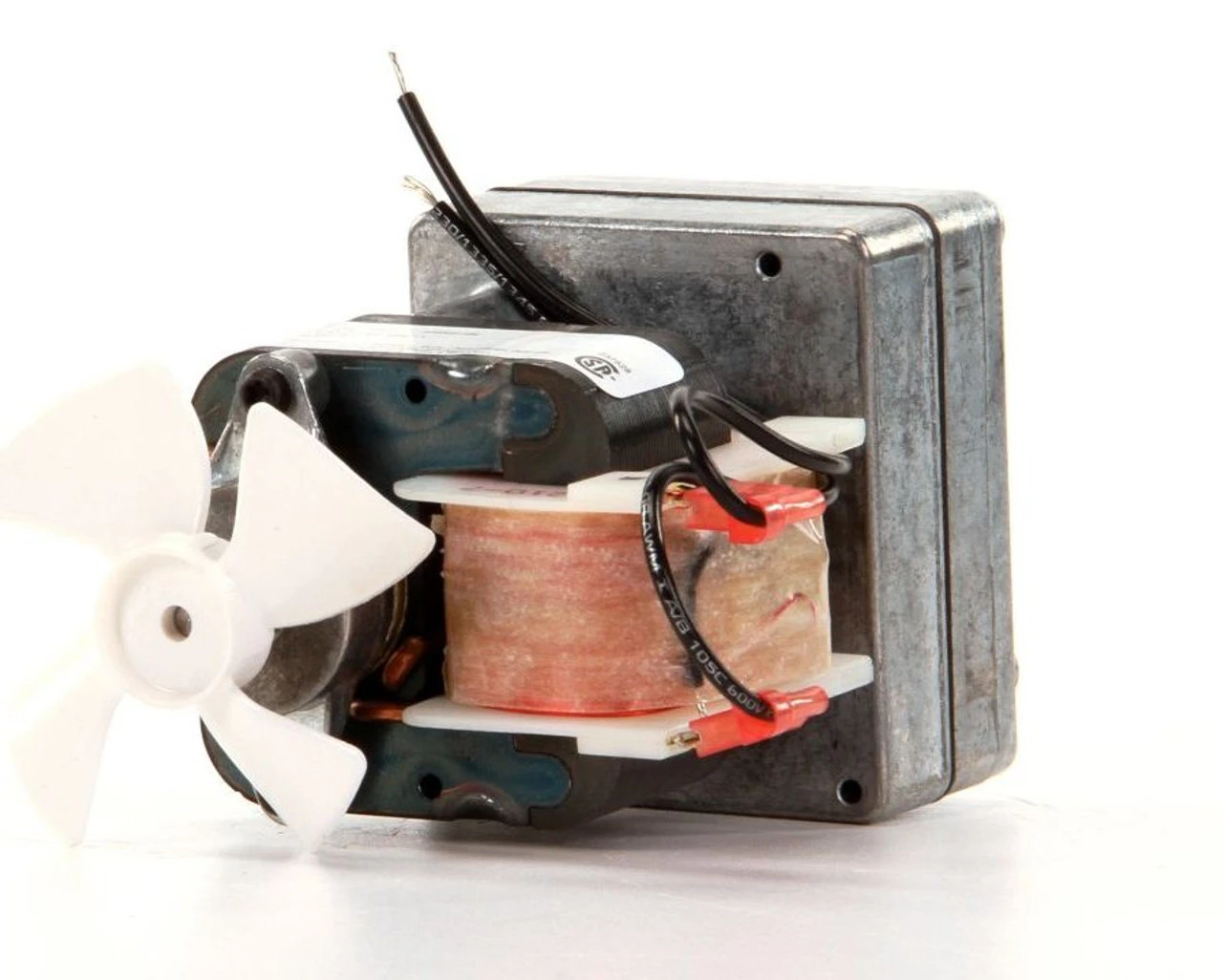

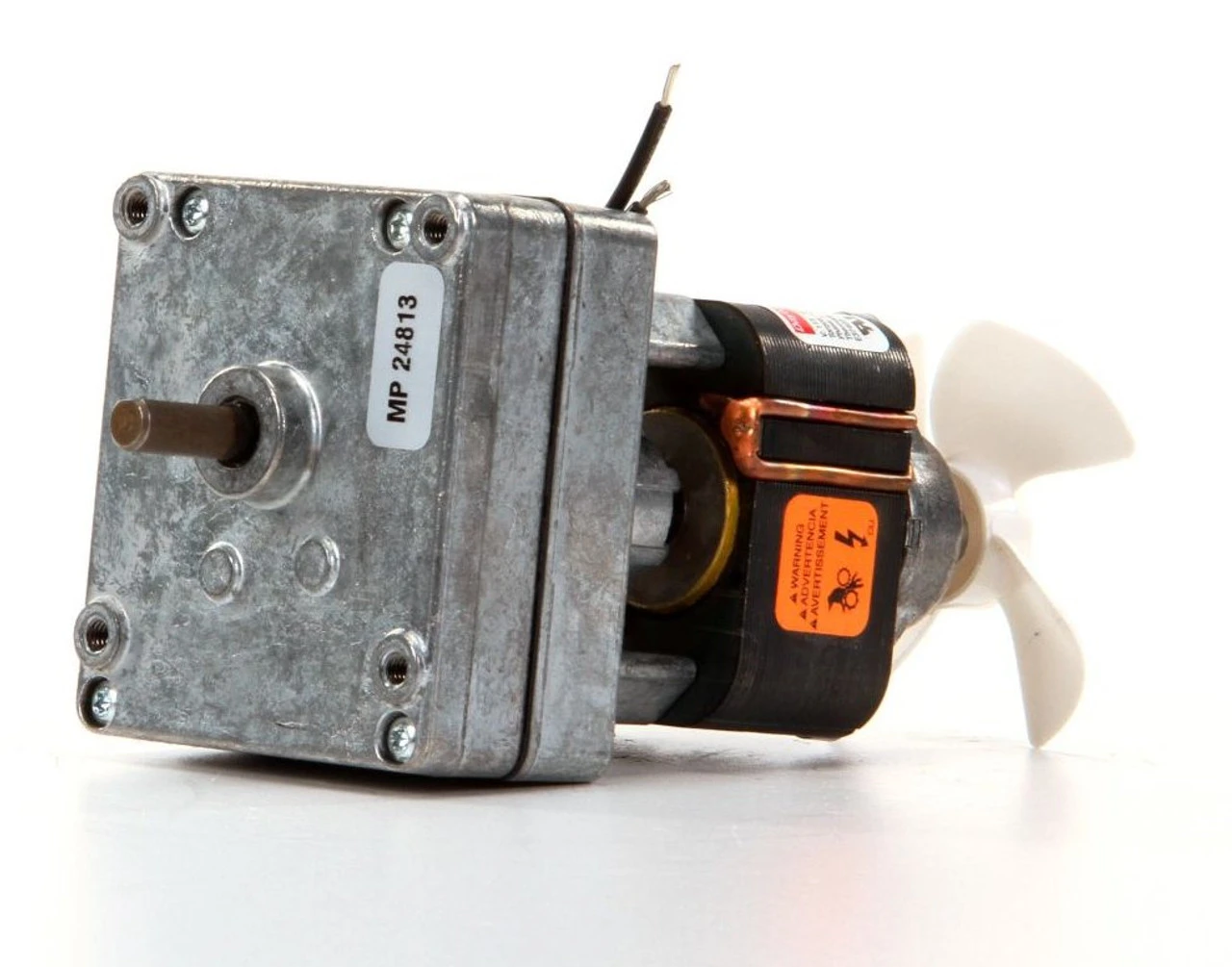

Dayton Model 1MBG3 Gear Motor 1 RPM 1/316 Hp 115V (4LL05)

• 1/316 hp, 1 RPM, 0.5 amps, 115 volts 60hz.
• Run Torque 100 inch pounds
• Rotation – CW Facing Shaft
• Shaft: 5/16″ x 3/4″
• Over Hung Pounds = 65
• One Year Manufacture Warranty.

Reference: VOO323AH11
Note: 4LL05 Discontinued-this is the replacement.
This motor is mechanically reversible. Simply remove the 2 bolts in the bearing housing, carefully remove the bearing cap assembly, leaving the rotor/shaft in place. Remove the iron stack/coil and turn over, being careful to line up the holes with the bolt holes, reinstall the bearing cap and screws.
