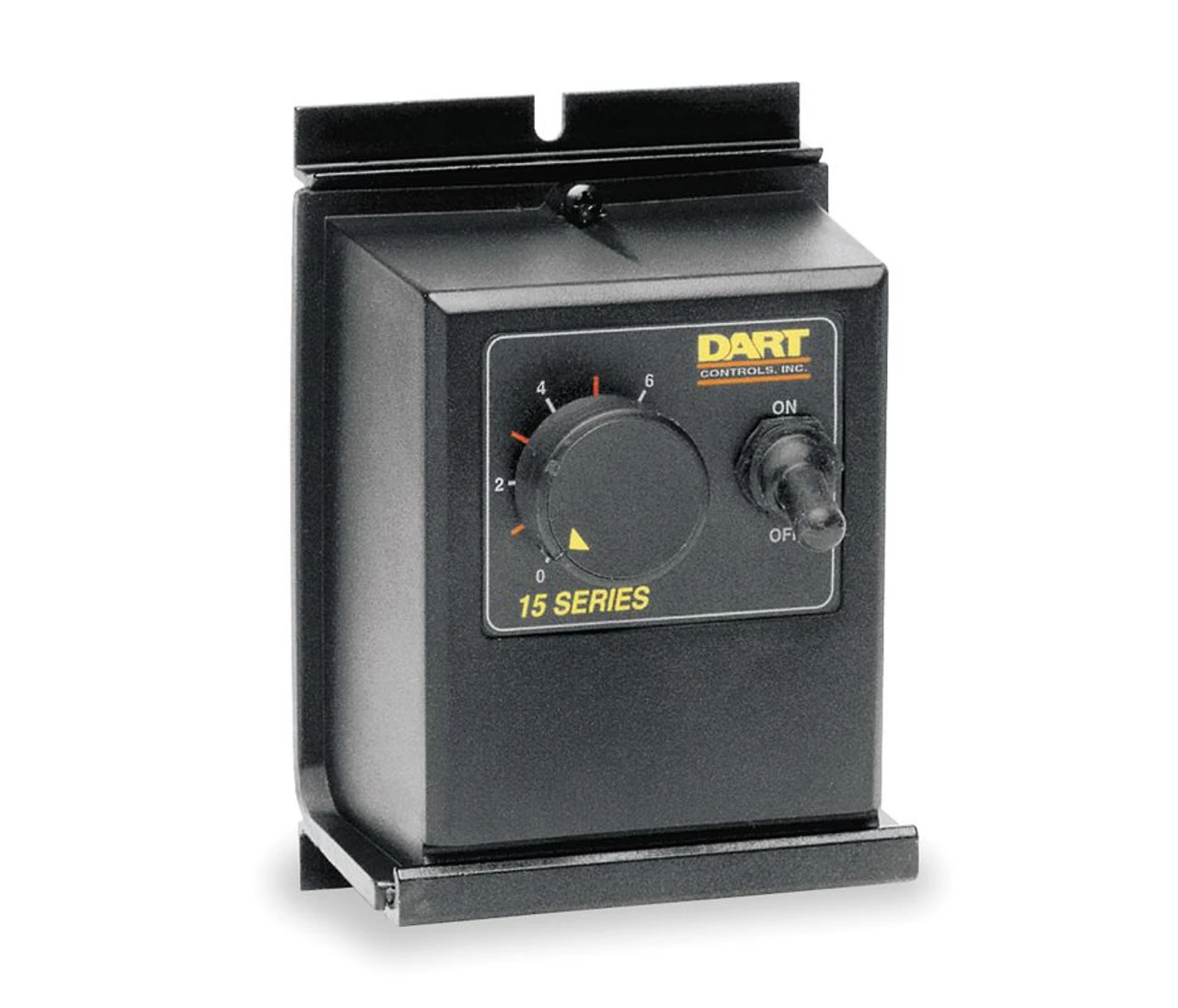

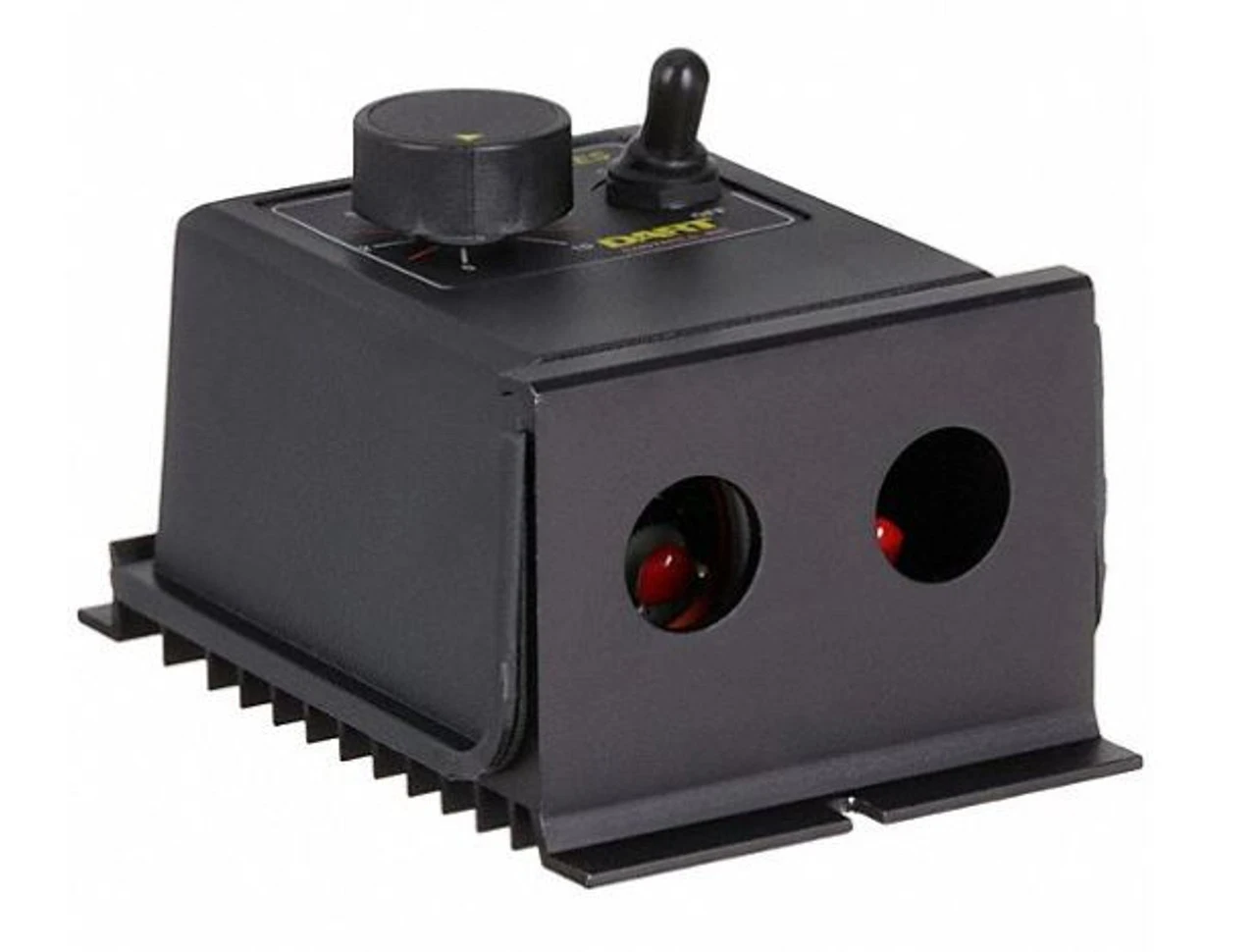

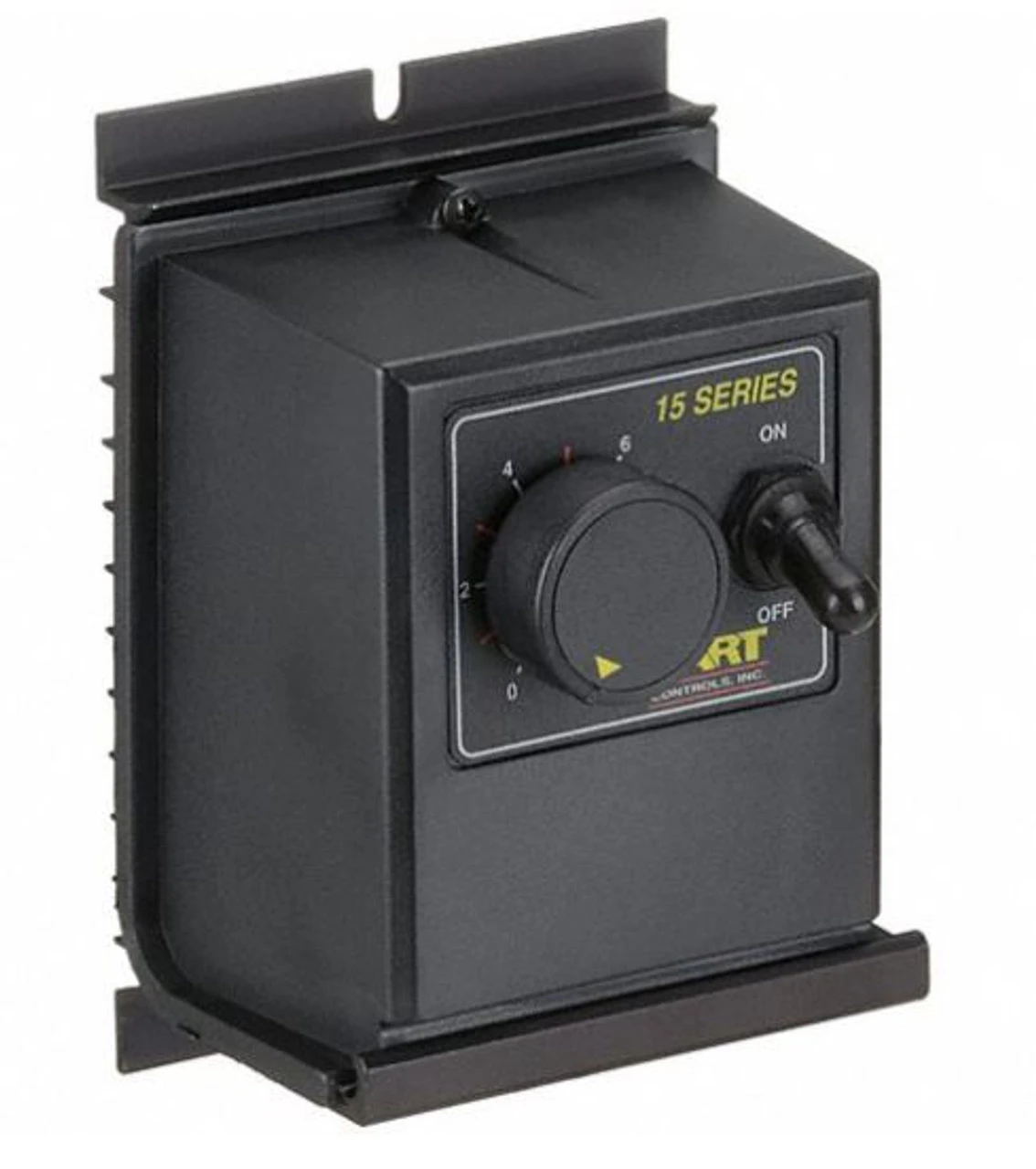

Dart DC Speed Control 90/180VDC, Model 15DVE

Dayton Model 5JJ58

• Input 115/230VAC; 3.0 Max Amperage
• 90V DC Rated up to 1/3HP
• 180V DC Rated up to 2/3HP
• Speed Range 25:1
• Speed Control Dial
• ON/OFF Switch
• Rated NEMA 4 Enclosure
• Non Reversible
• Height 5.5″; Depth 3.5″; Width 3.81″
• Shunt Wound Volts 100/200VDC, MAX amps 3
• cULus Recognized
• One Year Manufacture Warranty

Dynamic Braking = No; Linear Acceleration Fixed 0.5 sec.; IR Compensation Adjustable; Follower Circuit = No

Dart Model: 15DVE
