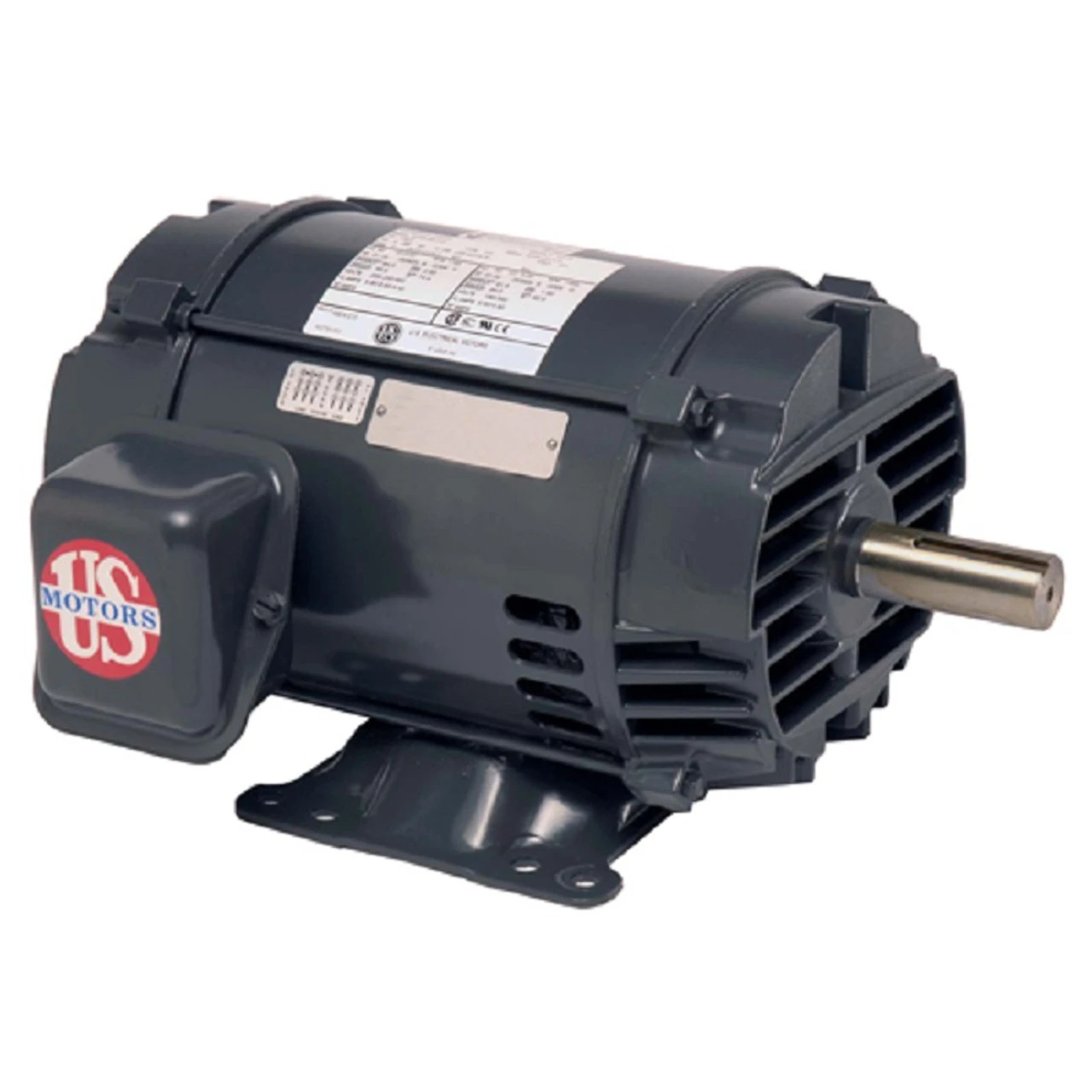

D5P1G Nidec | 5 Hp 3600 RPM 182T Frame 575V ODP Motor Electric Motor Nidec

• 5 hp 3600 RPM, 575V 15.0 amps Three Phase
• NEMA 182T frame Keyed Shaft 1-1/8″ x 2 3/4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FH92, Dayton 6YW18
