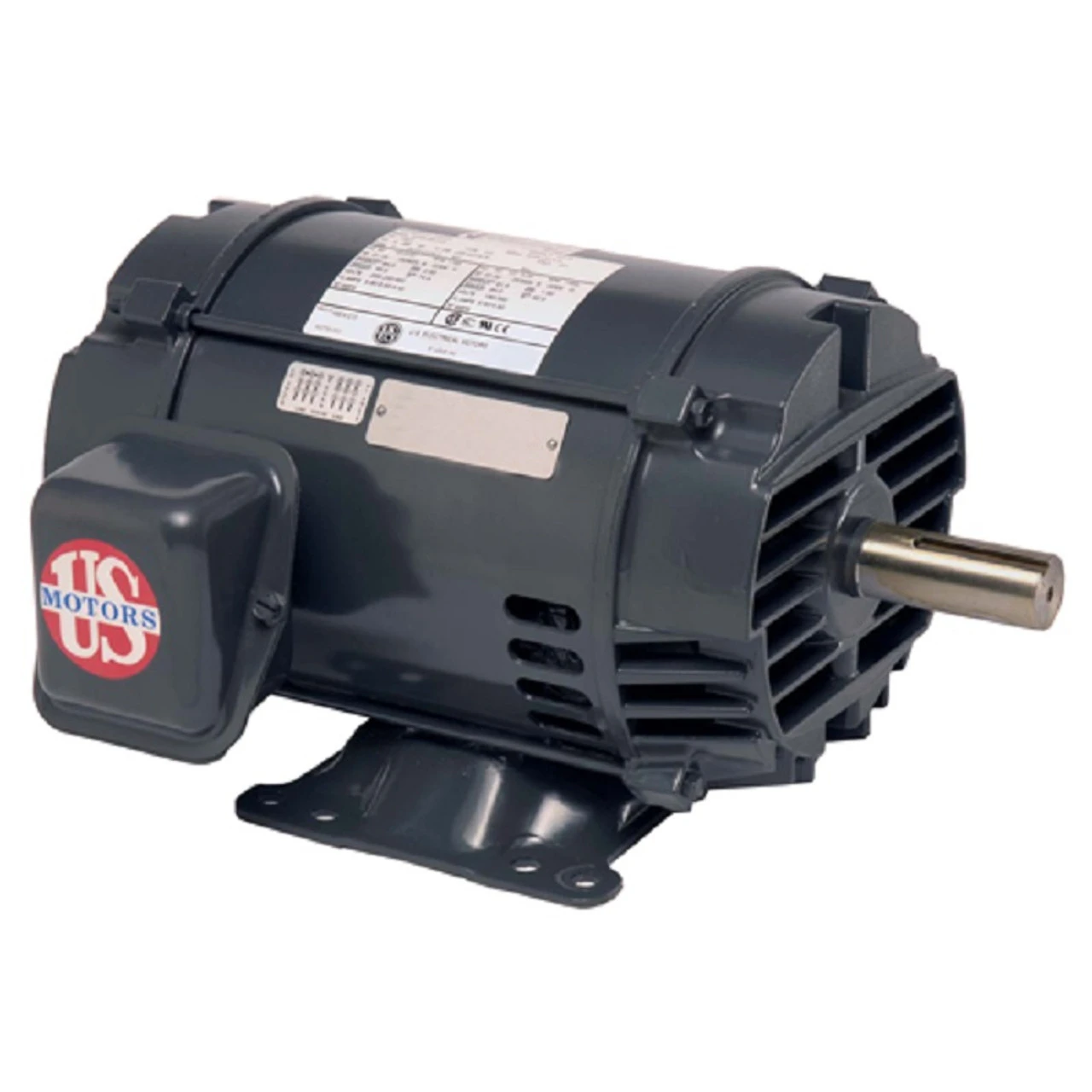

D50P3E Nidec | 50 Hp 1200 RPM 365T Frame 230/460V ODP Electric Motor Nid

• 50 hp 1200 RPM, 115.0/57.0 amps 230/460V, 50/60hz. Three Phase
• NEMA 365T Frame Keyed Shaft 2 3/8″ Diameter x 5 7/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

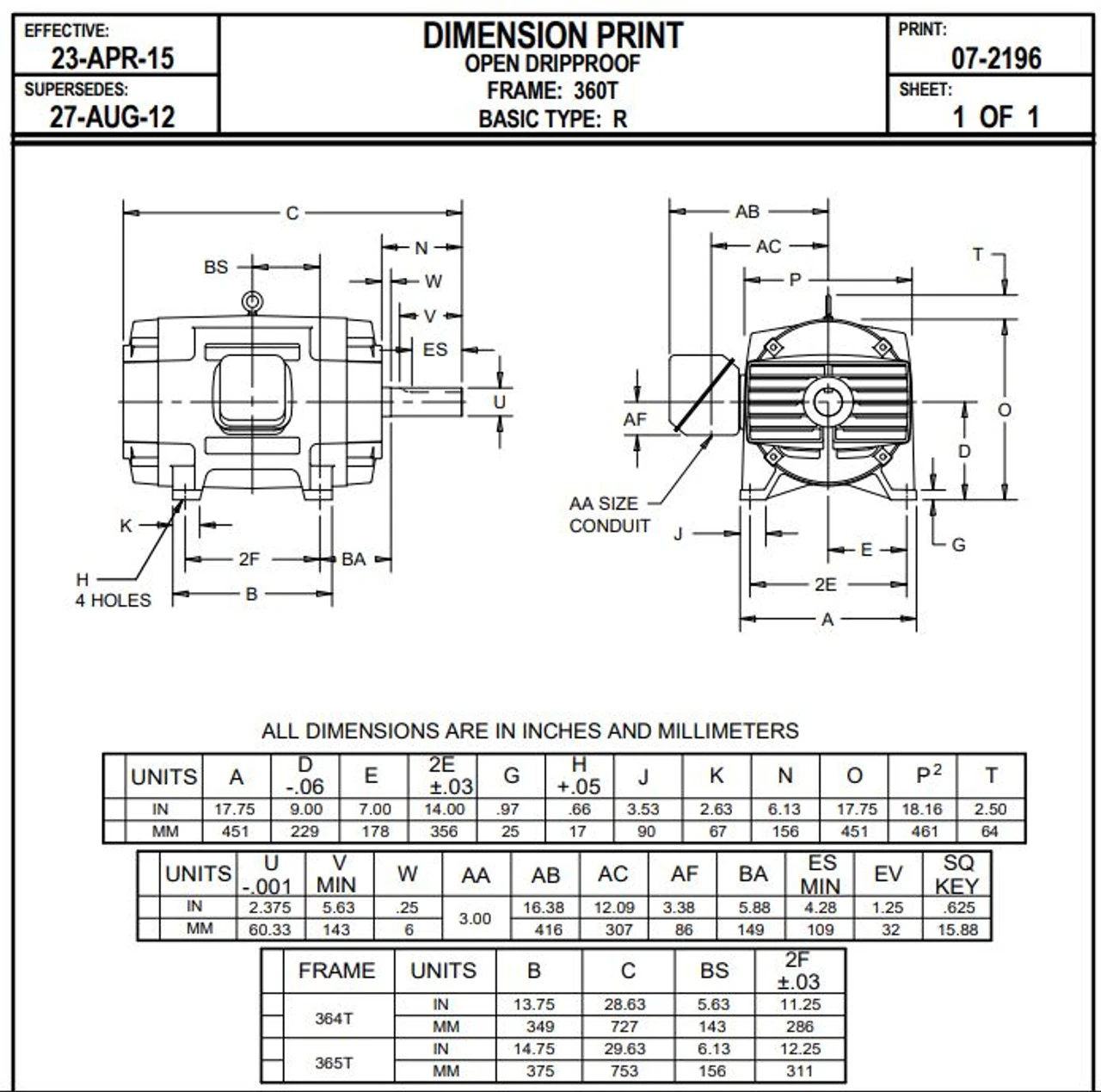

• “C” Dimension 29.7″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC73
