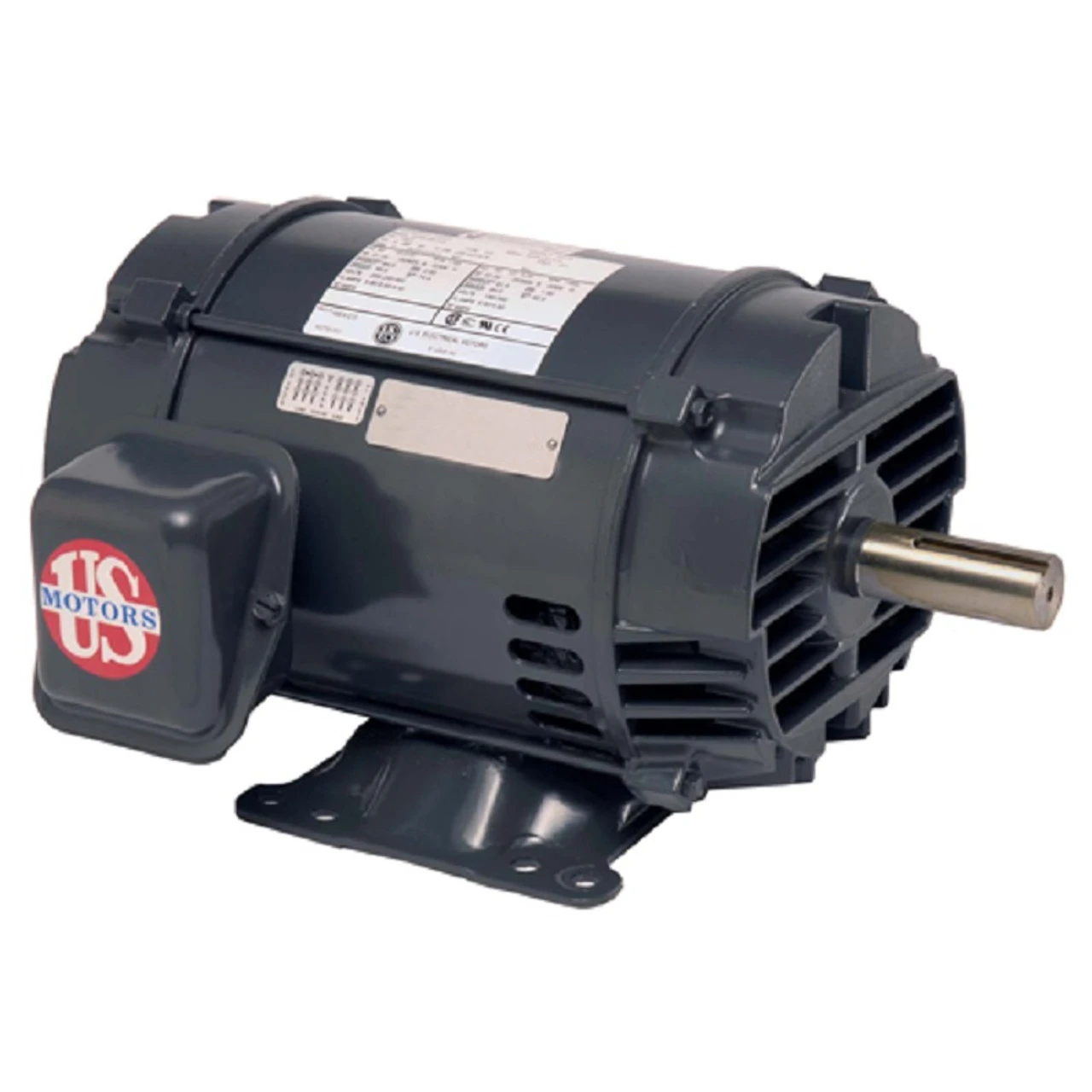

D3P3D Nidec | 3 Hp 1200 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec

• 3 hp 1200 RPM, 8.9/4.4 amps 208-230/460V  Three Phase
• NEMA 213T frame Keyed Shaft 1-3/8″ x 3 3/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• Motor case length 16.5″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model R334
