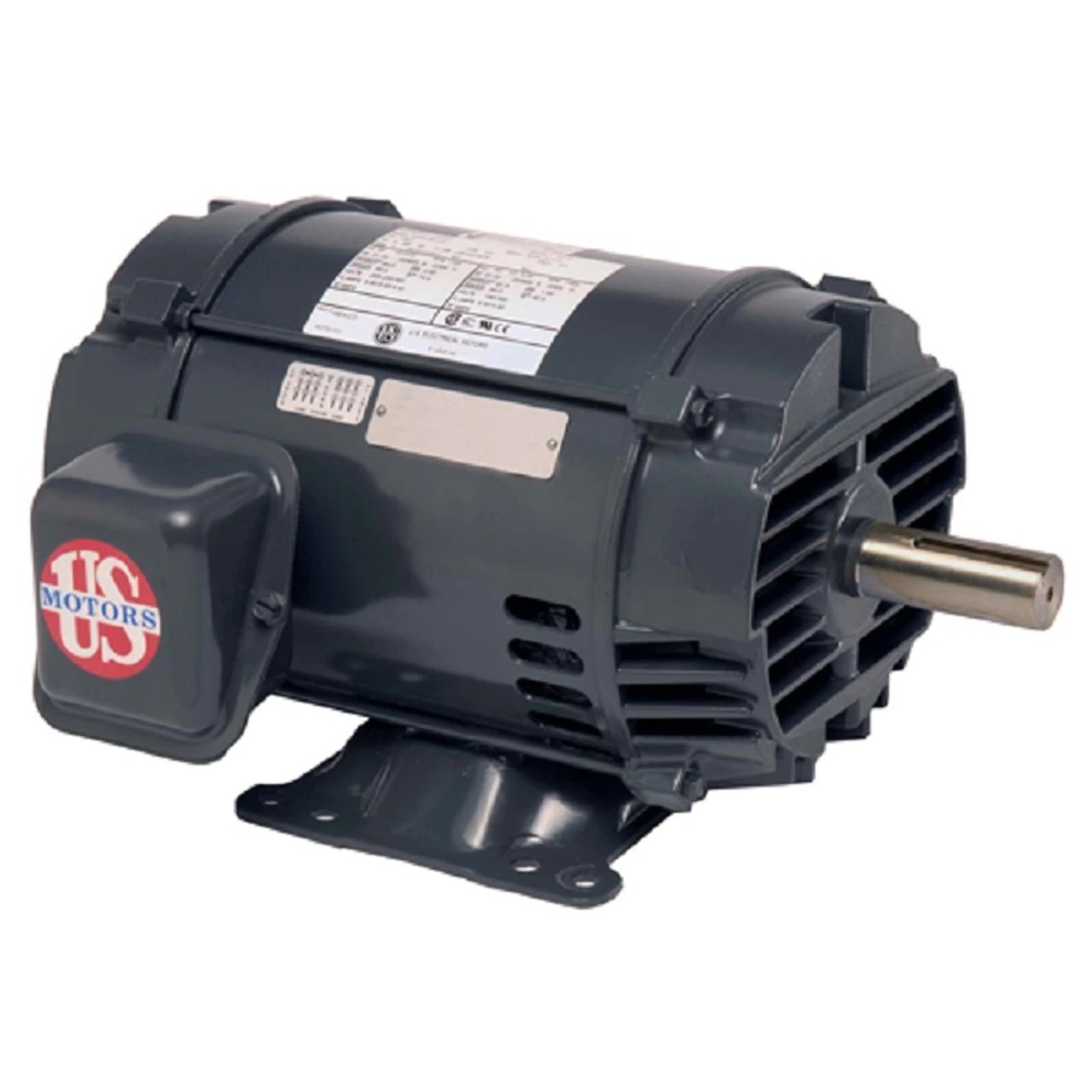

D3P2D Nidec | 3 Hp 1800 RPM 182T Frame 208-230/460V ODP Motor Electric Motor Nidec

• 3 hp 1800 RPM, 7.6/3.8 amps 208-230/460 Volts 50/60hz. Three Phase

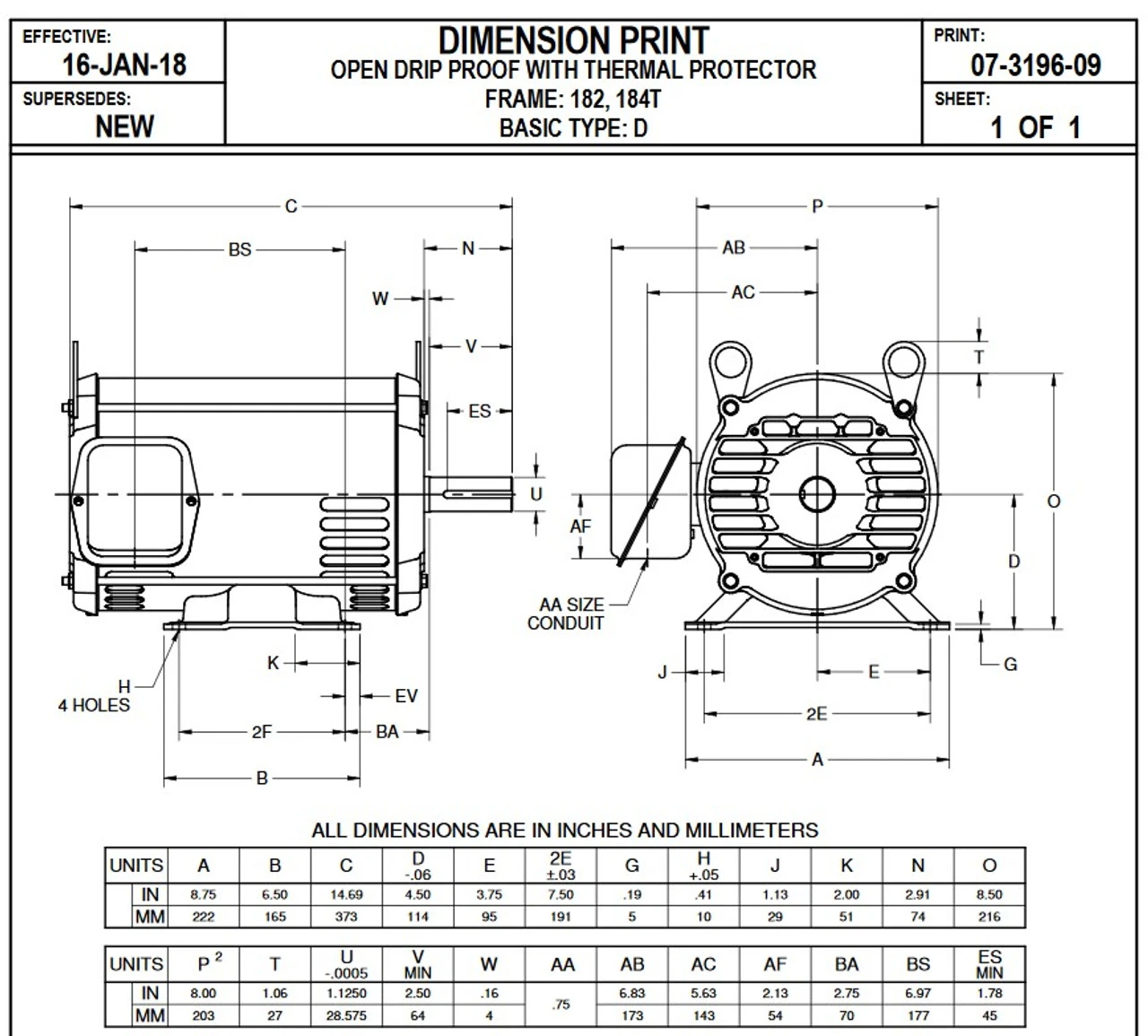

• NEMA 182T frame Keyed Shaft 1-1/8″ x 2 3/4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model HE22, Dayton 263Z40
