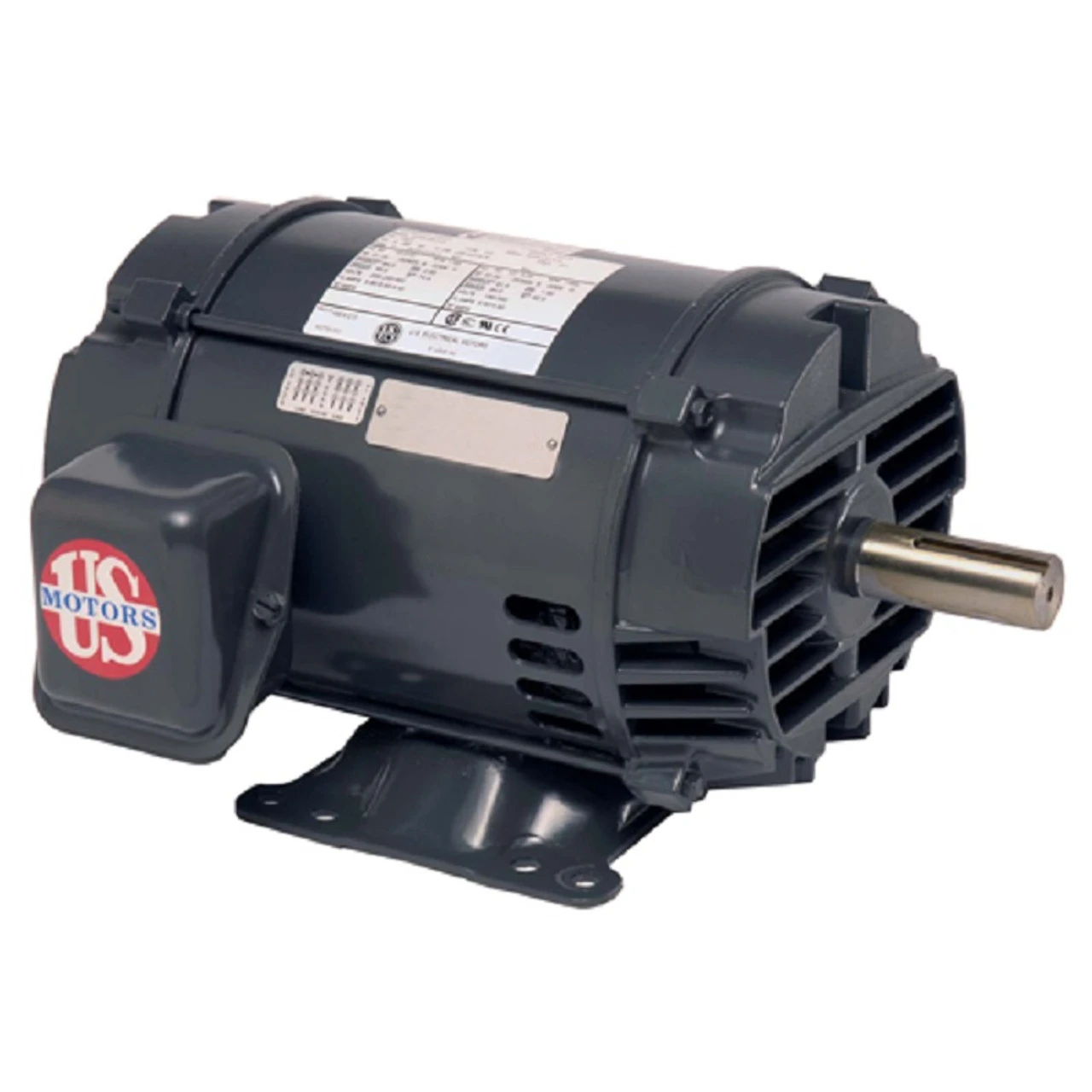

D10P2D Nidec | 10 Hp 1800 RPM 215T Frame 208-230/460V ODP Electric Motor Nidec

• 10 hp 1800 RPM, 23.8/11.9 amps 208-230/460V, Three Phase
• NEMA 215T frame Keyed Shaft 1-3/8″ x 3 3/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

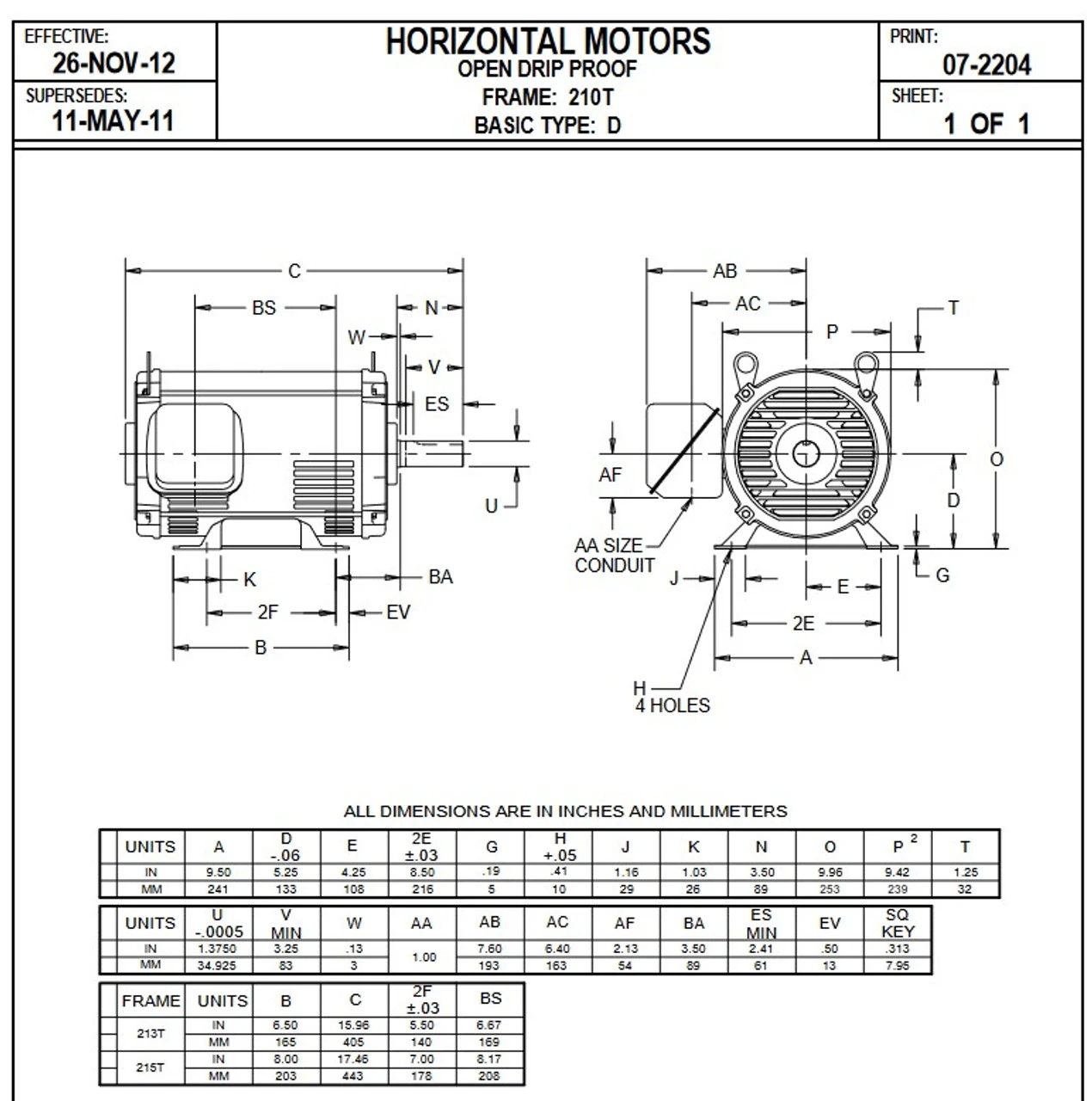

• “C” Dimension 17.5″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DB51, Dayton 320L01
