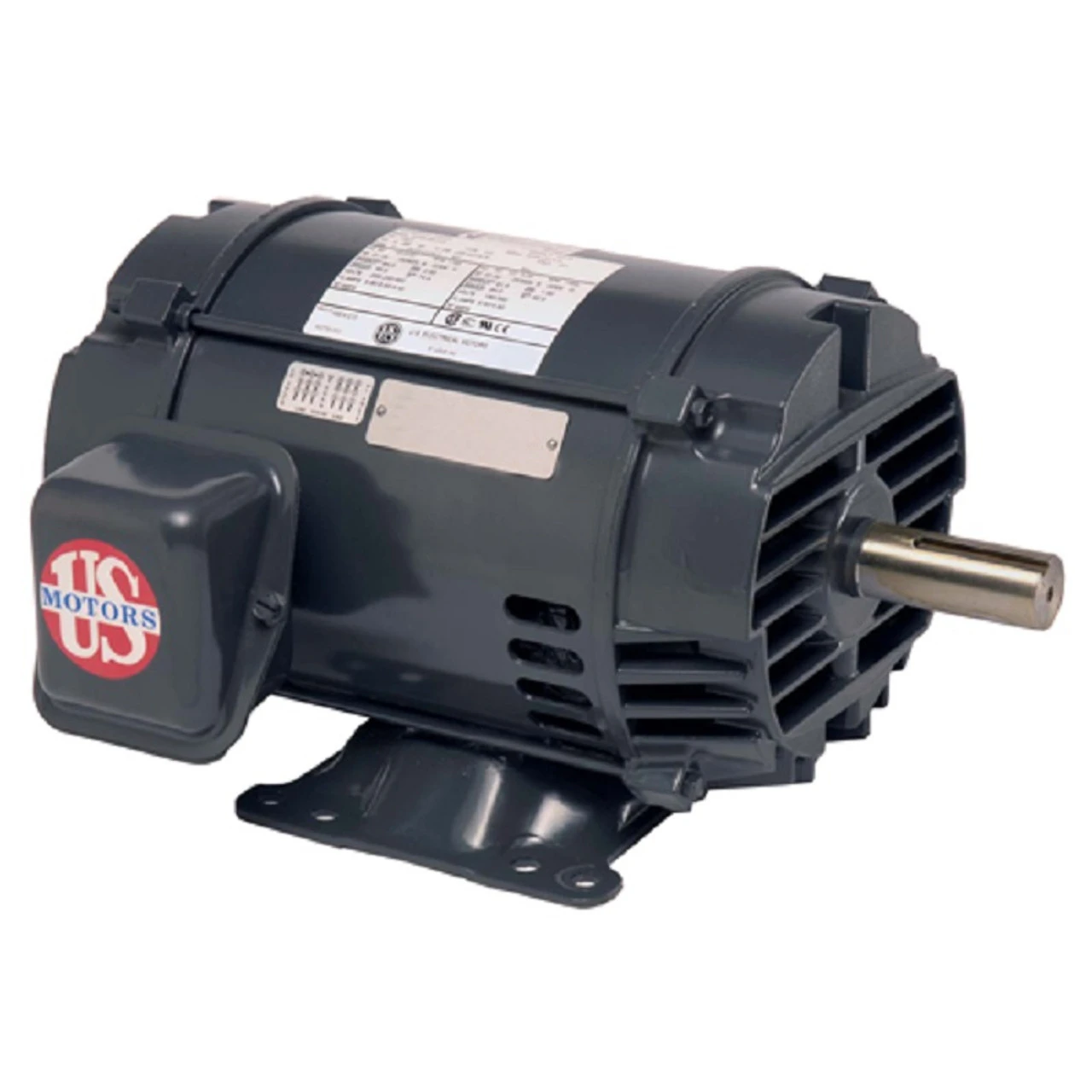

D10P1D Nidec | 10 Hp 3600 RPM 213T Frame 208-230/460V ODP Electric Motor Nidec

• 10 hp 3600 RPM, 24.3/12.2 amps 208-230/460V, 50/60hz. Three Phase
• NEMA 213T frame Keyed Shaft 1-3/8″ x 3 3/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 16.0″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DB45
