CW7V2H2 Nidec 7 1/2 Hp 1800 RPM 213T Frame (Rigid Base) 200V TEFC 3-Phase Cooling Tower Motor

• 7 1/2 hp 1800 RPM, 22.0 amps 200 Volts 60 Hz Three Phase Motor

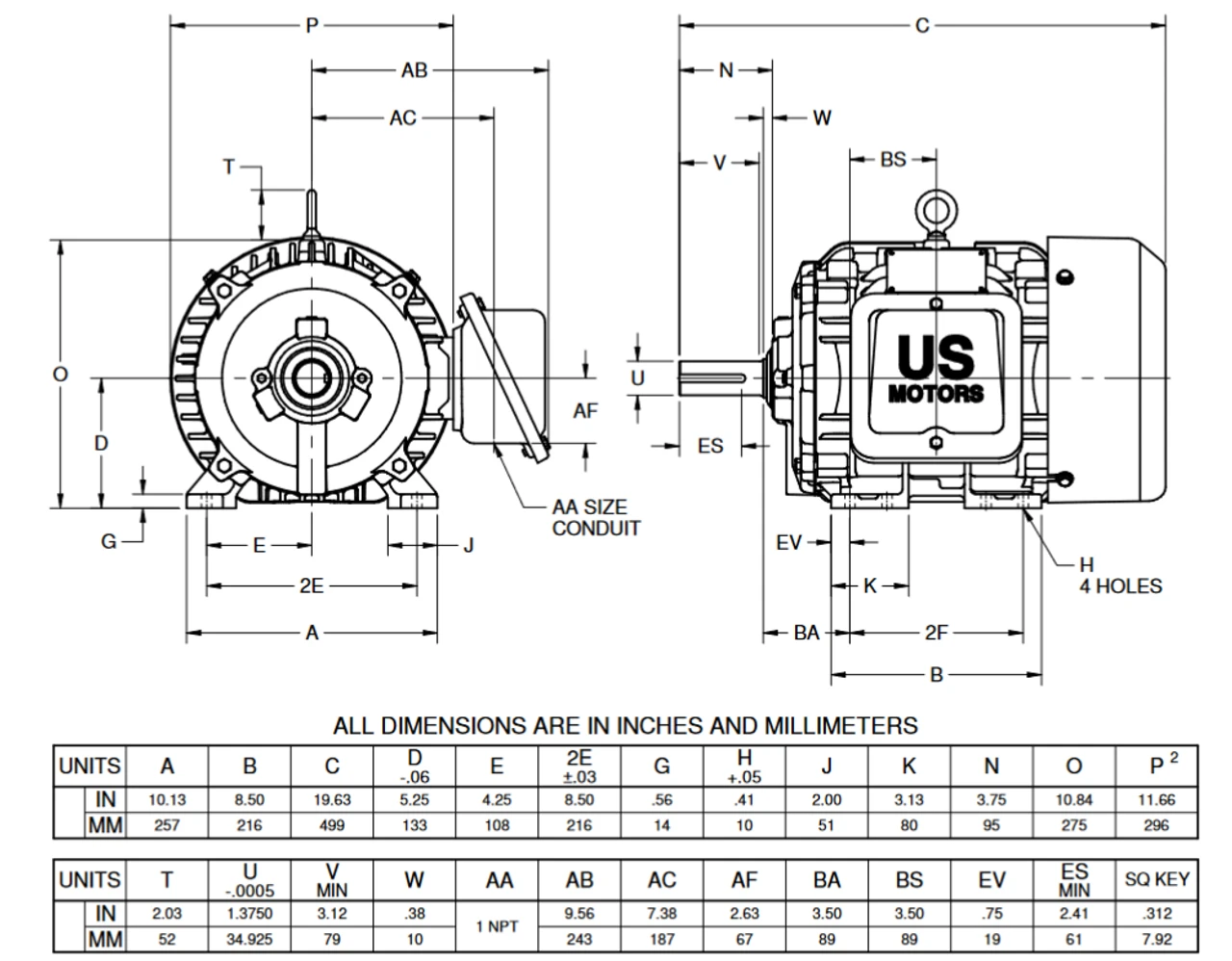

• NEMA 213T Cast Iron frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

For use in cooling tower and evaporation cooler applications. Corrosion resistant, Inverter Duty (10:1 speed range). Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GM41
