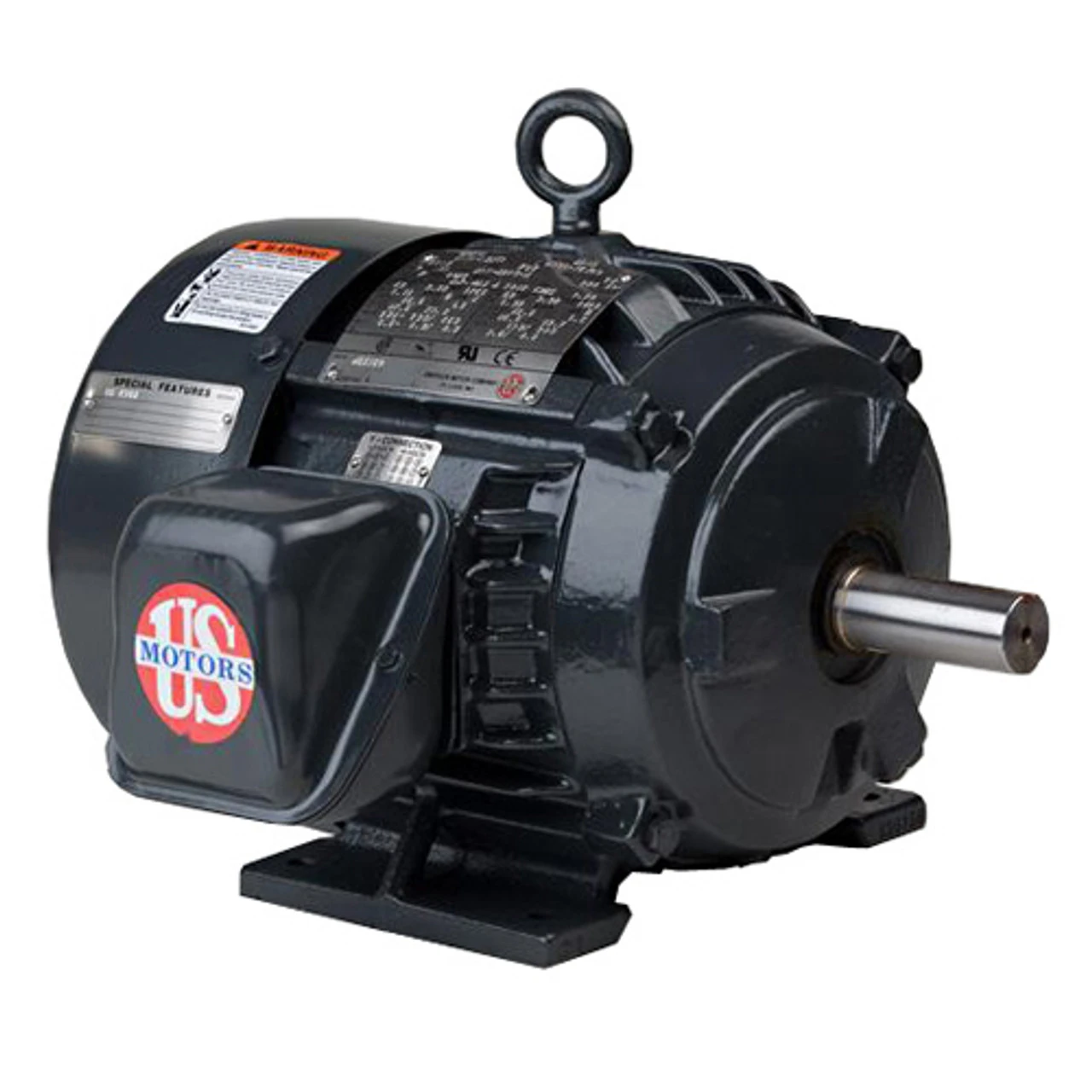

CW40V2E2 Nidec 40 Hp 1800 RPM 324T Frame (Rigid Base) 230/460V TEFC 3-Phase Cooling Tower Motor

• 40 hp 1800 RPM, 92.0/46.0 amps 230/460 Volts 60 Hz Three Phase Motor

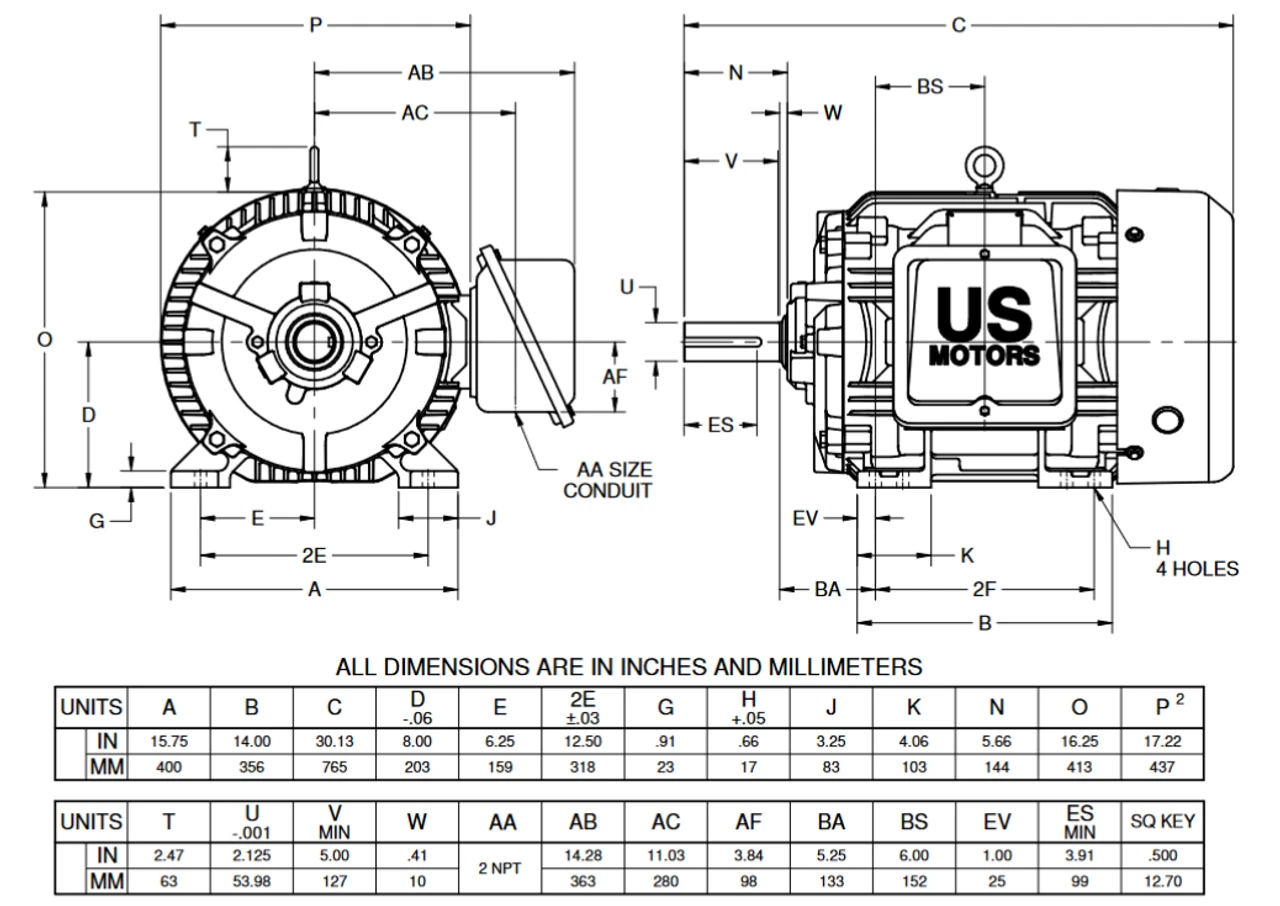

• NEMA 324T Cast Iron frame Keyed Shaft 2 1/8″ Diameter x 5 1/4″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

For use in cooling tower and evaporation cooler applications. Corrosion resistant, Inverter Duty (10:1 speed range). Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GM61
