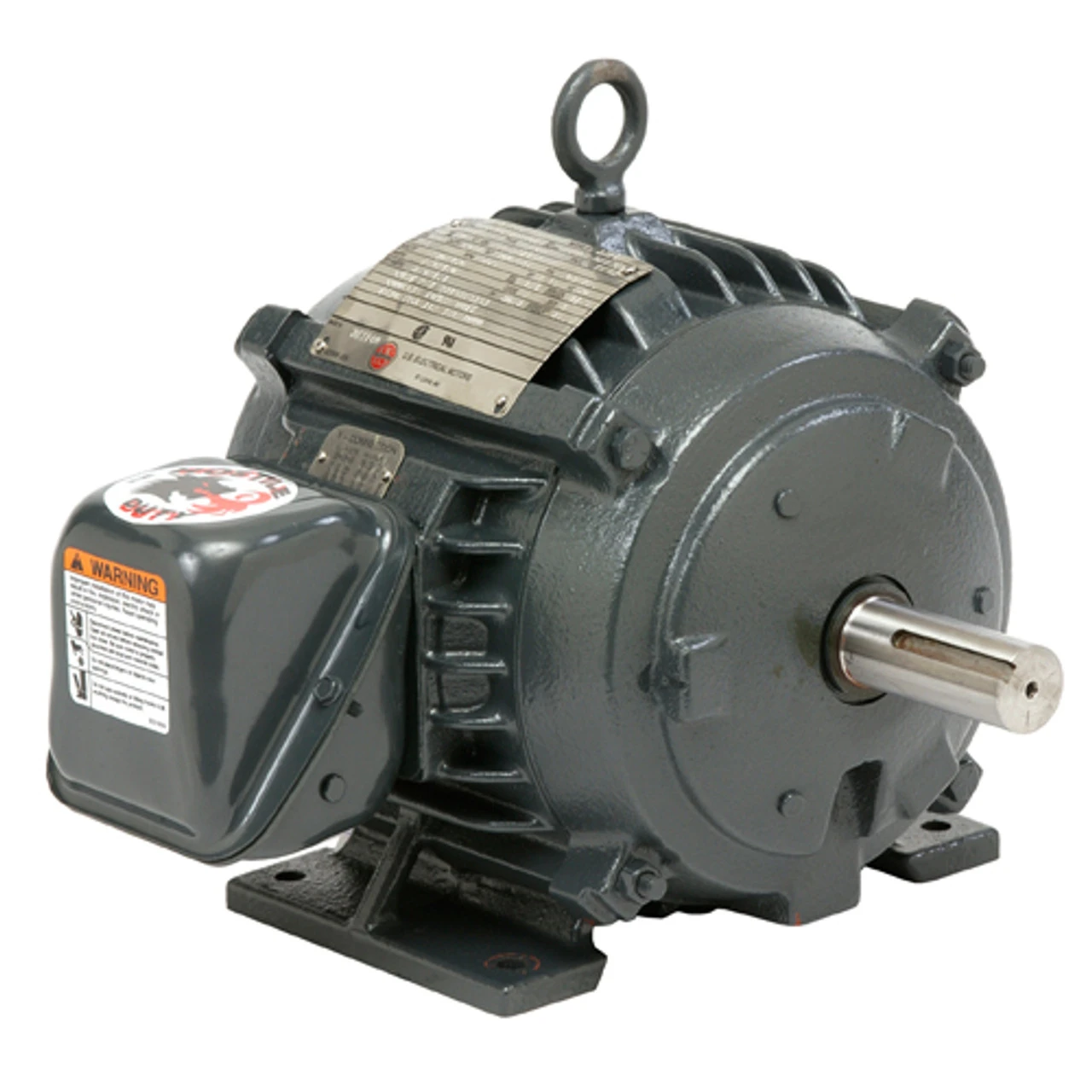

CVW3V3B6 Nidec 3 Hp 1200 RPM 213T Frame (Rigid Base) 230/460V TEAO 3-Phase Cooling Tower Motor

• 3 hp 1200 RPM, 8.6/4.3 amps 230/460 Volts 60 Hz Three Phase Motor

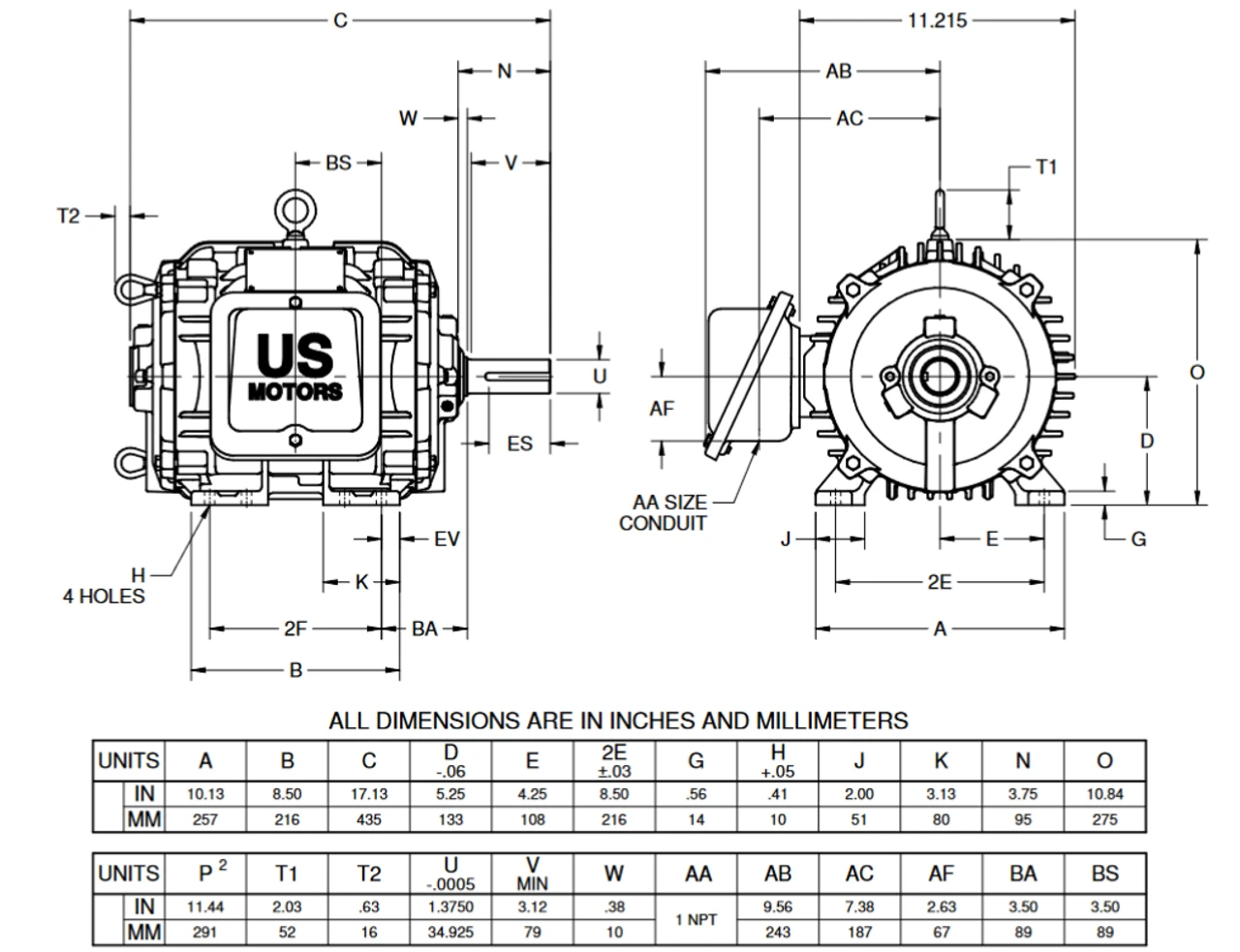

• NEMA 213T Cast Iron frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

For use in cooling tower and evaporation cooler applications. Corrosion resistant, Inverter Duty (10:1 speed range). Wiring diagram on motor name plate. TEAO = Totally Enclosed Air Over. GM05
