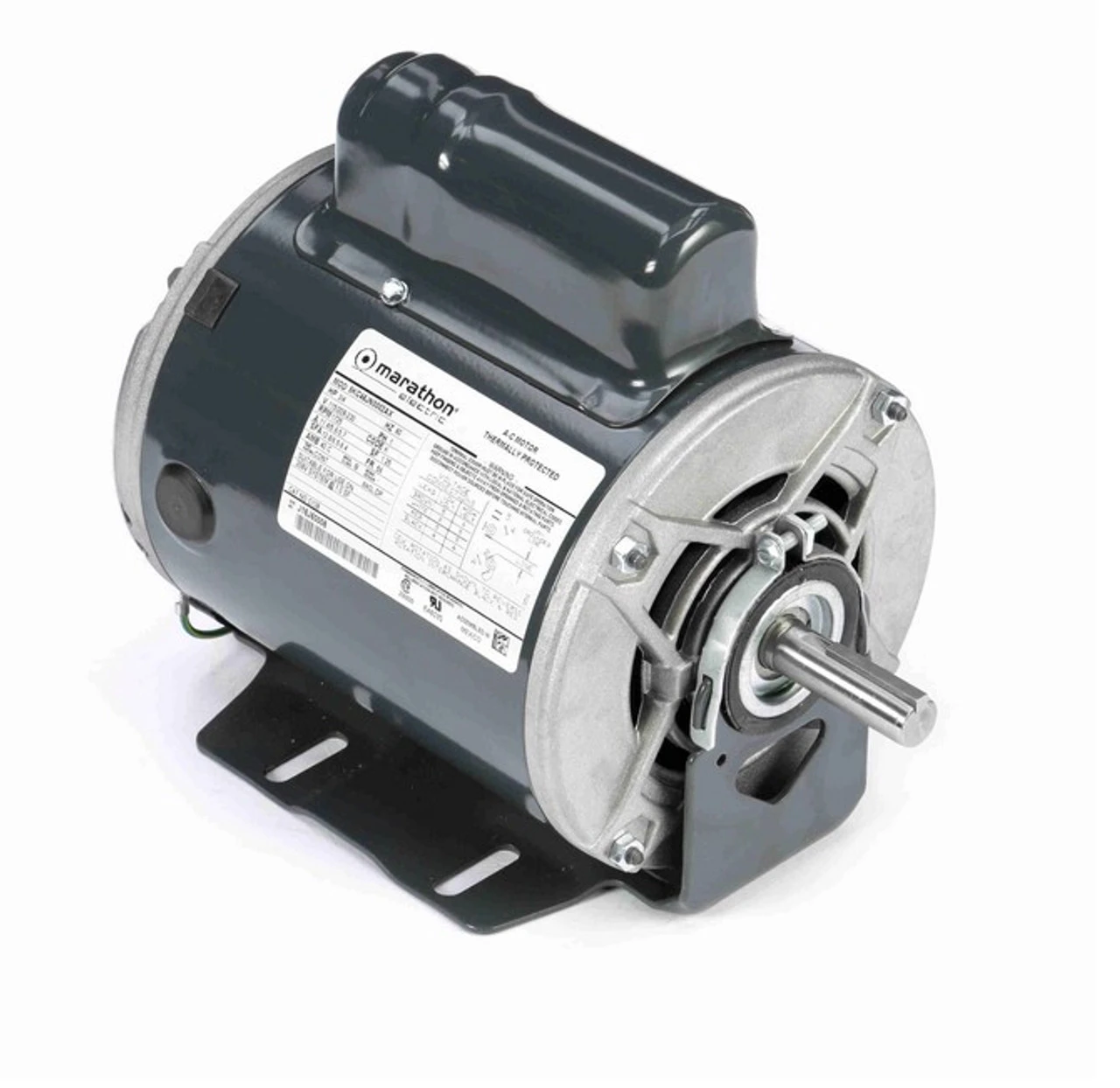

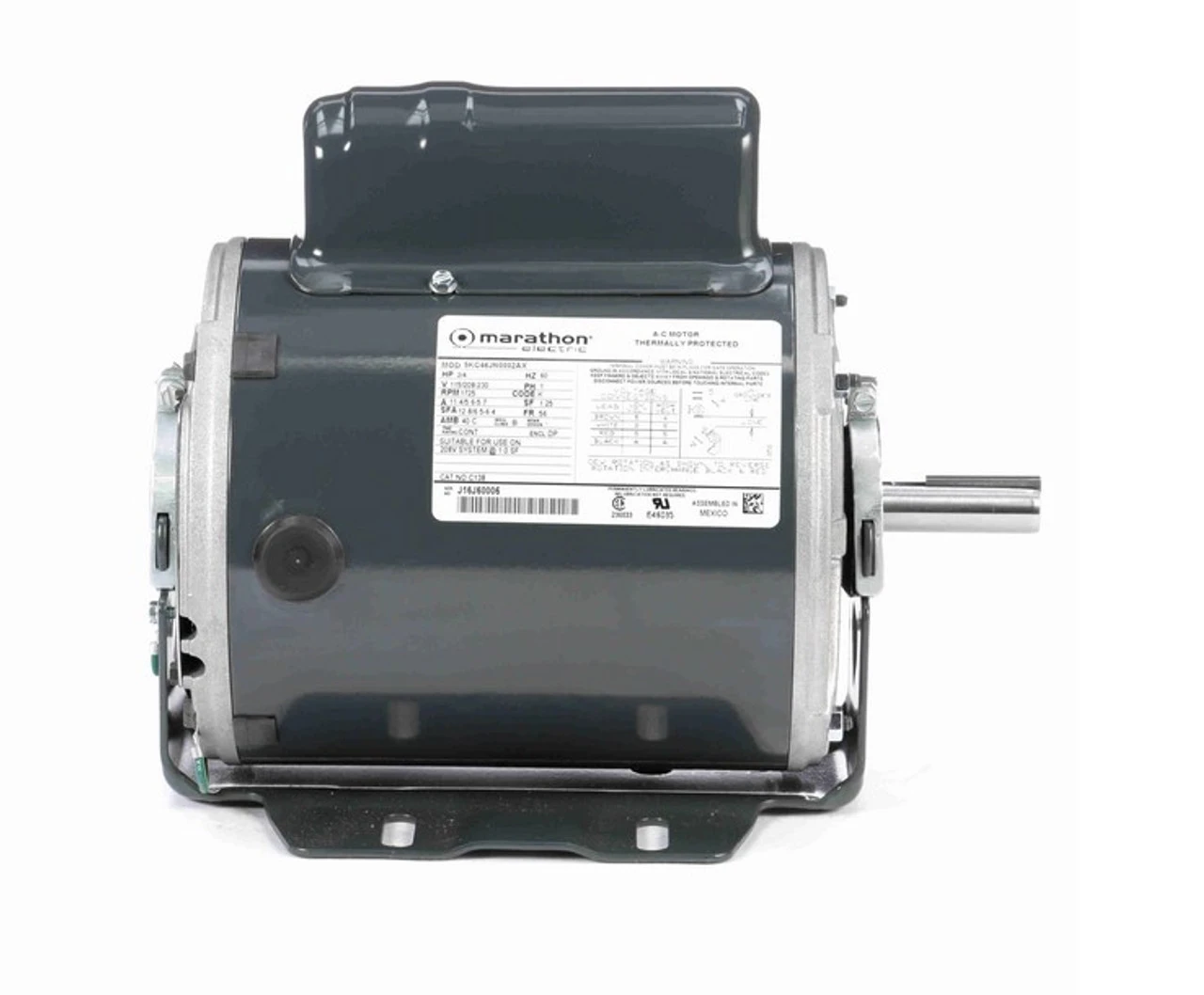

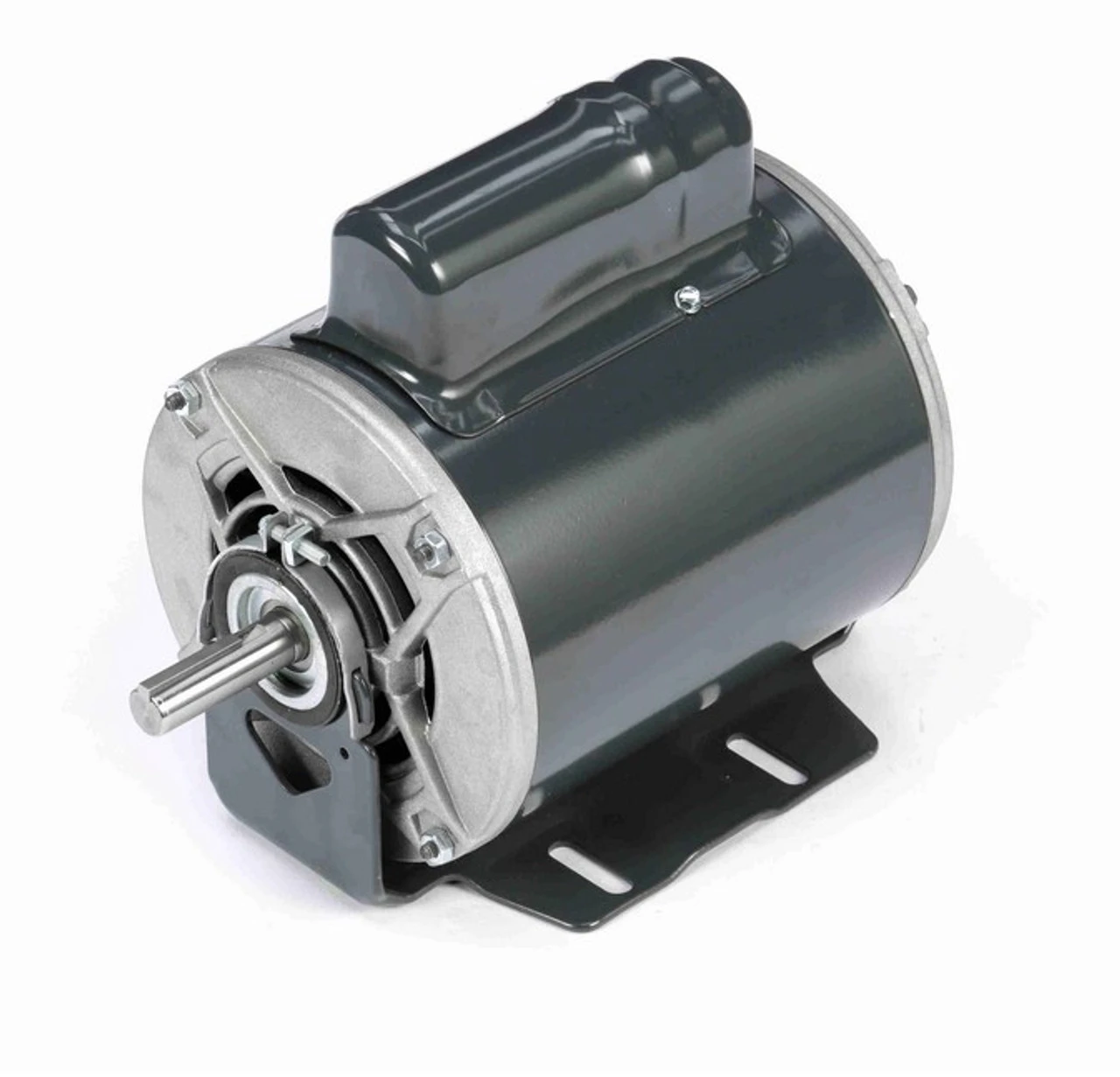

C138 Marathon 3/4 Hp (1 Speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

• 3/4 hp 1800 RPM, 11.4/5.7- 5.6 amps, 115/208-230 Volts 60 Hz, Capacitor Start

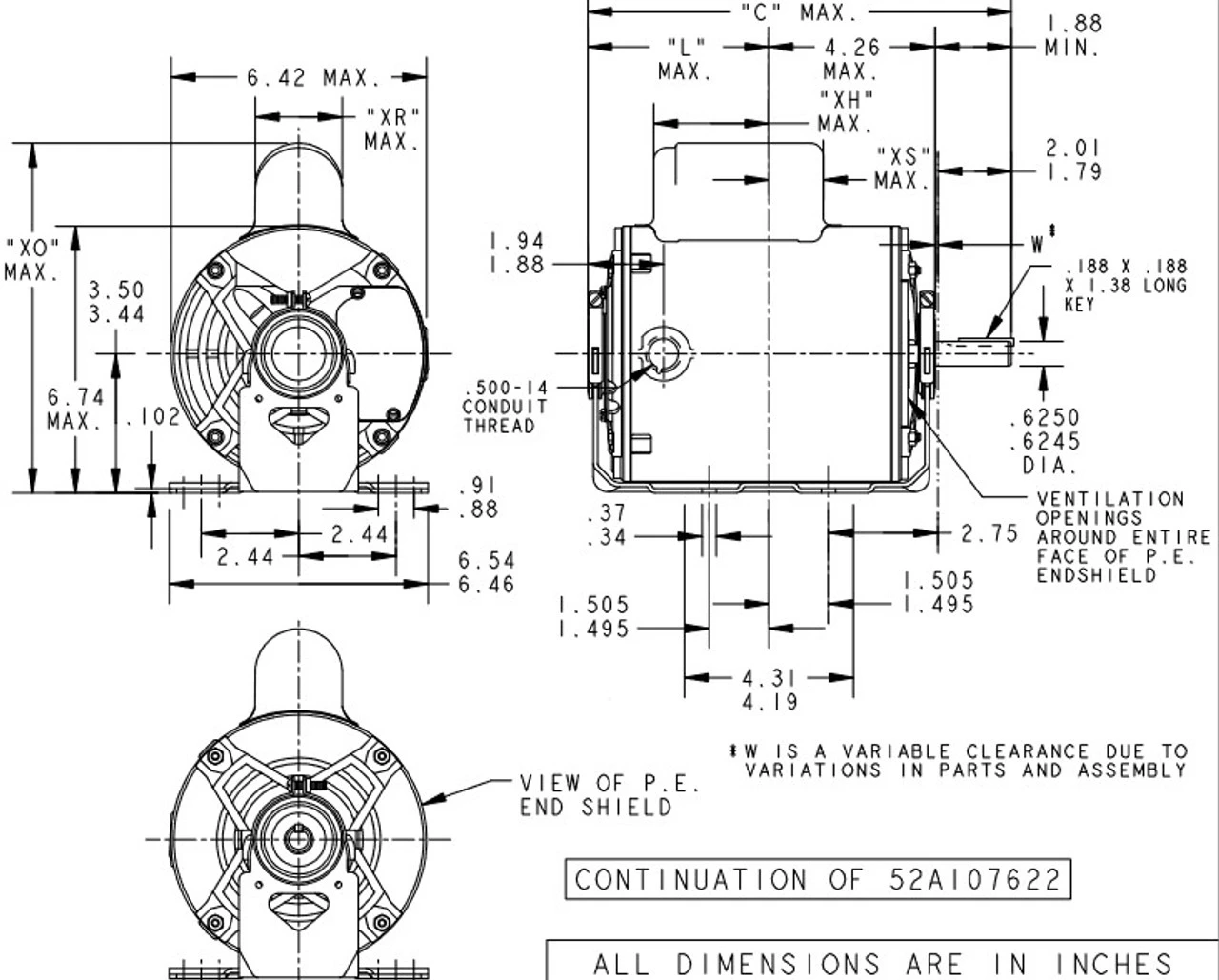

• NEMA 56 Frame Keyed Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
• Service Factor = 1.25, Thermal Protection = Auto
• Resilient Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. Capacitor Start Motors have higher starting torque than normal. ODP = Open Drip Proof. 5KC46JN0002X
