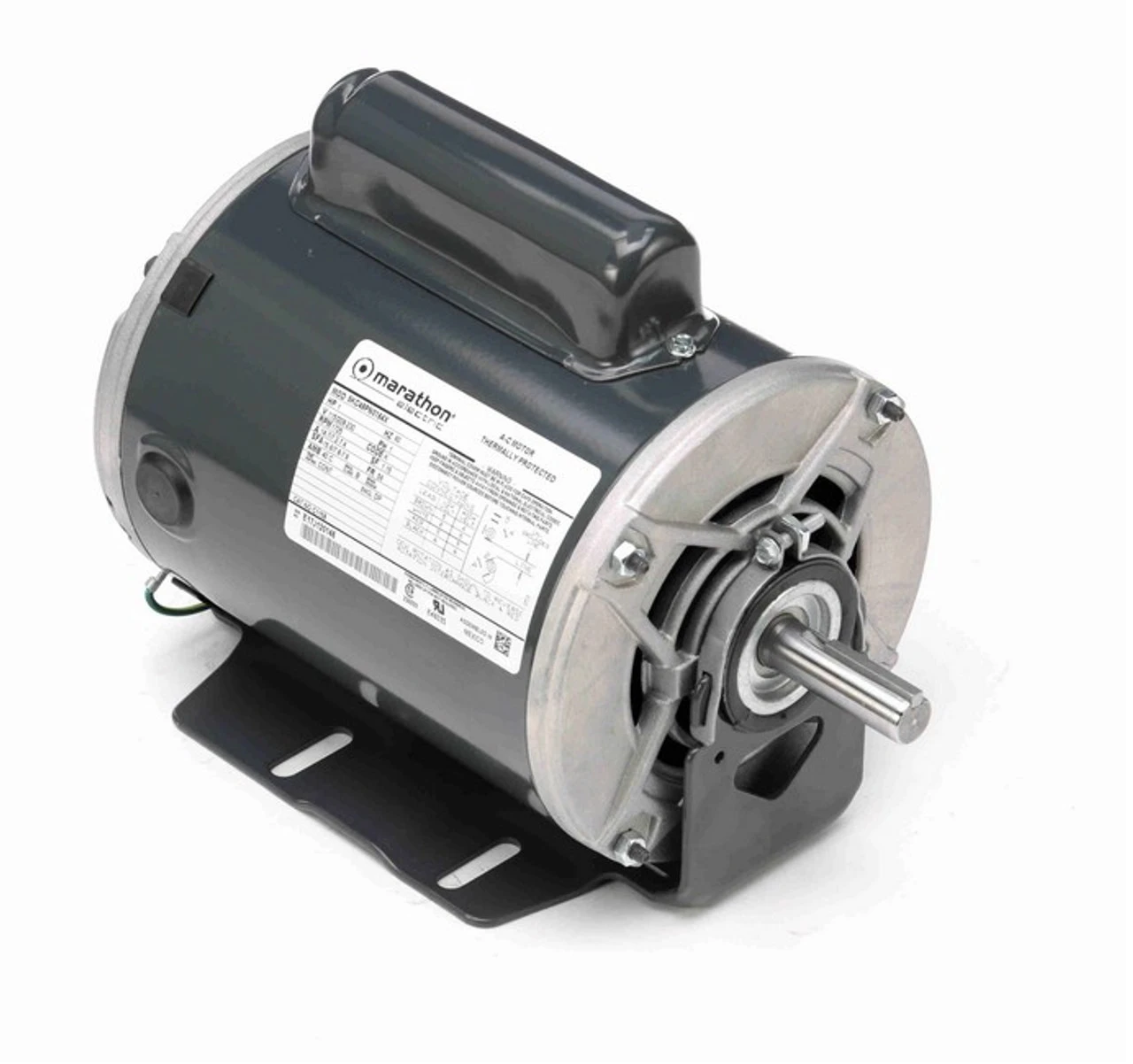

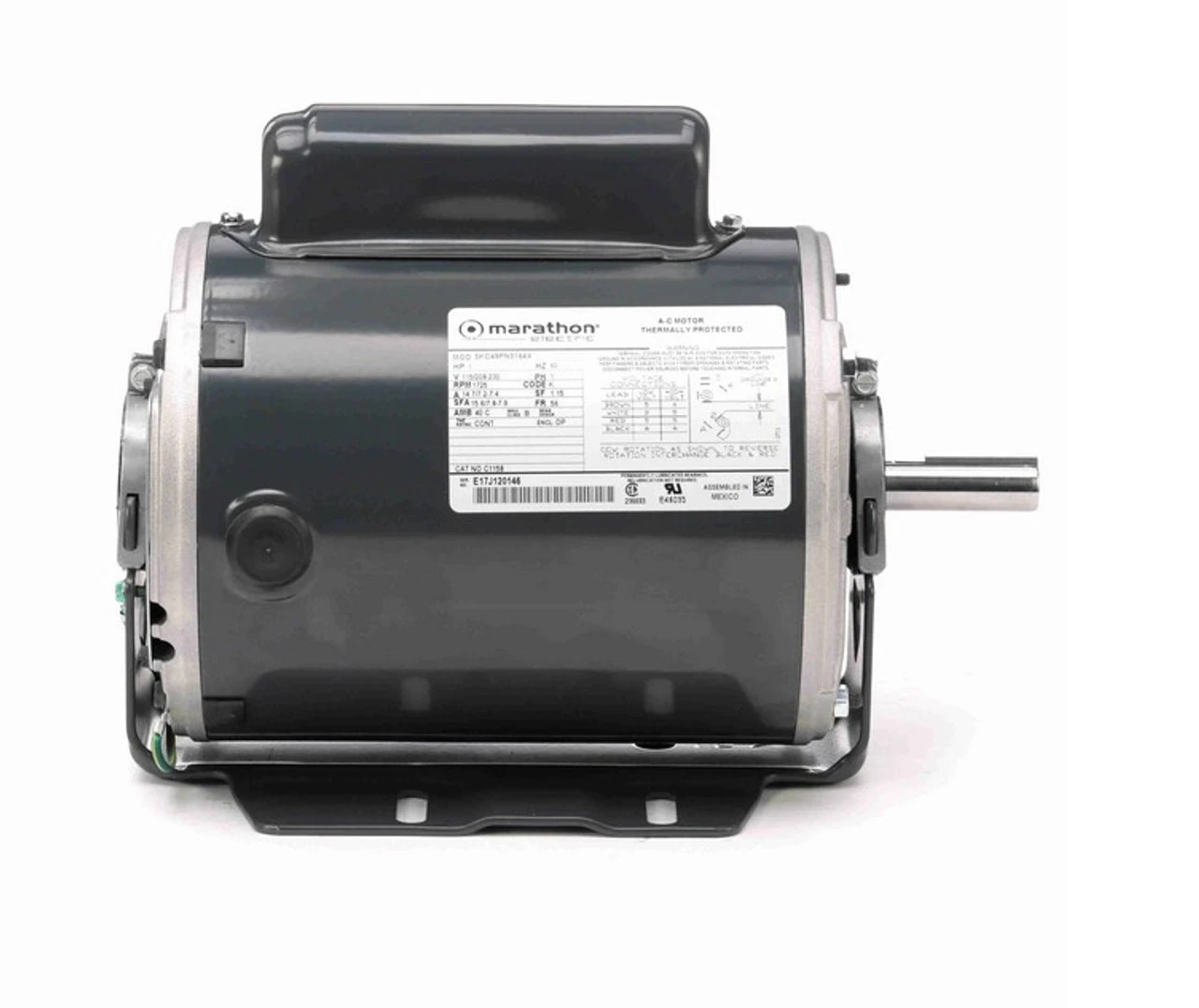

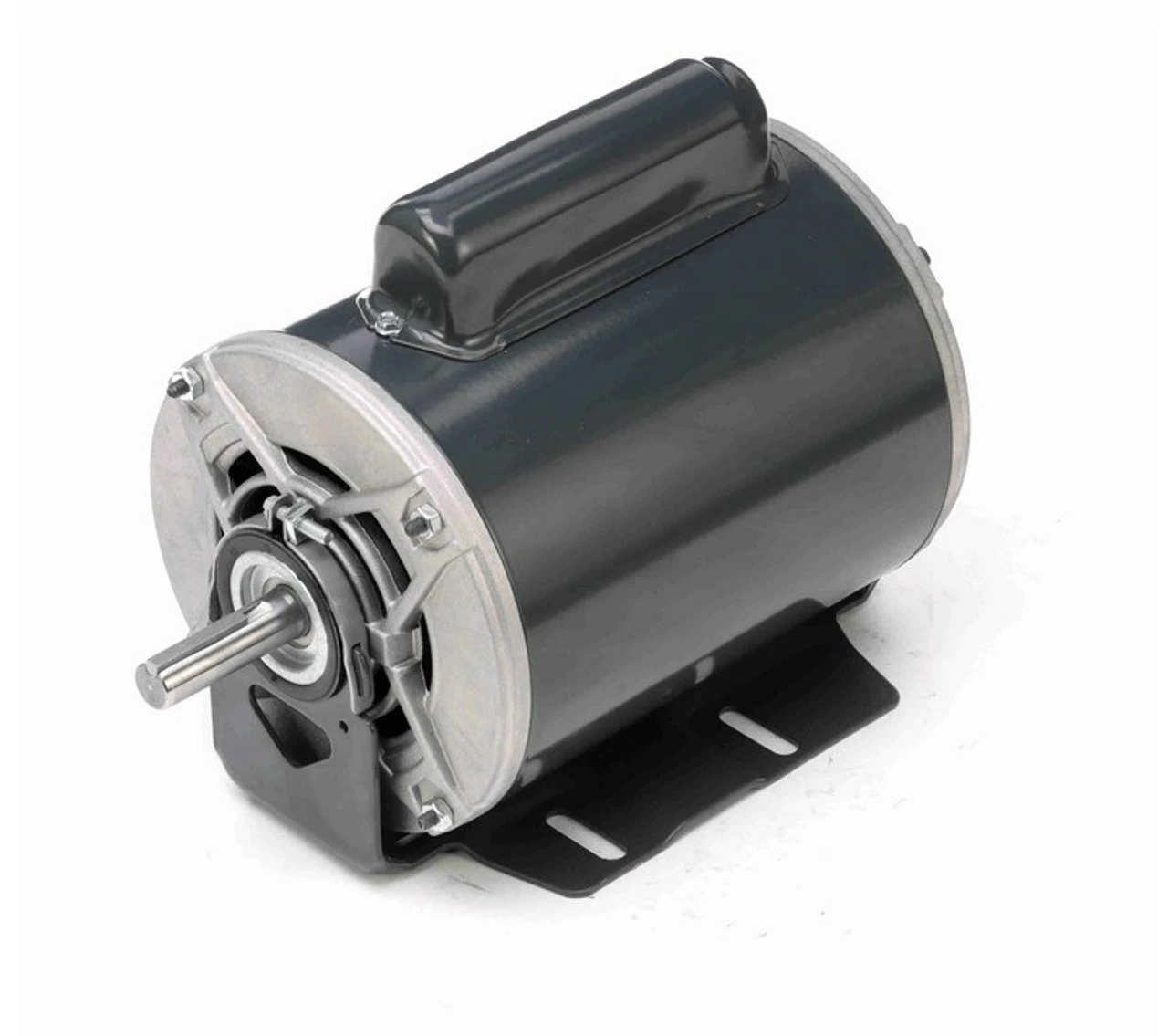

C1158 Marathon | 1 Hp 115/208-230V 1725 RPM ODP 56 Frame Cap Start Resilient Base Motor (Dayton 4YU30)
Original price was: $359.95.$98.99Current price is: $98.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
Marathon Electric Motor
- 1 hp 1725 RPM, 13.7/7.4-7.2 amps
- 115/208-230 Volts 60 Hz, Capacitor Start
- Single Speed
- NEMA 56 Frame
- Keyed Shaft 1 7/8″ x 5/8″ Diameter
- Service Factor = 1.15, Thermal Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- Shaft may be vertical or horizontal
- ODP = Open Drip Proof.
- 1 Year Manufacture Warranty
Direct Replacement for Dayton 4YU30 Motor
Replacement Motor for 1MBE9, 3ATT9, 3ATU7, 3GY70, 5PV07 Dayton Ventilator
Marathon Model: 5KC49PN0164X, E281
Replaces Century/AO Smith C692, C692V1, Dayton 4LY91
Replaces Leeson 110007.00
