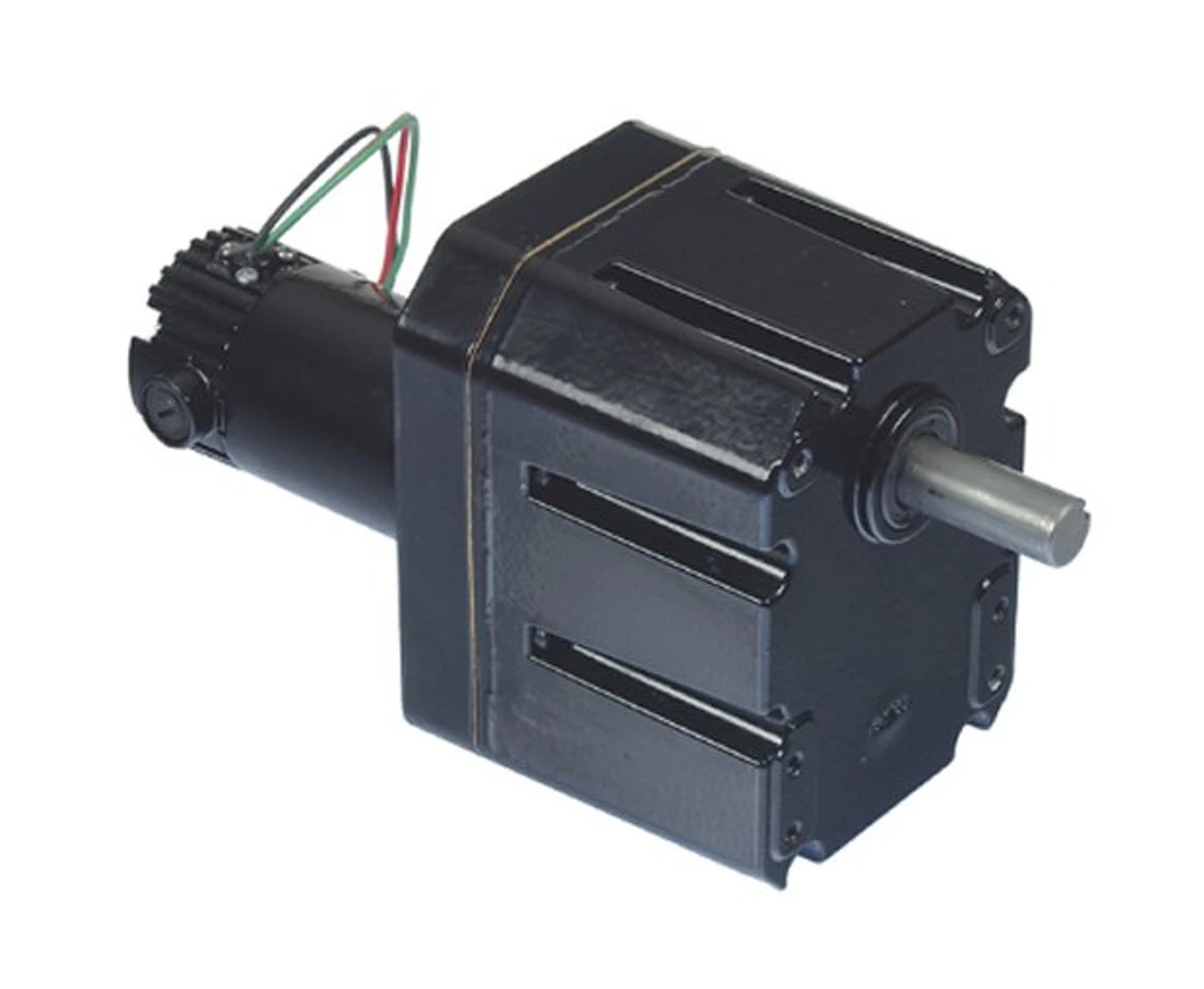

Bison 011-656-0138 Gear Motor 1/6 Hp 13 RPM 90VDC

Original price was: $314.00.Current price is: $95.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

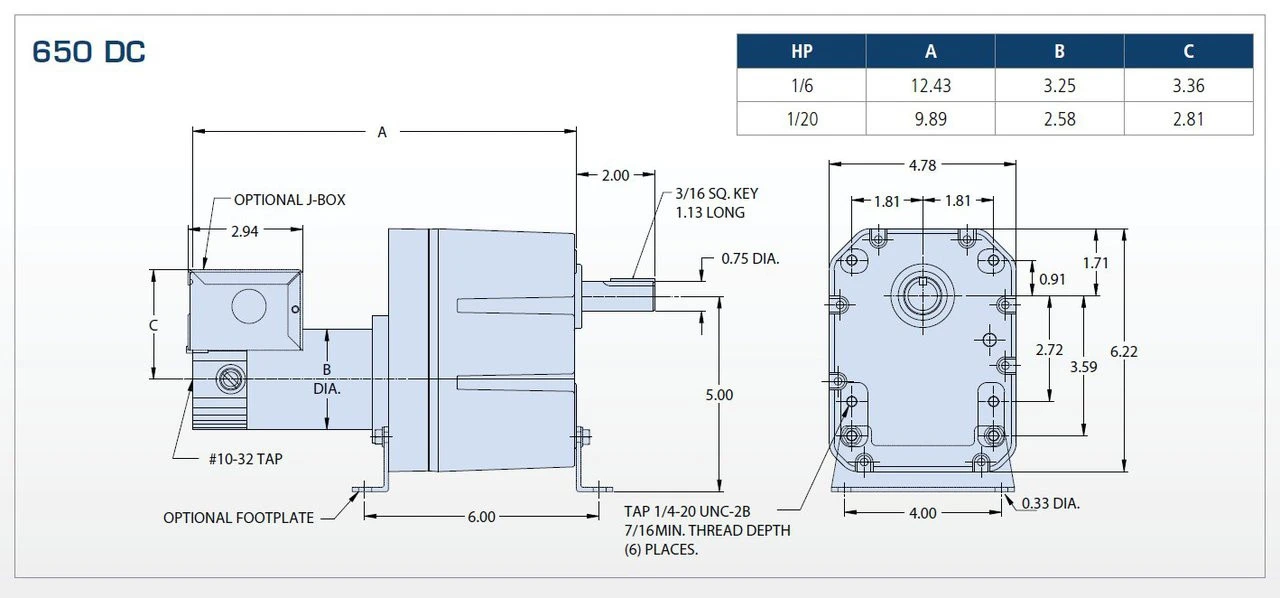

650 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 710 inch pounds; Over Hung lbs. = 900; 4 Stages
Rotation = Reversible
1/6 hp 13 RPM, 1.7 amps, 90 Volts DC
TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-300-0000 Junction Box. Base mounting bracket P125-650-5000. Permanent Magnet motor, Insulation Class F; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 2H590. Can use with Leeson speed control 174307, 174308.
