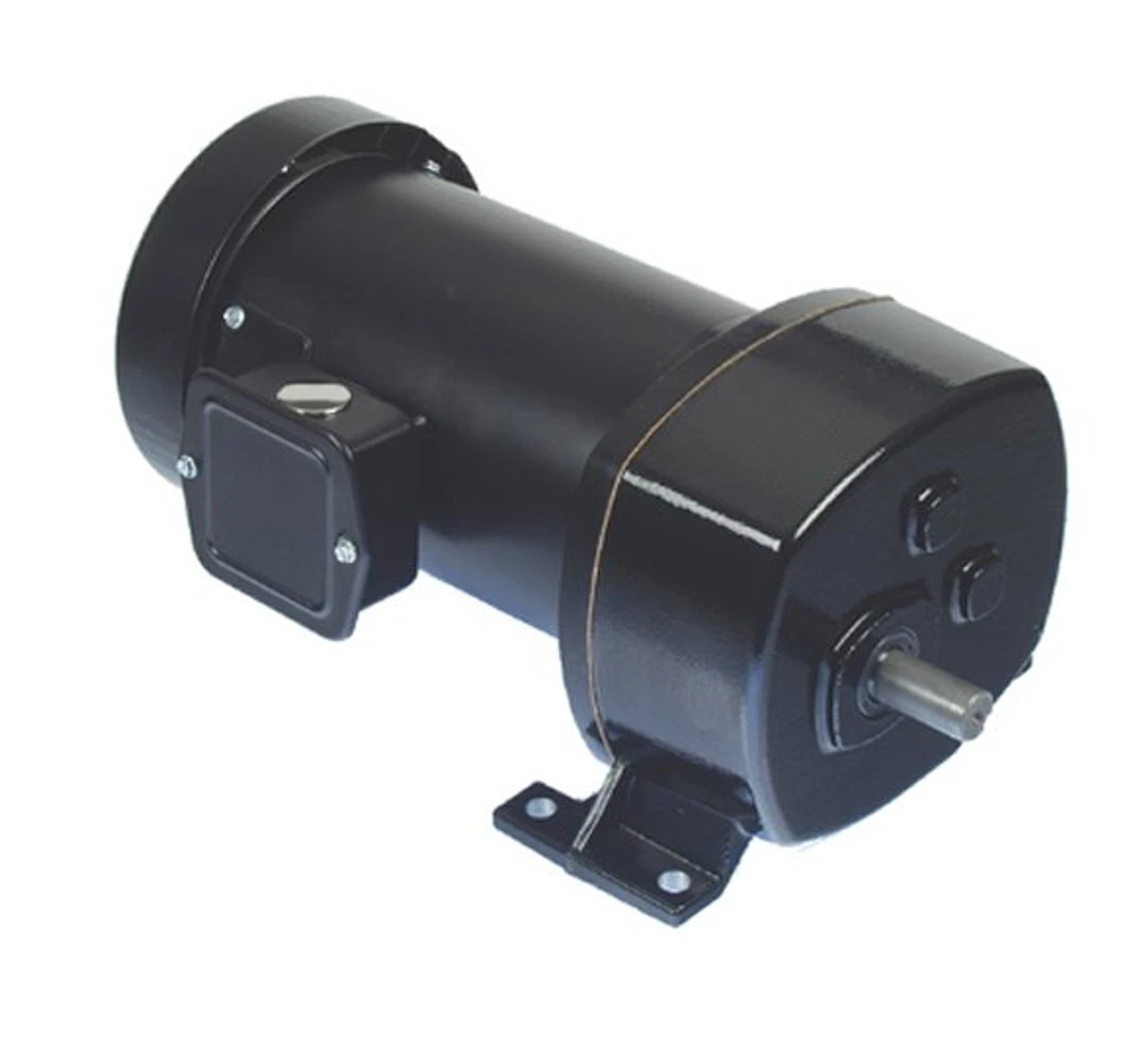

Bison 011-483-4131 Gear Motor 1/4 Hp 13 RPM 90VDC

Original price was: $357.00.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

483 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 960 inch pounds; Over Hung lbs. = 797
Rotation = Reversible
1/4 hp 13 RPM, 2.65 amps, 90 Volts DC
TENV Enclosure, Keyed Shaft, Ball Bearings

Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 6Z407. Can use with Leeson speed control 174307, 174308.
