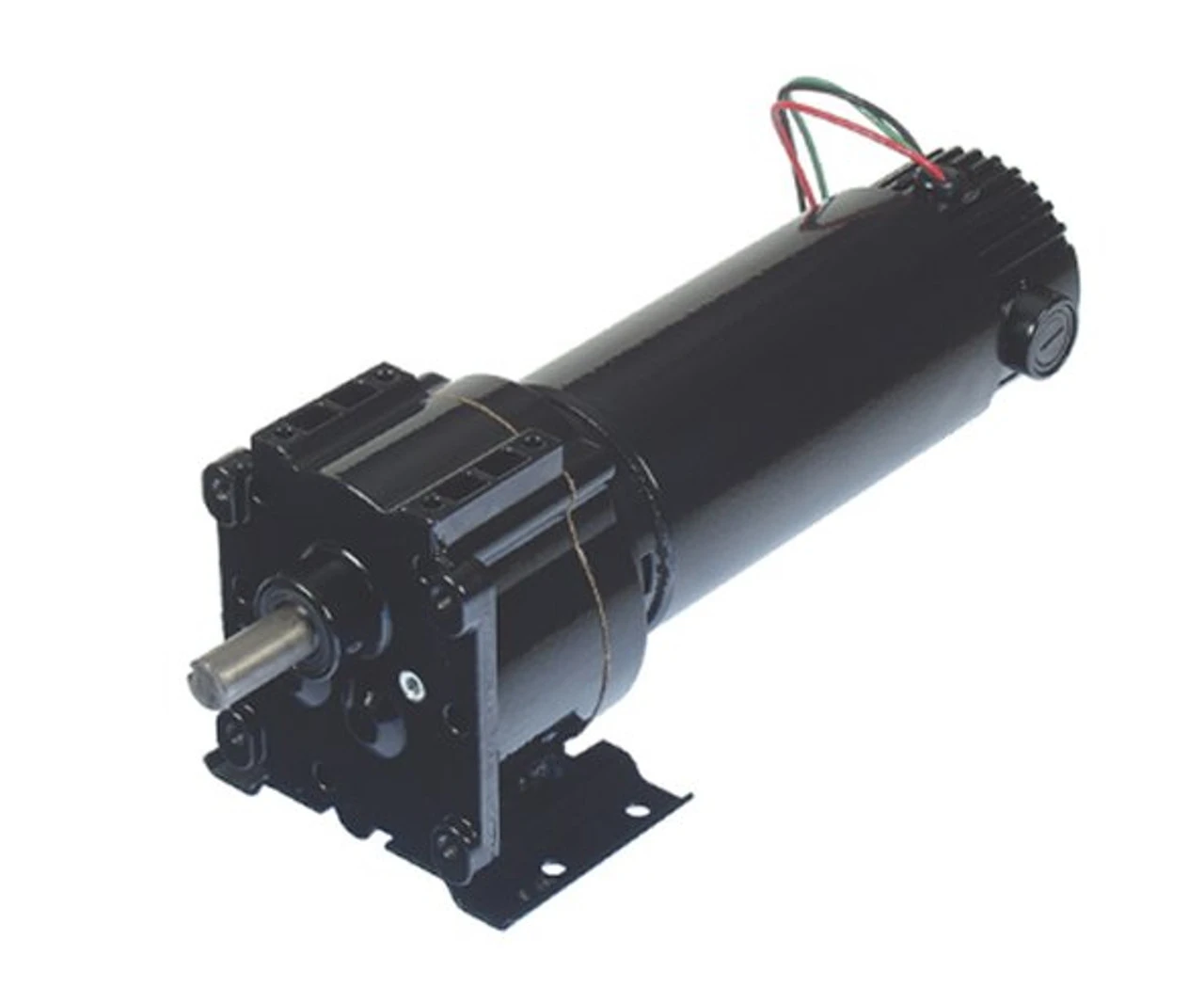

Bison 011-348-5080 Gear Motor 1/8 Hp 22 RPM 24VDC

Original price was: $379.00.Current price is: $97.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

348 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 300 inch pounds
Over Hung lbs. = 500
3 Stage
Rotation = Reversible
Rear tapped hole in shaft for encoder mount.
1/8 hp 22 RPM, 4.5 amps, 24 Volts DC
TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9121 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 4ZJ46. Can use with Leeson speed control 175290.
