Bison 011-336-4011 Gear Motor 1/4 Hp 170 RPM 90/130VDC

Original price was: $364.00.Current price is: $98.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

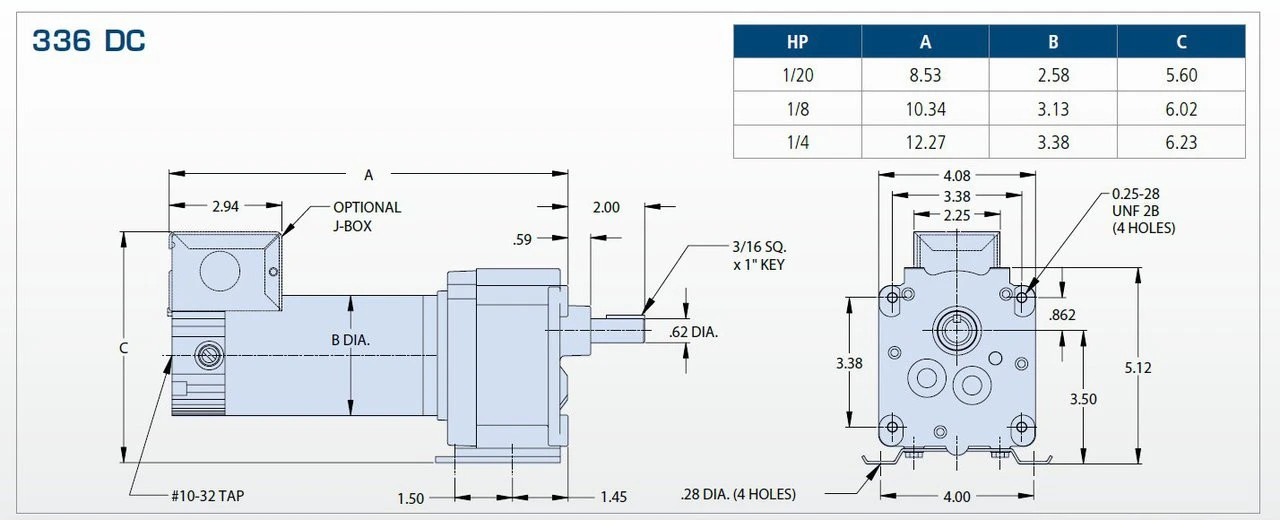

336 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 90 inch pounds
Over Hung lbs. = 206
2 Stage
Rotation = Reversible
1/4 hp 170 RPM, 2.51 amps, 90 Volts DC
TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-300-0000 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 2H573. Can use with Leeson speed control 174307, 174308. Bison Speed Control Model 170-113-003
