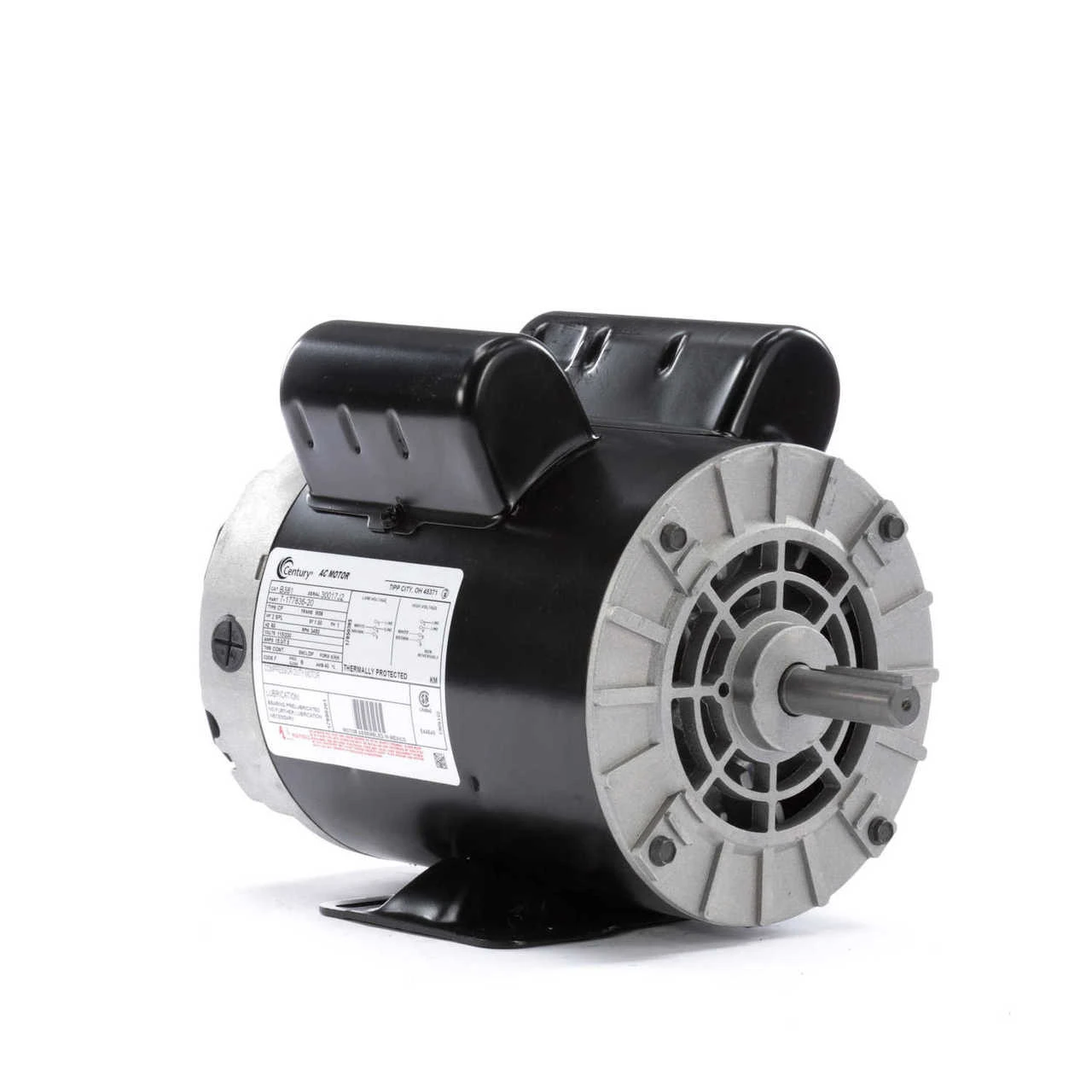

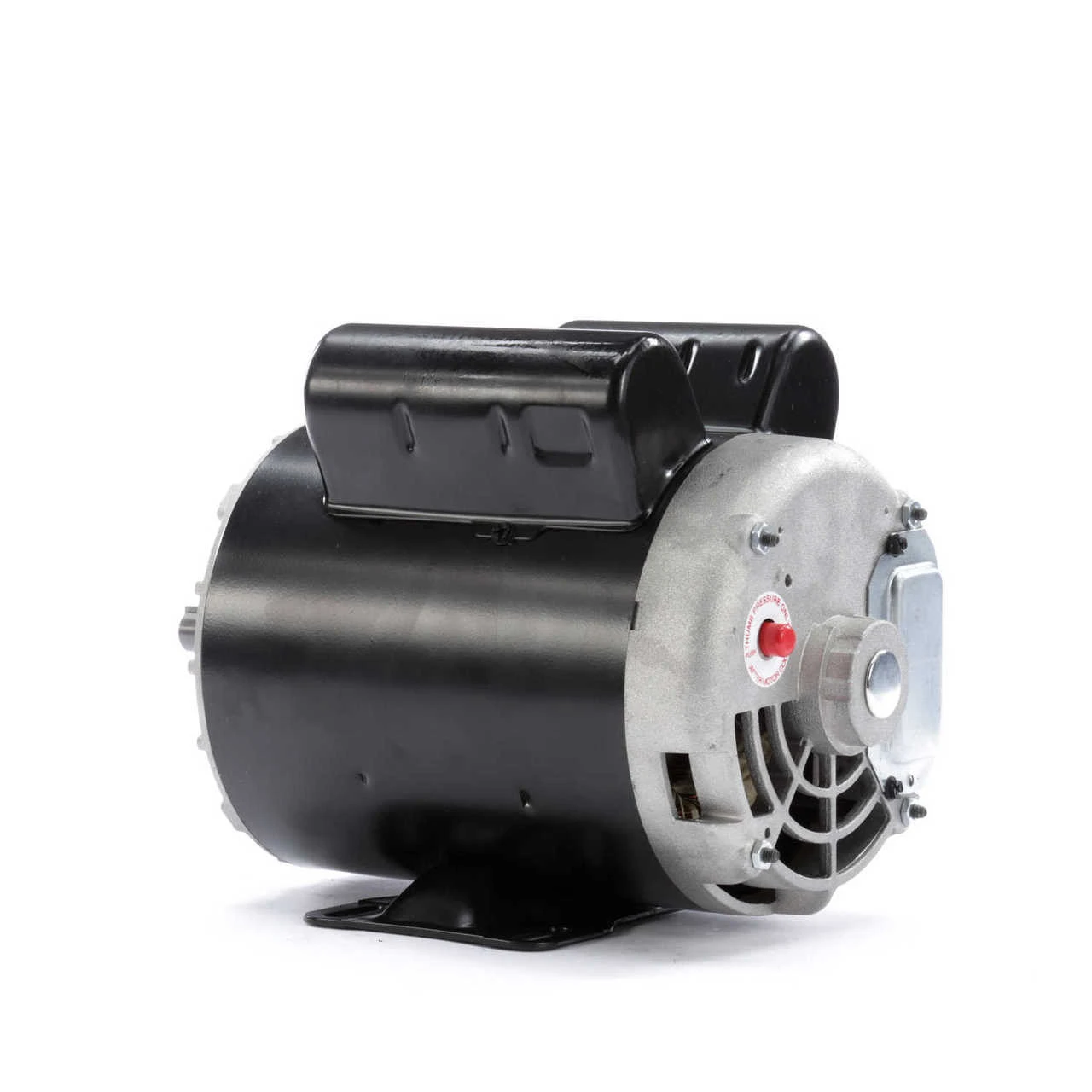

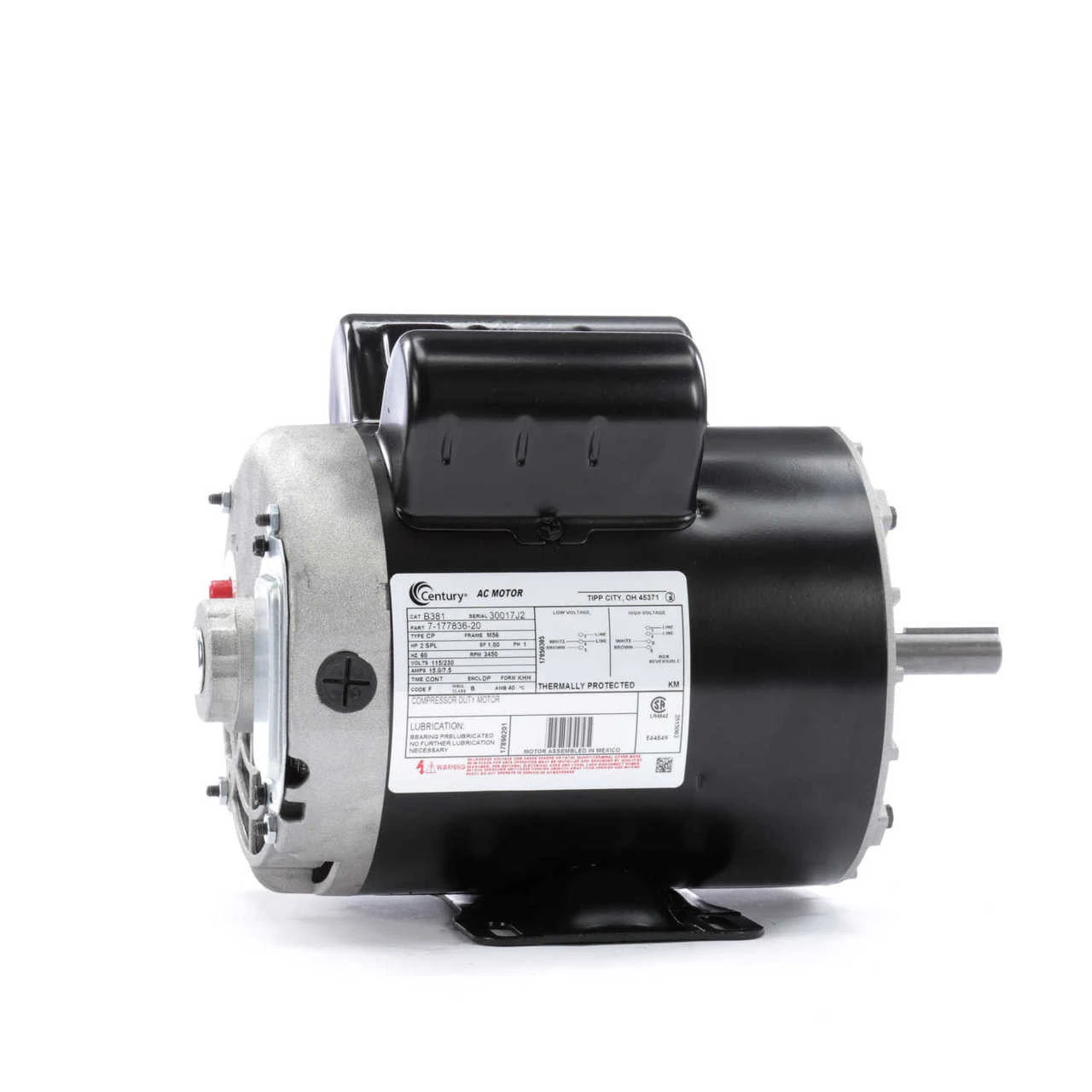

B381 Century 2 HP SPL 3450 RPM M56 Frame 115/230V Air Compressor Motor – Century #B381

Original price was: $310.50.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

CENTURY AIR COMPRESSOR 2 SPL HP REPLACEMENT MOTOR

2 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz.
Open Drip Proof – Ball Bearings – Service Factor 1.0
Non-Reversible – CCW Rotation facing the shaft
M56 Frame; NEMA 56 Frame – Flat Rigid base mount
Shaft: 5/8″ diameter x 1 7/8″

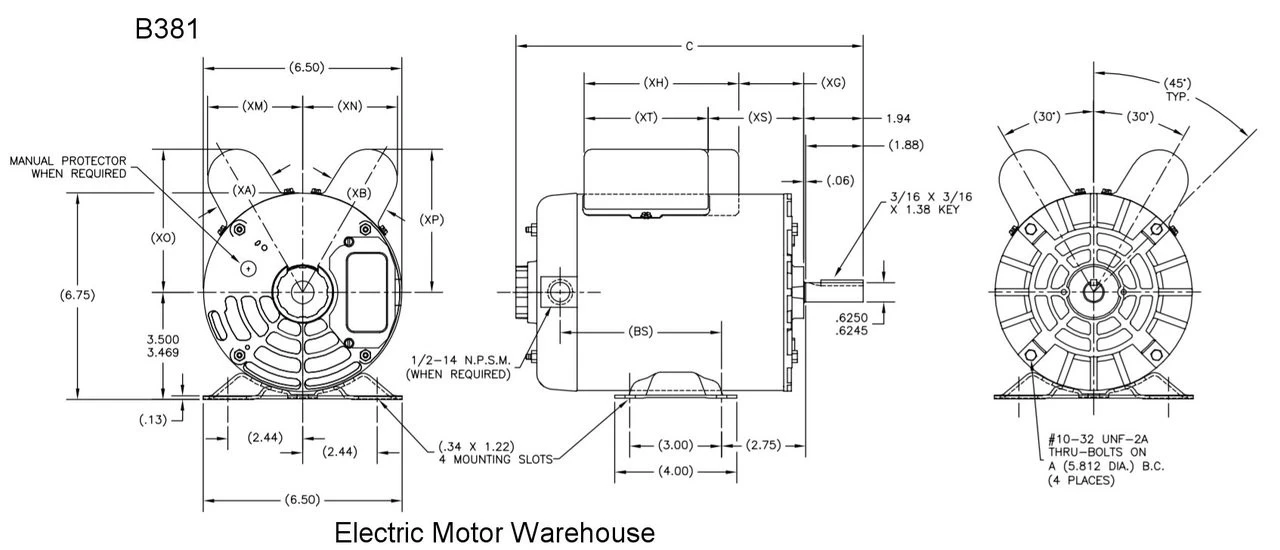

Overall motor length 11.34″

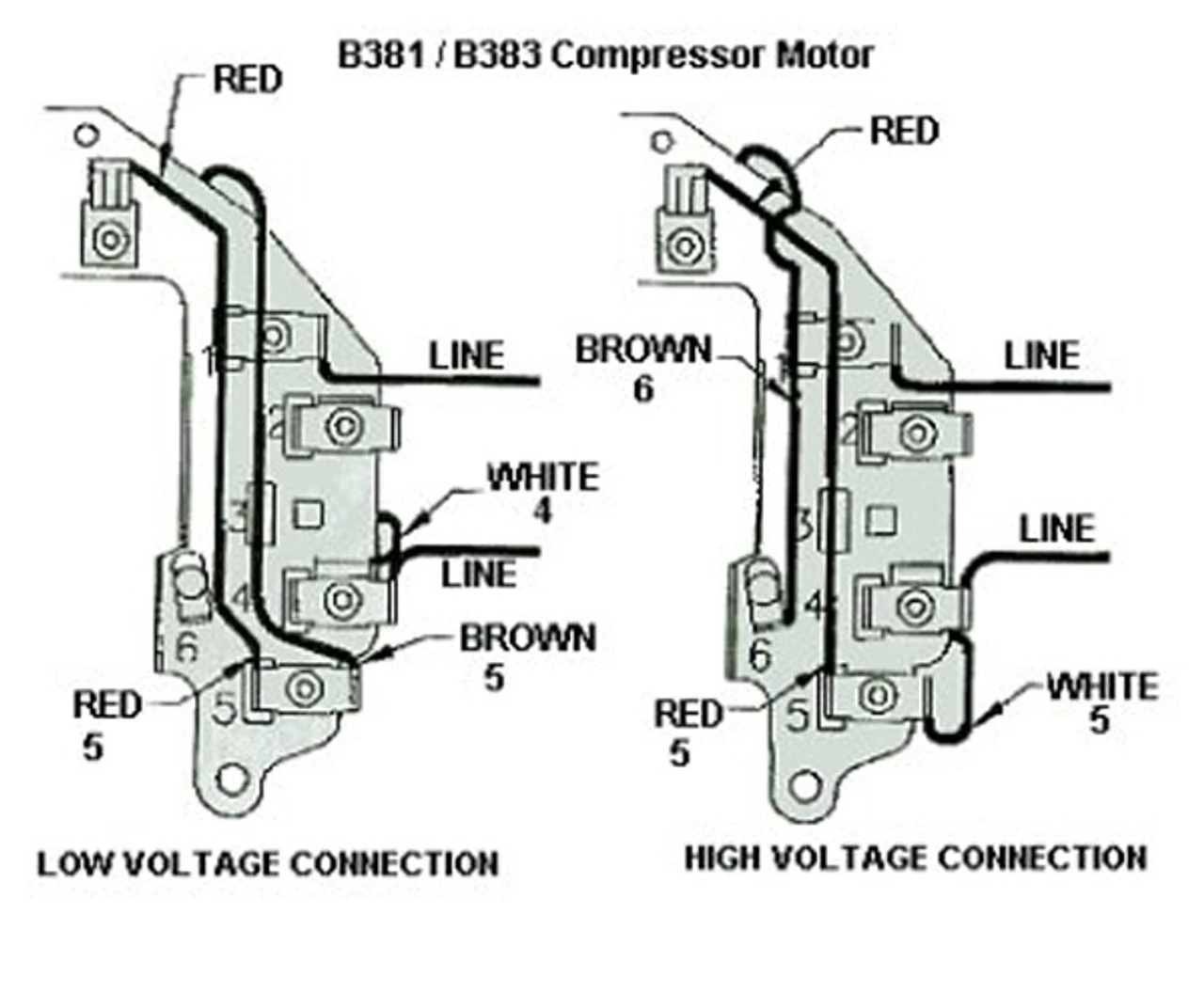

This replacement compressor motor is commonly used on the small “home/shop” air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3″ x 5″ bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.

Century Part No. 7-177836-20, 177836
Dayton 48Y358
